Waveshare Motor Control Shield

SKU: rz24323361
In Stock

699.00

  1. Power Supply:5 V
  2. Output Current:800mA
  3. Dimension:60x56x20 mm



In Stock
This item is low in stock.

Item(s) left: 2

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

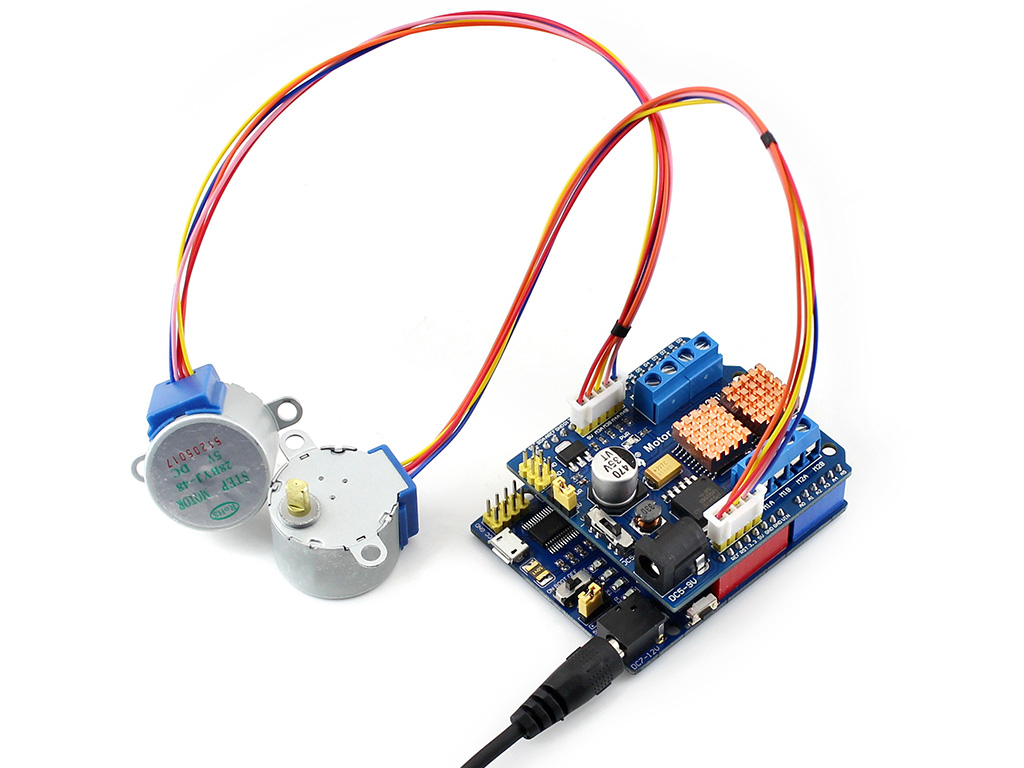

This is a Waveshare Motor Control Shield. The module is a motor control expansion board of Arduino/NUCLEO. Onboard dual H-bridge driver chip D, allows driving 4 DC motors or 2 stepping motors at one time.

What’s on Board:

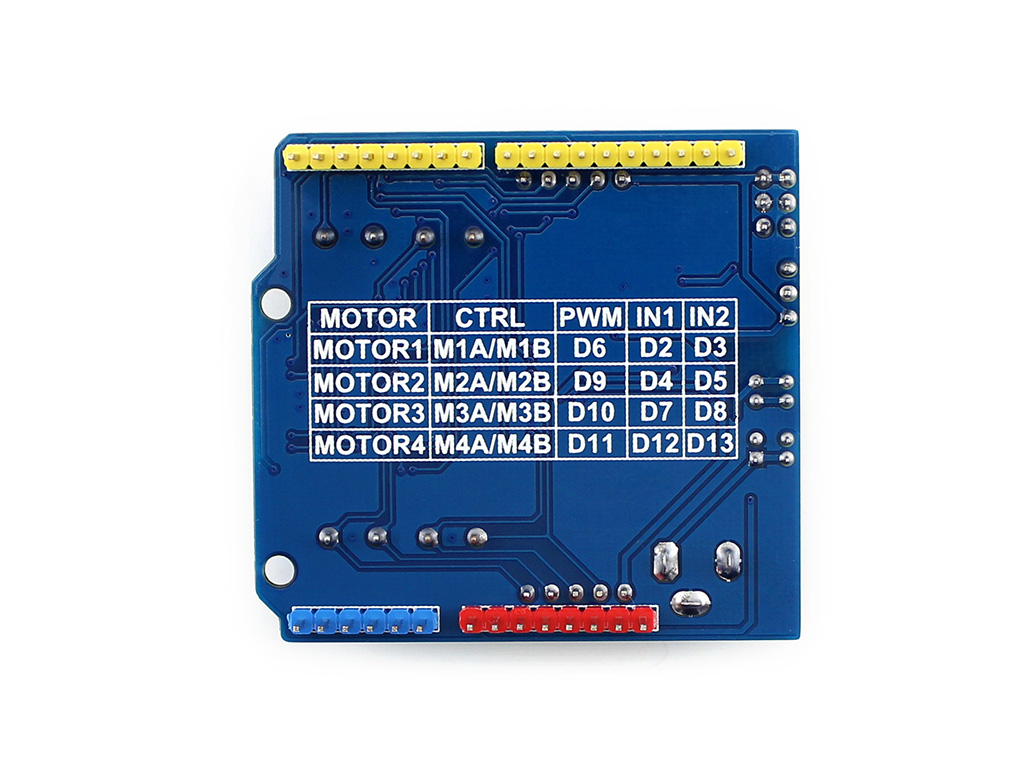

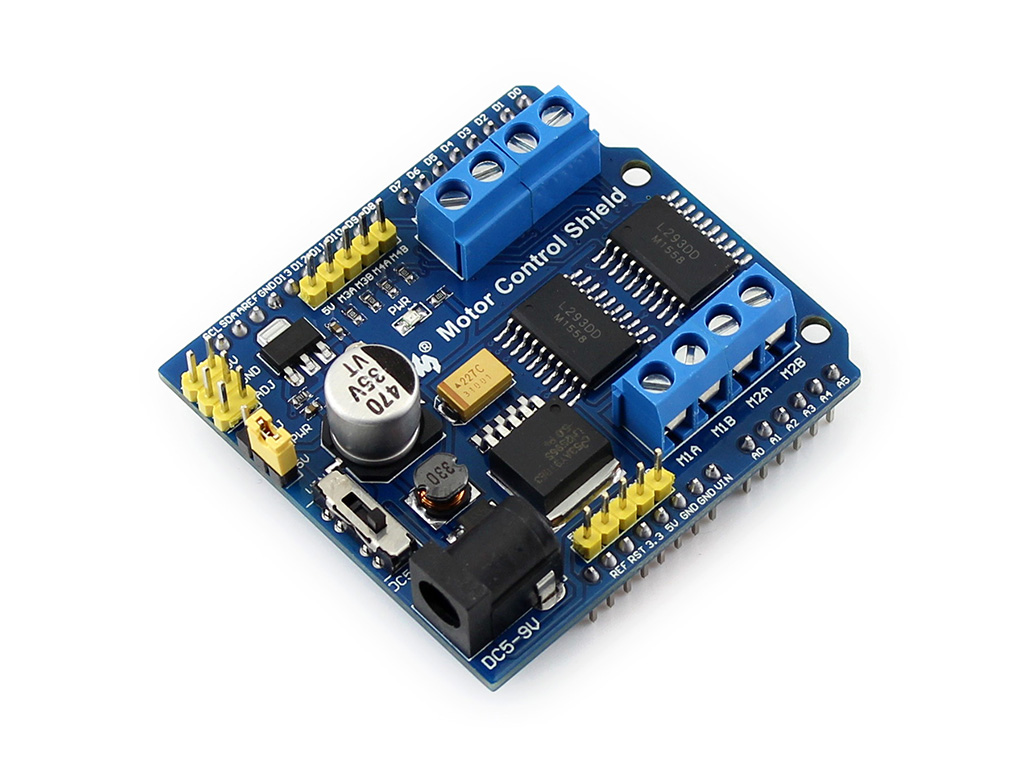

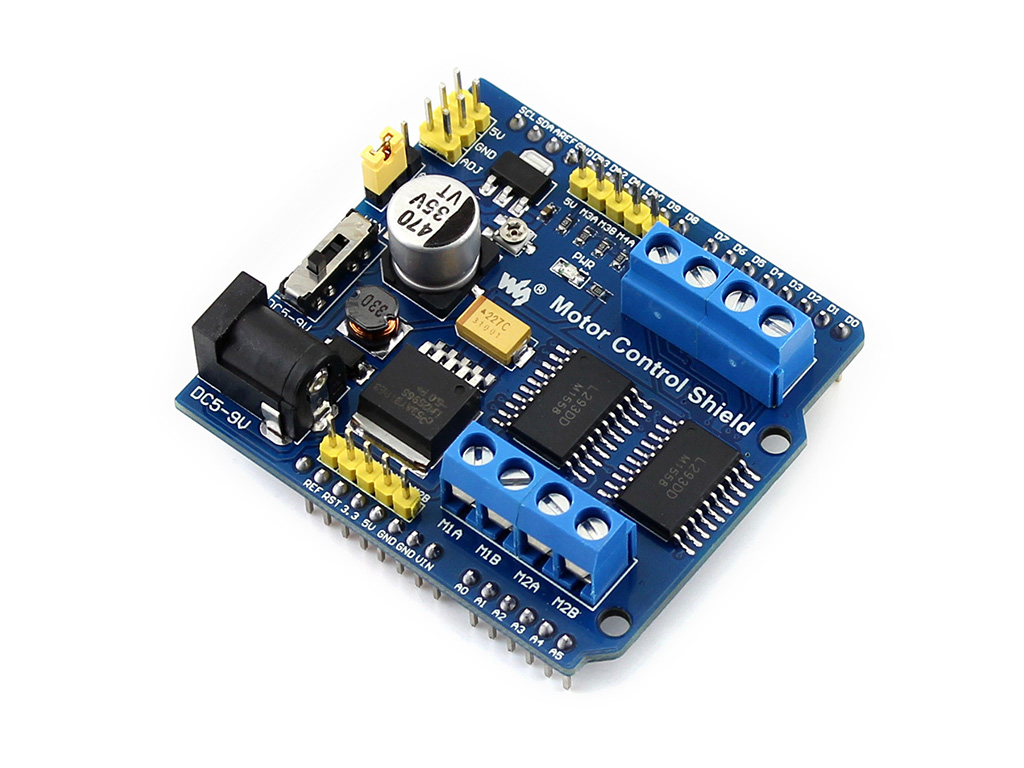

Waveshare Motor Control Shield

  1. External power supply jack
  2. Power input/output pin header
  3. Stepping motor interface
  4. DC motor interface
  5. M_PWR configuration : connects M_PWR (motor power) to 5V or ADJ
  6. Power selection switch
  7. Power indicator
  8. AMS1117-ADJ: onboard linear regulator with adjustable output
  9. Adjustable potentiometer: for adjusting the output voltage of ADJ (adjustable motor power)
  10. L293D: dual H-bridge driver
  11. LM2596-5.0: onboard linear switching regulator with 5V output

Features:

  1. Could drive 4 DC motors or 2 stepping motors at one time
  2. Configurable motor power supply via onboard jumper
  3. Wen using 5V motor power supply: drives four 5V DC motors at one time
  4. When using adjustable motor power supply: drives two 1.25V-6.45V DC motors at
  5. One time (9V external power supply is required)
  6. Onboard dual H-bridge driver D x 2
  7. Each D can drive 2 DC motors or 1 stepping motor at one time
  8. Totally 4 channel H-bridge, with 600mA output current (peak 1.2A) per single bridge ESD protection

Specifications:

L293D Specifications:
  1. Supply voltage:4.5~7 V
  2. Logic supply current :
  • All outputs at a high level 13~ 22 mA
  •  All outputs at a low level 35~60 mA
  • All outputs at high impedance 8~24 mA
LM2596-5.0 Specifications:
  1. Maximum  Supply Voltage:45 V
  2. Output Voltage Range:1.23~37V
  3. Output Current:3 A
  4. Clock Frequency:-60~150 Khz
  5. Operating Temperature Range:-40 ~125 V
AMS1117-ADJ Specifications:
  1. Voltage Range: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
  2. Output Current : 800mA
  3. Line Regulation: 0.2% Max
  4. Load Regulation: 0.4% Max
  5. Operating Temperature Range:0~125 °C

Package Includes:

1 x Waveshare Motor Control Shield

Additional information

Length (mm)

60

Width (mm)

56

Height (mm)

20

Weight (gm)

26
