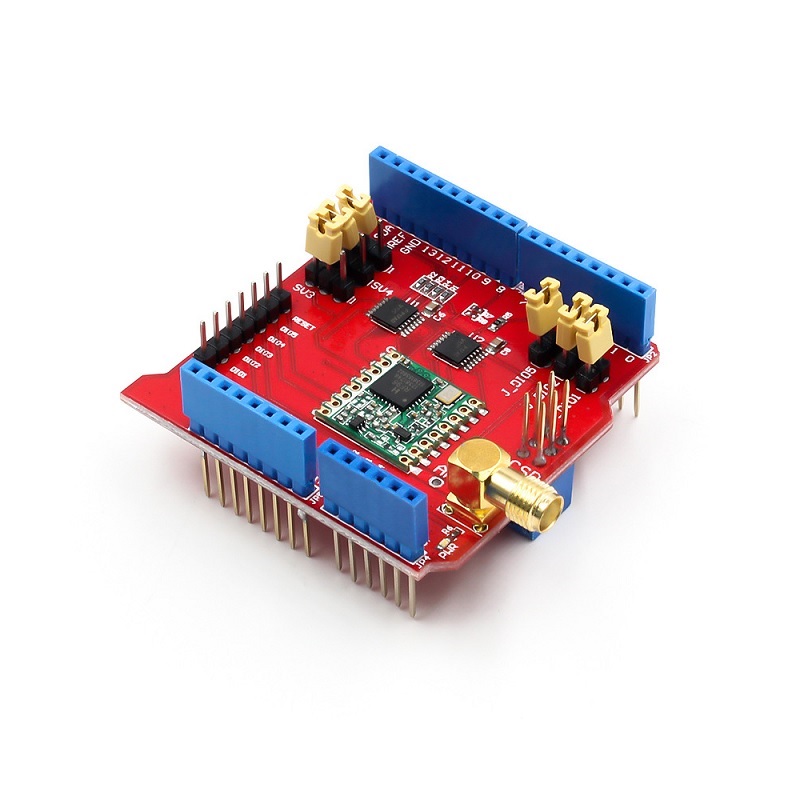

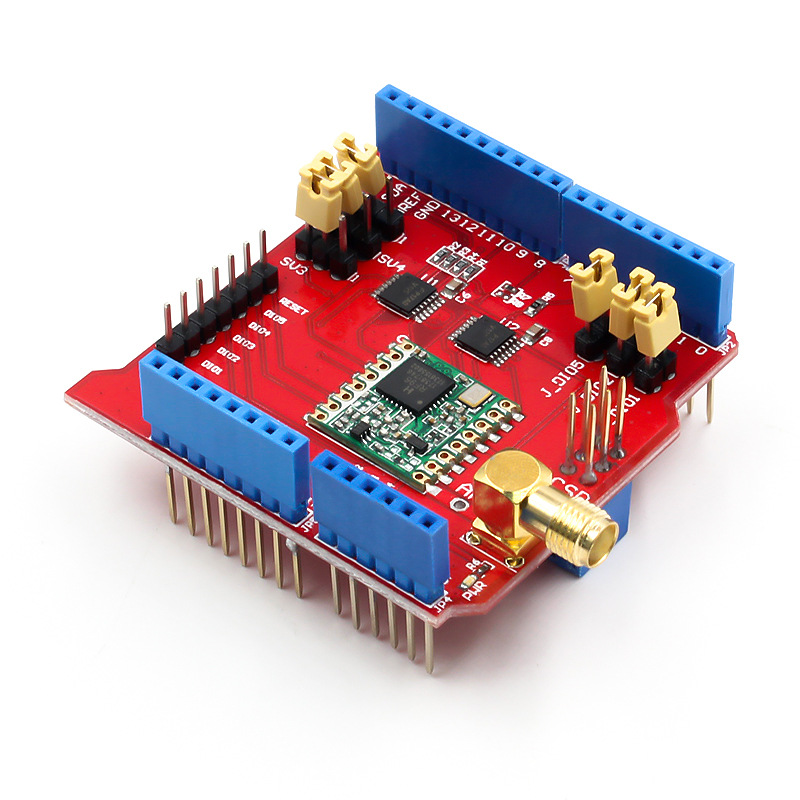

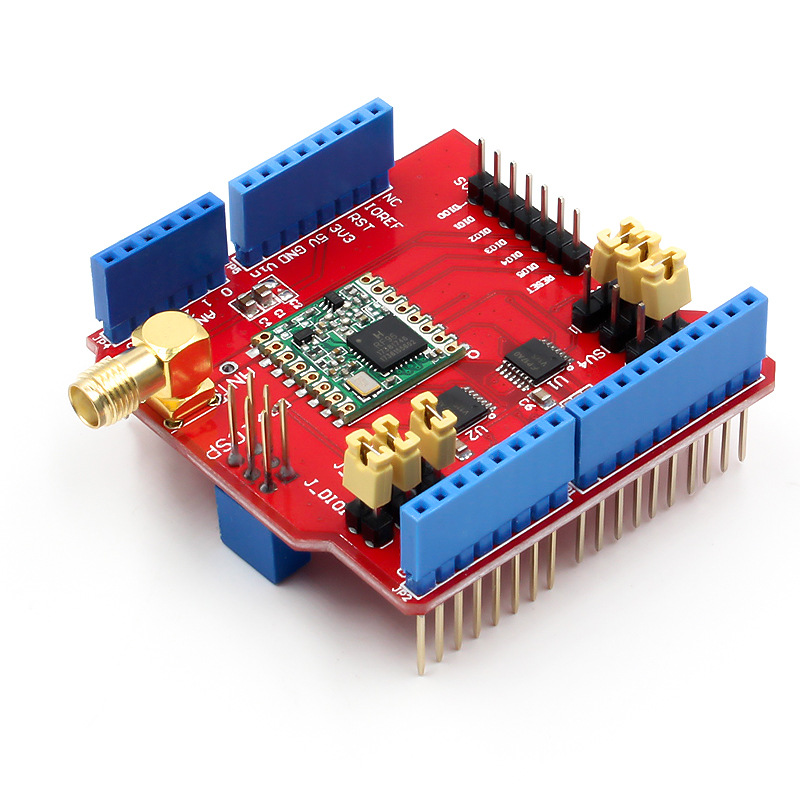

Wireless Transmitter 915Mhz, Lora Shield for Leonardo,, UNO, Mega2560,, Duemilanove, Due
Wireless Transmitter 915Mhz, Lora Shield for Leonardo,, UNO, Mega2560,, Duemilanove, Due
Wireless Transmitter 915Mhz, Lora Shield for Leonardo,, UNO, Mega2560,, Duemilanove, Due
Wireless Transmitter 915Mhz, Lora Shield for Leonardo,, UNO, Mega2560,, Duemilanove, Due
Wireless Transmitter 915Mhz, Lora Shield for Leonardo,, UNO, Mega2560,, Duemilanove, Due
Wireless Transmitter 915Mhz, Lora Shield for Leonardo,, UNO, Mega2560,, Duemilanove, Due

Wireless Transmitter 915Mhz, Lora Shield for Leonardo,, UNO, Mega2560,, Duemilanove, Due

SKU: rz24319895
In Stock

₹1,727.00

  1. 168 dB maximum link budget.
  2. +20 dBm – 100 mW constant RF output vs.
  3. +14 dBm high-efficiency PA.
  4. Programmable bit rate up to 300 kbps.
  5. High sensitivity: down to -148 dBm.
  6. Bullet-proof front end: IIP3 = -12.5 dBm.
  7. Excellent blocking immunity.
  8. Low RX current of 10.3 mA, 200 nA register retention.
  9. Fully integrated synthesizer with a resolution of 61 Hz.
  10. FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  11. Built-in bit synchronizer for clock recovery.
  12. Preamble detection.
  13. 127 dB Dynamic Range RSSI.
Order on WhatsApp
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: ,

Description

Lora Shield is a long-range transceiver on the Arduino shield form factor and is based on an Open source library. The Lora Shield allows the user to send data and reach extremely long ranges at low data rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

The Lora Shield based on RFM95W/RFM98W targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.

Using Hope RF’s patented LoRaTM modulation technique the Lora Shield can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robozarstness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The Lora Shield deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Note: Images shown may differ from the actual product in terms of PCB and Connector colour

Features:

  1. Compatible with 3.3v or 5v I/O Arduino Board.

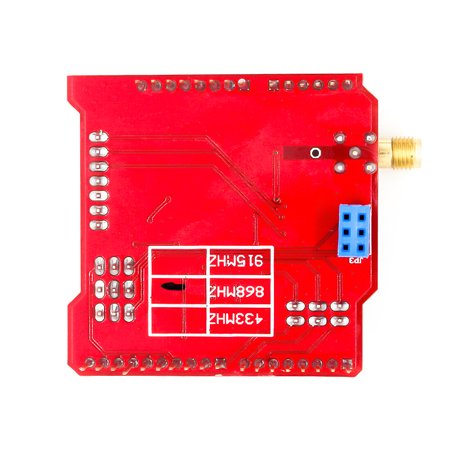

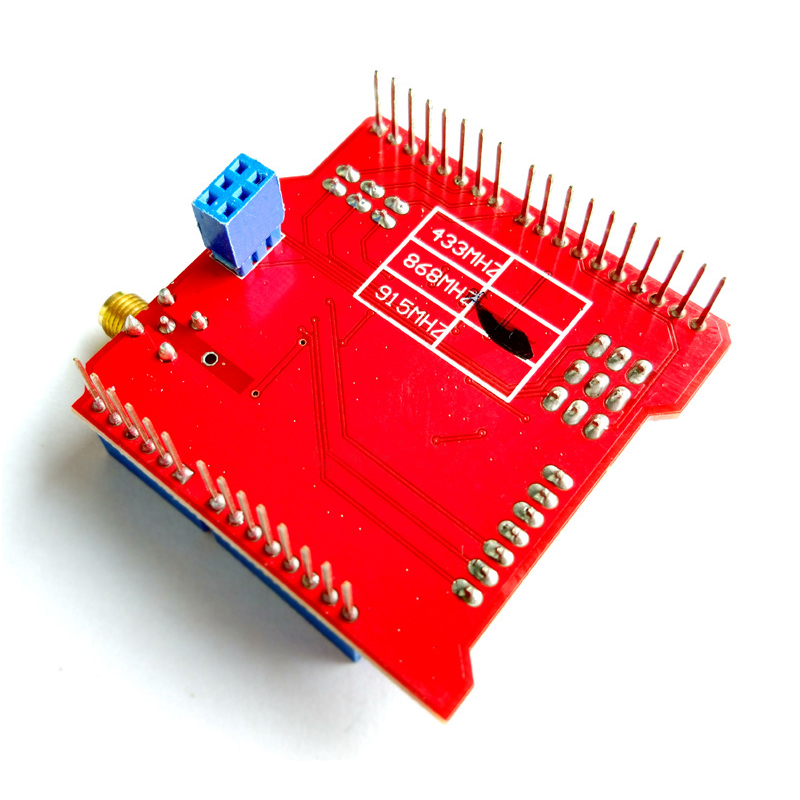

  2. Frequency Band: 915 MHZ (Pre-configure in factory)
  3. Low power consumption
  4. Compatible with Arduino Leonardo, Uno, Mega2560, DUE
  5. External Antenna via SMA Jack
  6. Automatic RF Sense and CAD with ultra-fast AFC.
  7. Packet engine up to 256 bytes with CRC.
  8. Built-in temperature sensor and low battery indicator.

Package Includes:

1 x Wireless Transmitter 915Mhz Lora Shield for Arduino
