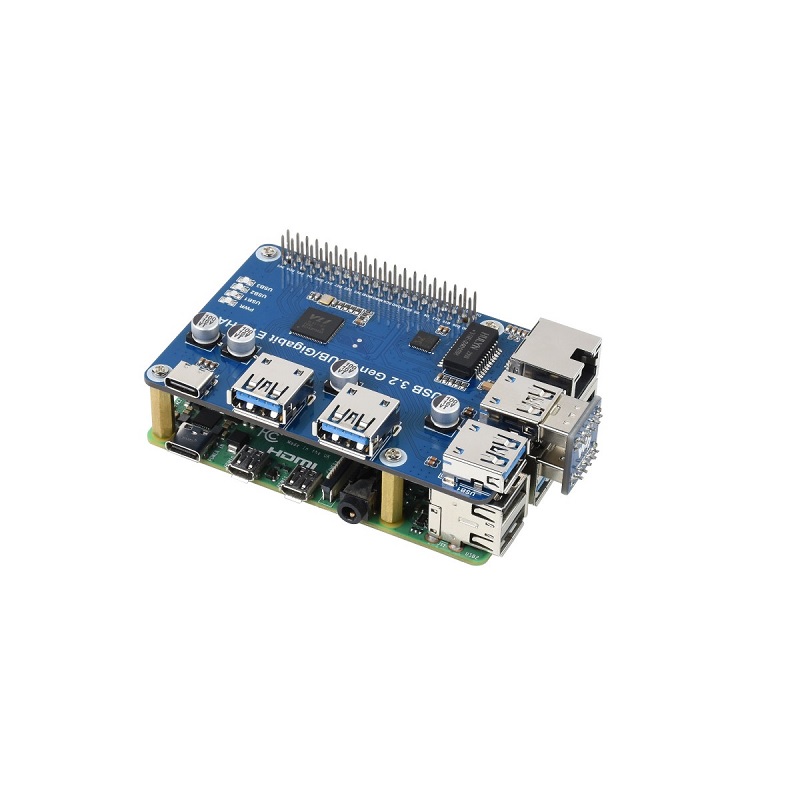

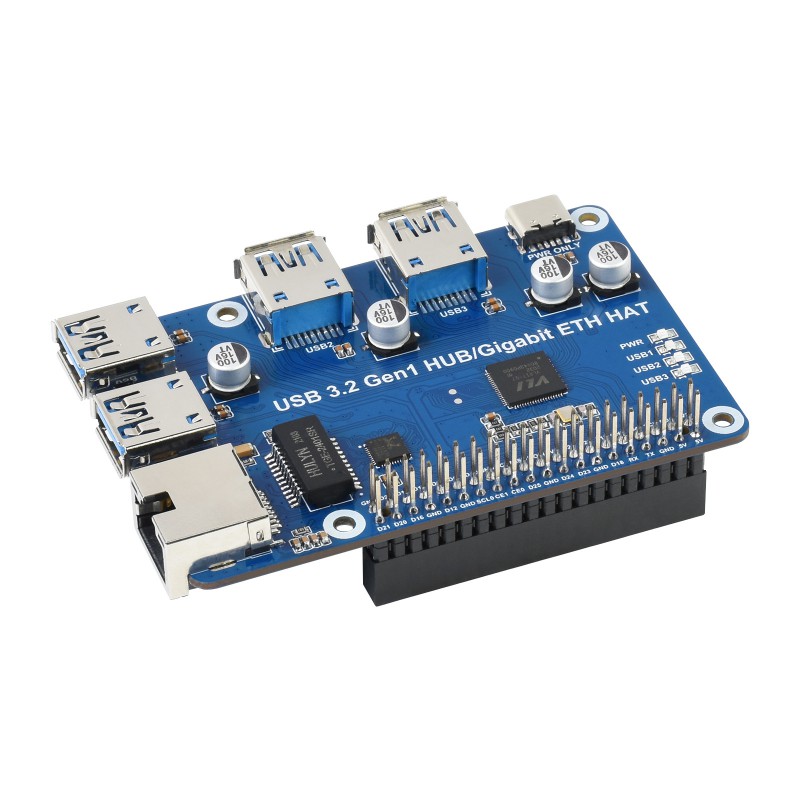

Waveshare USB 3.2 Gen1 And Gigabit Ethernet HUB HAT for Raspberry Pi, 3x USB, 1x Gigabit ETH, Driver-Free

19 People watching this product now!

SKU: rz24320704 Category: Raspberry Pi Hats

Description

This is a driver-free 3 ports USB 3.2 Gen1 Hub HAT for Raspberry Pi, also with a Gigabit Ethernet port, provides more USB/network capability to your Pi, making it easy to connect more USB devices and network devices. The HAT features a standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports are able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.

Note: Raspberry Pi is not included in this kit, You have to buy it Separately

Features:

3x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
1x Gigabit Ethernet port, 1000M/100M/10M compatible
Onboard external USB-C 5V DC power port, ensures a more stable power supply
1x power indicator and 3x USB port indicators, easy to check the operating status
Driver-free, plug and play, compatible with OS including Windows, Mac OS, Linux, and Android
Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi versions as well
Comes with development resources and manual

Package Includes:

1 x Waveshare USB 3.2 Gen1 And Gigabit Ethernet HUB HAT for Raspberry Pi, 3x USB, 1x Gigabit ETH, Driver-Free
