₹6,125.50 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹5,819.23 (Including tax) |
11 - 20 | 8% | ₹5,635.45 (Including tax) |
21 - 40 | 10% | ₹5,512.95 (Including tax) |
41 - 100 | 12% | ₹5,390.45 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders
Winsen Electronics, as a professional gas sensor manufacturer, produce carbon monoxide sensor, industrial CO sensor, using fuel cell / electrochemical working principle.

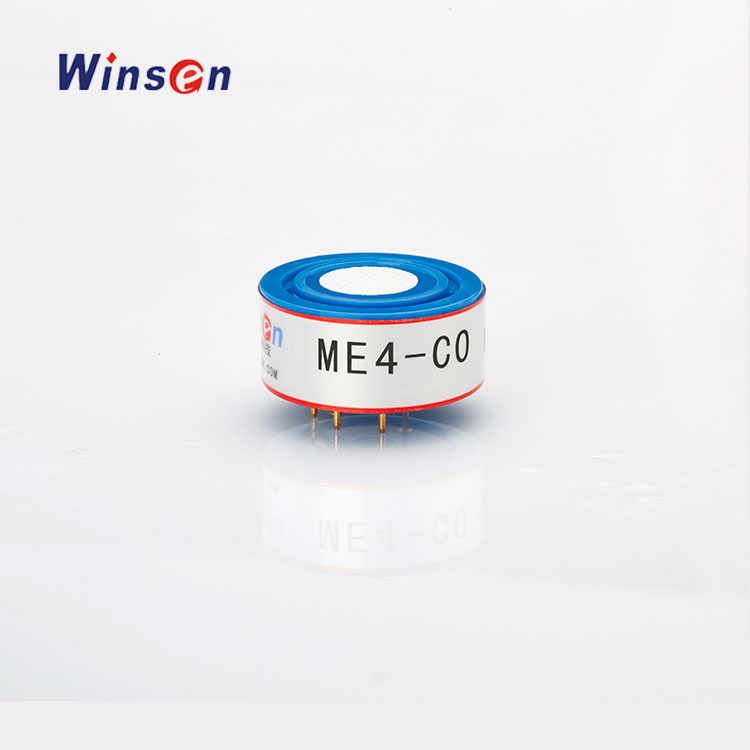

ME4-CO carbon monoxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with carbon monoxide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of carbon monoxide. So the concentration of the target gas could be got by measuring the value of current.
It is used for carbon monoxide detection in industrial occasions such as petroleum and petrochemical occasions, metallurgy, mine and environmental protection.
1 x Winsen ME4-CO Electrochemical Carbon Monoxide sensor
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Particle Measurement Range |
0.3~1.0μm; 1.0~2.5μm; 2.5~10μm |
---|---|
Particle Counting Efficiency |
50%@0.3μm ,98%@>=0.5μm |
Resolution of Particle Mass Concentration |
1μg/mᶟ |
Temperature Measurement Range |
0~99℃ |
Temperature Measurement Resolution |
0.1℃ |
Humidity Measurement Range |
0~99% |
Humidity Measurement Resolution |
0.1% |
Humidity Measurement Accuracy |
±2% |
Single Response Time |
<1s |
Comprehensive Response Time |
≤10s |
DC Supply Voltage |
Typ: 5V Min: 4.5V Max: 5.5V |
Working Current |
≤100mA |
Standby Current |
≤200mA |
Data Interface Level |
L<0.8V ,H>2.7V ,maximum level voltage 3.3V |
Working Temperature Range |
10~50℃ |
Working Humidity Range |
0~99% |
Storage Temperature Range |
40~80℃ |
Out of stock
Detection Gas |
Oxygen concentration |
---|---|
Detection range |
0~100% |
Working Pressure Range |
0.5~2.0Bar |
Working Voltage |
3.3~5.5V DC |
Output Signal |
I2C ,UART (0~3V) ,analog voltage |
Lifespan |
>2 years (in air) |
Working Humidity Range |
0-99% RH (non-condensing) |
Working Temperature Range (°C) |
-20°C ~ +50°C |
Product Dimensions |
32mm x 27mm/1.26 x 1.06 inch |
Response Time ( μS) |
<5S |
Mounting Holes Diameter (mm) |
inner diameter 3.1mm(0.12 inch)/outer diameter 6mm(0.24 inch) |
Out of stock
Out of stock
Model |
DFRobot Gravity NH3 Sensor |
---|---|
Detection Gas |
Ammonia (NH3) |
Detection range |
0~100ppm |
Working Voltage |
3.3~5.5V DC |
Working Current |
<5mA |
Output Signal |
I2C ,UART (0~3V) ,analog voltage |
Compatibility |
Arduino ,ESP32 ,Raspberry pi |
Lifespan |
>2 years (in the air) |
Working Humidity Range |
15~90%RH (non-condensing) |
Working Temperature Range (°C) |
-20~50℃ |
Product Dimensions |
37 x 32mm |
Out of stock
Out of stock
Product Name |
Figaro TGS 2600 Air Quality Sensor |
---|---|
Input Voltage (V) |
5.0±0.2V AC/DC |
Load Resistance |
variable 0.45kΩ min. |
Heater Resistance (Ω) |
approx 83Ω at room temp. (typical) |
Heater current (mA) |
42±4mA |
Heater power consumption (mW) |
210 |
Sensor Resistance (kΩ) |
10kΩ ~ 90kΩ in air |
Sensitivity (change ratio of Rs) |
0.3~0.6 Rs (10ppm of H2)/ Rs air |
