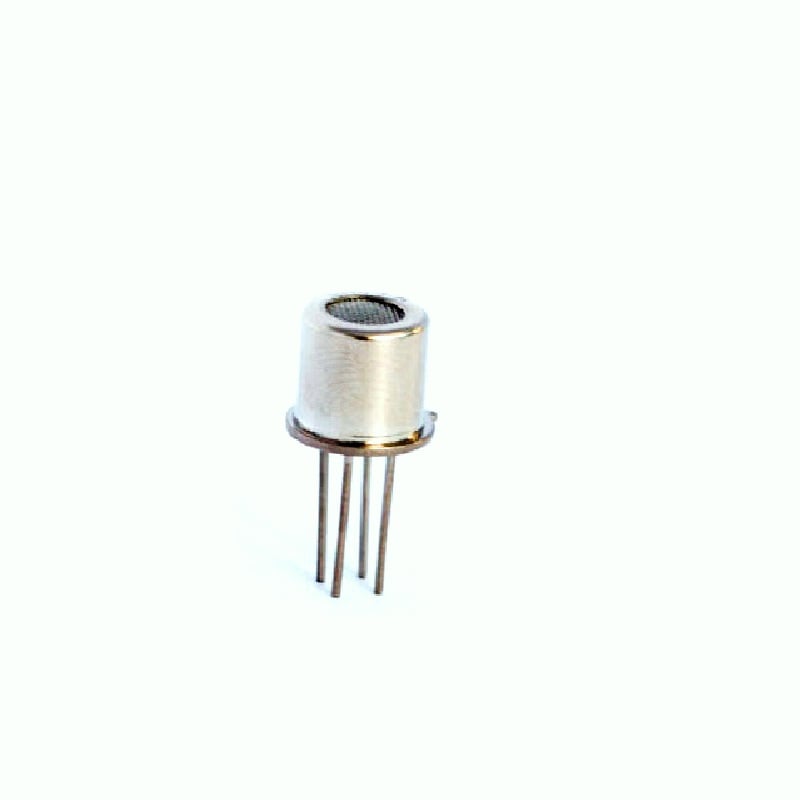

MP801 gas sensor is for air quality, It adopts multilayer thick film manufacturing technology. The heater and metal oxide semiconductor material on the ceramic substrate of subminiature Al2O3 are fetched out by electrode down-lead, encapsulated in metal socket and cap. Conductivity of the sensor is affected by the concentration of target gas. The higher the concentration is, the higher conductivity of sensor gets. Users can adopt simple circuit to convert to convert variation of conductivity into output signal corresponding to gas concentration.
Applications:
It is used in occasions such as household and office for harmful gas detection, automatic exhaust device, air cleaner & etc.
1 x Winsen MP801 Air-Quality Gas Sensor
