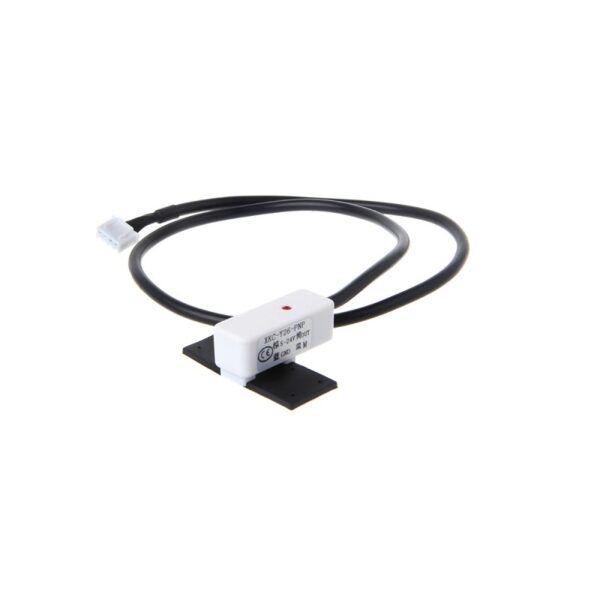

XKC-Y26 PNP 24V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor 50CM

An intelligent non-contact liquid level sensor adopts advanced signal processing technology and a high-speed signal processing chip and it won’t be influenced by container wall thickness when detecting the liquid level in an airtight container. The liquid level sensor is installed under the container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid levels of various toxic substances, acid, alkali, and all kinds of liquid in high-pressure airtight containers. It can be widely used and has no special requirement for the liquid medium and material of the container.

Applications:

1. Water tower
2. Sewage treatment
3. Drone irrigation
4. Medical equipment
5. Aquarium
6. Smart Appliances

Features:

1. The non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
2. High stability, high sensitivity.
3. Compatible with most 5 ~ 12V power adapters.

Specifications:

1. Model:XKC-Y26 PNP
2. Input Voltage (V):5 to 12
3. Current Consumption (mA):5
4. Max Output Current (mA):1~100
5. Response Time:500mS
6. Operating Temperature Range (°C):0~85
7. Working Humidity Range:5~100%
8. Material:ABS
9. Cable Length (cm):49
10. Length (mm):18
11. Width (mm):13
12. Height (mm):11
13. Weight (gm):45

Package Includes:

1 x XKC-Y26 PNP 24V 50CM Intelligent Non-Contact Liquid Level Sensor
