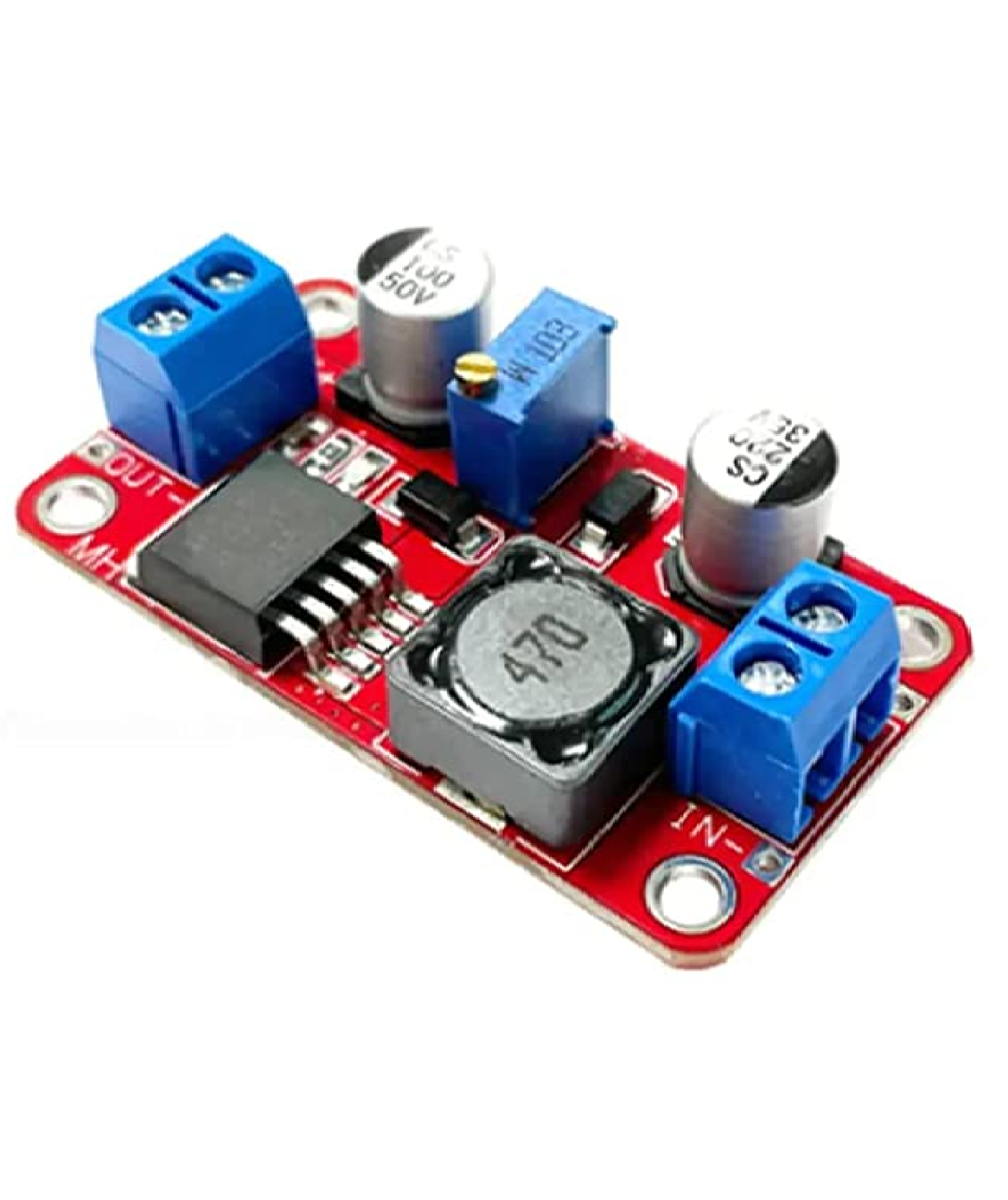

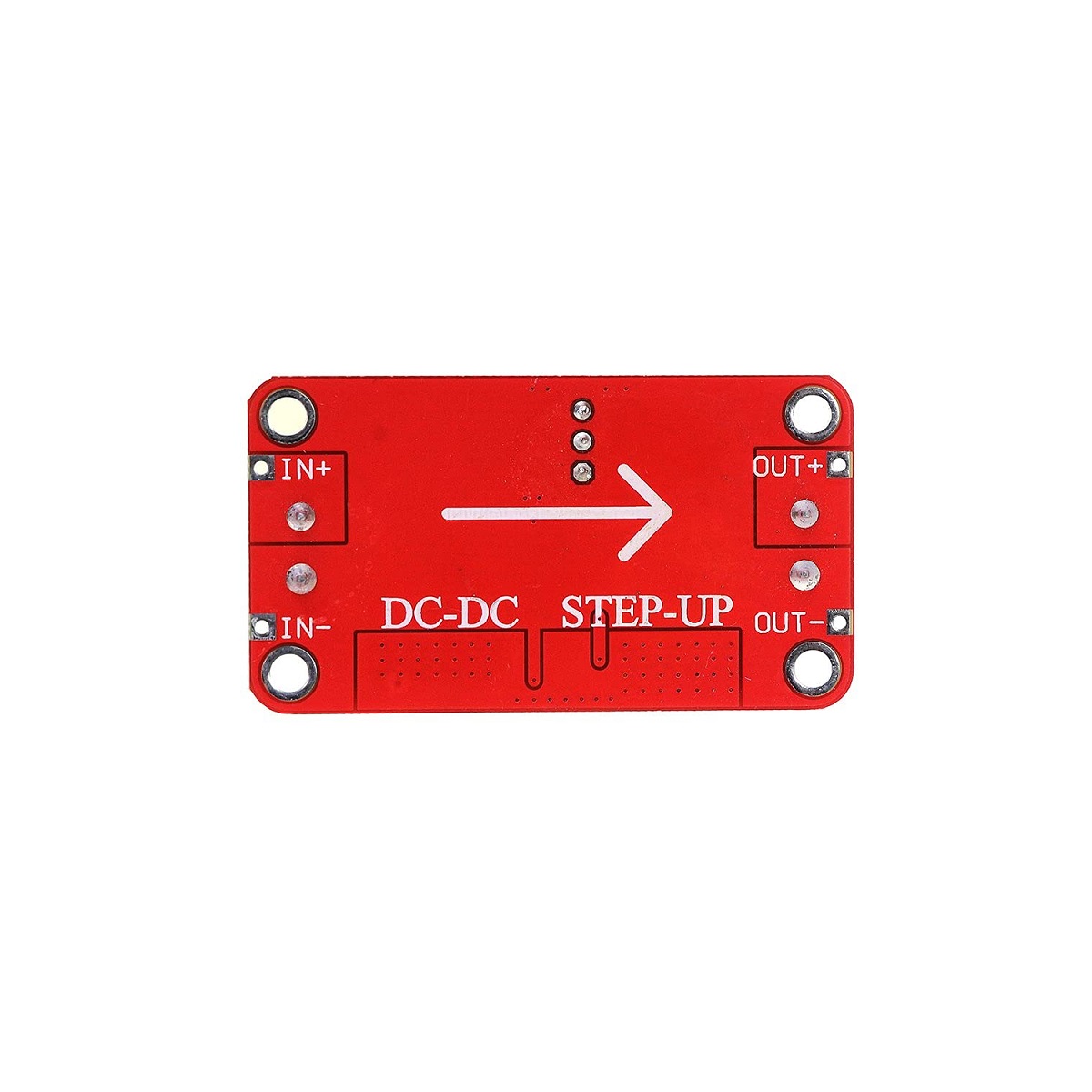

XL6019 DC-DC 5A Adjustable Boost Power Supply Module

253.75 (Including tax)

  1. Model: XL6019
  2. Product: Adjustable Boost Power Supply Module
  3. Input Current: 5A (MAX)
  4. Input Voltage: DC 3-35 V Switching
  5. Working Temperature: Industrial (-40 ° C to + 85 ° C)
  6. Negative Output Voltage: DC 5-40V (Adjustable)
  7. Frequency: 220 kHZ

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%241.08 (Including tax)
11 - 208%233.47 (Including tax)
21 - 4010%228.39 (Including tax)
41 - 10012%223.30 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

16 People watching this product now!
SKU: rz24317610 Category:
Description

The Boost module is a stripped down renderer and a set of data handling modifications for High charts. It bypasses some of the standard High charts features, applies some trade-offs and focuses on handling and rendering as many data points as possible as quickly as possible

The boost is a popular non-isolated power stage topology, sometimes called a step-up power stage. Power supply designers choose the boost power stage because the required output voltage is always higher than the input voltage, is the same polarity, and is not isolated from the inpu

DC to DC step up module based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of  up to 97%


Features:

1. With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
2. Wide input voltage range, the input voltage up to 35V.
3. Adjustable output voltage, maximum support 40V.
4. The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
5. System conversion efficiency can achieve 90% above, convenient thermal design.
6. TO263-5 l standard packaging, suitable for booster application within 30W.


Package Includes:

1 x XL6019 DC-DC 5A Adjustable Boost Power Supply Module

Additional information
Model

XL6019

Product Type

Adjustable Boost Power Supply Module

Input Current

5A (MAX)

Input Voltage

DC 3-35 V Switching

Working temperature

Industrial (-40 ° C to + 85 ° C)

Negative Voltage

DC 5-40V (Adjustable)

Frequency Range

220 kHZ

Output ripple

100mv (MAX)

Voltage Regulation

± 0.5% MS + -> Positive; IN —> Negative; OUT + -> Positive; OUT —>

Packages Includes

1 pc XL6019

Boost Module size

Approx 50 * 28 * 13mm (L * W * H)

Load Regulations

± 0.5%

Conversion efficiency

94% (MAX)
