Gas and Dust Sensor
DFRobot Gravity ENS160 Air Quality Sensor
Out of stock

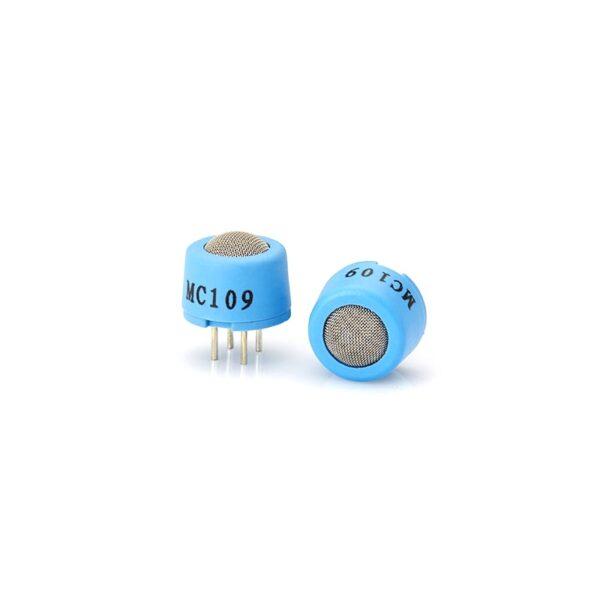

Winsen MC109 Catalytic Flammable Gas Sensor
Out of stock
AO-07 Oxygen Sensor
Out of stock
| Product Type |
Oxygen Sensor |
|---|---|
| Model |
AO-07 |
| Output |
9 mV to 13 mV in 21%O² |
| Measurement Range |
0 – 100 Vol.% O² |
| Temperature Compensation |
＜2% O² equivalent（0℃-40℃） |
| Response Time |
<15 s |
| Operating Temperature Range |
0℃ – +50℃ |
| Operating Pressure Range |
0.5 Bar – 2.0 Bar |
| Operating Humidity Range |
0% to 99% RH noncondensing |
AO-08 Medical Oxygen Sensor
Out of stock
| Output |
9 mV to 13 mV in 21%O² |
|---|---|
| Measurement Range |
0 – 100 Vol.% O² |
| Temperature Compensation |
＜2% O² equivalent（0℃-40℃） |
| Response Time |
<15 s |
| Operating Temperature Range |
0℃ – +50℃ |
| Operating Pressure Range |
0.5 Bar – 2.0 Bar |
| Operating Humidity Range |
0% to 99% RH noncondensing |
| Color |
Asper Image |
Micro flow sensor Model AFS01
Out of stock
| Product Type |
Micro flow sensor |
|---|---|
| Model No. |
Model AFS01 |
| Supply voltage |
5V |
| Range specification |
20 ,30 ,50 ,100 ,200 ,500 ,1000 ,1200 ,2000 sccm |
| Test gases |
Air ,N2 ,O2 ,non – corrosive gases |
| Repeatability |
± 0.3 ~ ± 5 % FS |
| Accuracy |
± 3 ~ ± 5 % FS |
| The response time |
30 – 500ms |
| Zero drift |
± 0.2 ~ ± 0.5 % |
| The flow range |
0 – 200 sccm |
| Storing temperature |
-25 ~ + 90 ℃ ; |
| Operating temperature |
-25 ~ + 80 ℃ |

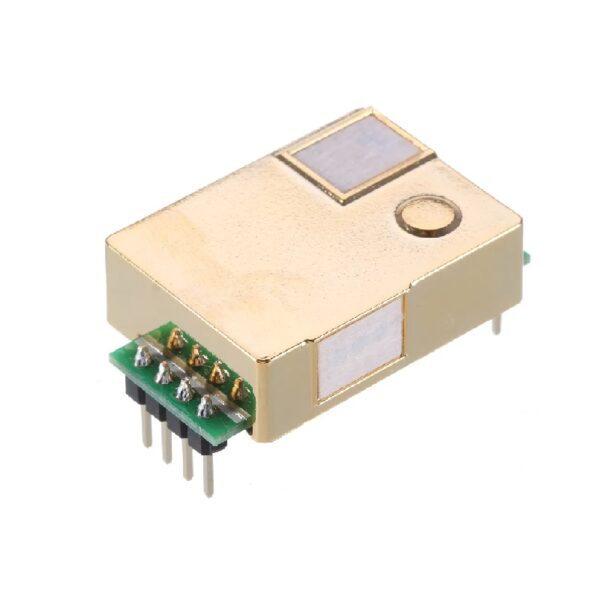

Winsen MH-Z19B NDIR CO2 sensor for indoor air quality monitoring
Out of stock

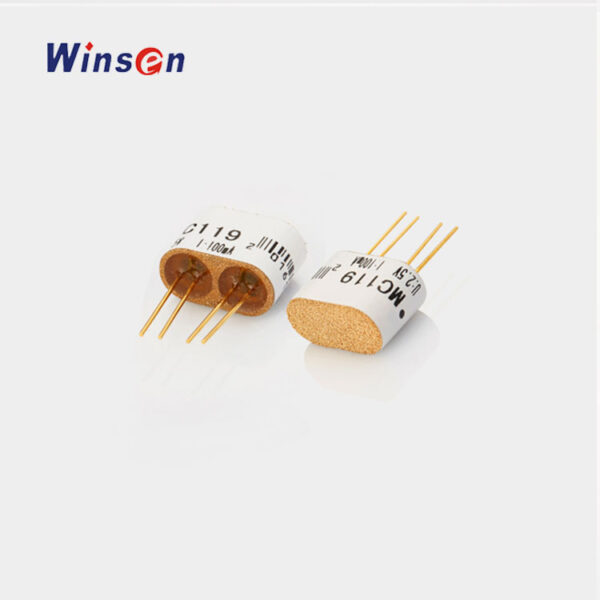

Winsen MC119 Catalytic Flammable Gas Sensor
Out of stock
Mikroe AIR QUALITY 3 CLICK
Out of stock
DFRobot Gravity Alcohol Sensor (0-5ppm)
Out of stock

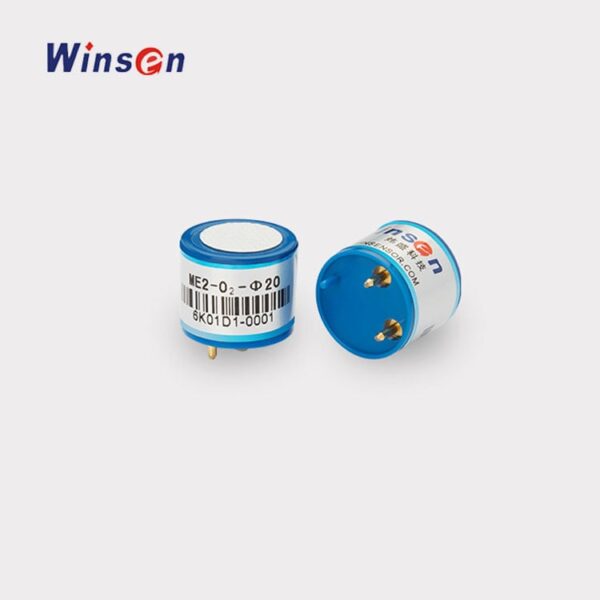

Winsen ME2-O2-Ф20 Oxygen Sensor
Out of stock
Adafruit SGP30 Air Quality Sensor Breakout – VOC and eCO2 – STEMMA QT / QwiicRoHS Compliant
Out of stock
| Brand |
Adafruit |
|---|---|
| Model No. |
SGP30 Air Quality Sensor |
| Interface |
I2C |
| Accuracy |
15% |
| Element |
metal-oxide sensing |
| Voltage (V) |
3.3V or 5V |
| Power Pins |
Vin: this is the power pin. Since the sensor chip uses 3 VDC for logic ,we have included a voltage regulator on board that will take 3-5VDC and safely convert it down. To power the board ,give it the same power as the logic level of your microcontroller – e.g. for a 5V micro like Arduino ,use 5V 1V8: this is the 1.8V output from the voltage regulator ,you can grab up to 50mA from this if you like GND: common ground for power and logic |
| Data Pins |
SCL – I2C clock pin SDA – I2C data pin |
| Length (mm) |
2.5 |
| Width (mm) |
1.5 |
| Height (mm) |
0.5 |
| Weight (g) |
2 g |
Seeed Studio Grove – Air Quality Sensor(BME688) with built-in AI, High-Performance 4-in-1, Gas, Humidity, Pressure and Temperature sensor
Out of stock
