DFRobot Gravity Analog Water Pressure Sensor

2,373.39 (Including tax)

  1. Medium: liquid/gas without corrosion
  2. Wiring: Gravity-3Pin (Signal-VCC-GND)
  3. Pressure Measurement Range: 0~1.6 Mpa
  4. Input Voltage: +5 VDC
  5. Output Voltage: 0.5~4.5 V

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%2,254.72 (Including tax)
11 - 208%2,183.52 (Including tax)
21 - 4010%2,136.06 (Including tax)
41 - 10012%2,088.59 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
SKU: rz24321899 Categories: , , ,
Description

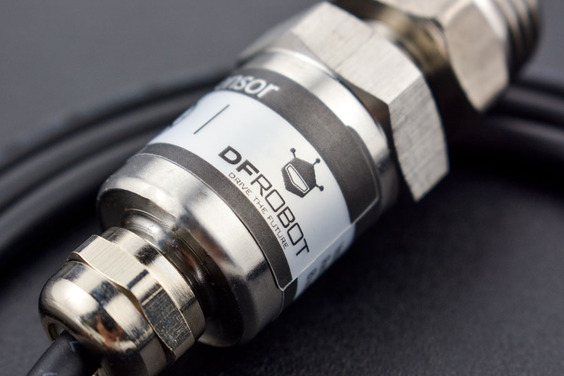

This is a water pressure sensor that adopts a DFRobot Gravity 3-pin interface. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible with multiple Arduino controllers. Coordinate with a DFRobot Gravity IO Expansion Shield, the water pressure sensor can be plugged into an Arduino board, wiring-free. Put it with Solenoid Valve, Water Turbine Generator, and other sensors, you can build a smart water control system. You may also check Liquid Sensor Selection Guide to get better familiar with our liquid sensor series.

Briefly speaking, this water pressure sensor is a stethoscope to a water pipe. It will help you to diagnose whether there is water, how strong the water pressure is. It can be widely applied to smart home control systems (SCS), the Internet of Things (IoT), and device detections.


Features:

  1. Support water pressure detection of living environmental water systems, such as houses, gardens, and farms
  2. Support water pressure detection of the outdoor environment, such as rivers, lakes, and the sea
  3. Support water pressure detection of tanks
  4. Support liquid level detection in special situation detection in specified liquid

Useful Links:


Package Includes:

1 x Gravity: Analog Water Pressure Sensor

1 x G1/2 to G1/4 Connector (mounted)

Additional information
DC Input Voltage Range (V)

5

Output Voltage(V)

0.5~4.5

Measurement Accuracy

0.5%~1%FS

Waterproof level

IP68

Response Time(ms)

<2.0

Quiescent Current(mA)

2.8

Normal Operating Pressure

≤2.0 Mpa

Damaged Pressure

≥3.0Mpa

Operating Temperature Range (°C)

-20 to 85
