₹2,509.09 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹2,383.63 (Including tax) |
11 - 20 | 8% | ₹2,308.36 (Including tax) |
21 - 40 | 10% | ₹2,258.18 (Including tax) |
41 - 100 | 12% | ₹2,208.01 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

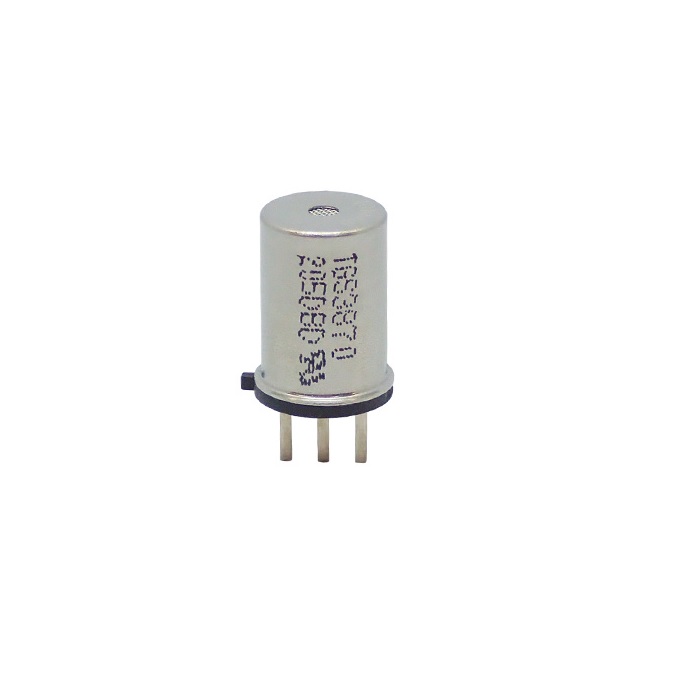

TGS 3870-F00 is a micro-bead type semiconductor gas sensor for the detection of both methane and carbon monoxide. Using a micro-bead gas sensing structure, both methane and carbon monoxide can be detected with a single sensor element by periodic application of two different heater voltages (high and low). Miniaturization of the gas sensing bead results in a heater power consumption of only 38mW (average).
TGS 3870-F00 has low sensitivity to alcohol vapors (a typical interference gas in the residential environment) and has high durability, making the sensor ideal for consumer market gas alarms.
Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.
1 x Figaro TGS3870 Methane/Carbon Monoxide Sensor
Model No. |
TGS3870-F00 |
---|---|
Circuit Voltage |
5.0±0.2V DC pulse |
Load Resistance |
variable (>0.75kΩ) |
Sensing Principle |
MOS type |
Sensor Resistance |
0.3kΩ~5.0kΩ in 3000ppm methane 2kΩ~40kΩ in 200ppm CO |
Standard Package |
Plastic base and metal can |
Target Gases |
Methane and Carbon Monoxide |
Test Gas Conditions |
Target gas in air at 20±2˚C ,65±5%RH |
