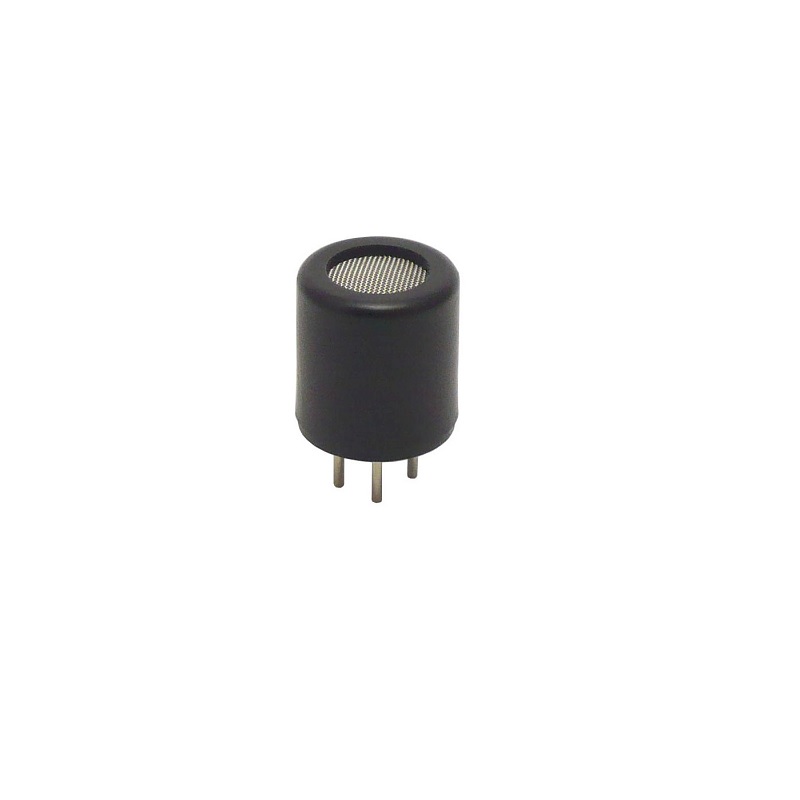

Figaro TGS6812-D00 Hydrogen/Methane/LPG Sensor

11 People watching this product now!

SKU: rz2436185 Category: Gas and Dust Sensor

Description

The TGS6812-D00 catalytic-type gas sensor can detect levels of hydrogen up to 100%LEL. This sensor features high accuracy, good durability and stability, quick response, and linear output. This sensor can detect not only hydrogen but also methane and LP gas, thus making it an excellent solution for monitoring gas leakage from stationary fuel cell systems which transform combustible gases into hydrogen. As the sensor possesses a proprietary filter material inside its sensor cap, its cross-sensitivity to organic vapors is small. In addition, TGS6812-D00 is durable against silicone compounds in harsh environments.

N0te: For more technical details go through Datasheet in the Attachment sections

Applications:
Hydrogen and combustible gas leak
detectors for fuel cells

Features:

Linear output
Long life
Small sensitivity to organic vapors
Sensitive to hydrogen, methane, and
LP gas

Package Includes:

1 x Figaro TGS6812-D00 Hydrogen/Methane/LPG Sensor

Additional information

Model No.	TGS6812-D00
Heater Current	175mA (typical)
Heater power consumption	525mW (typical)
Target Gases	Hydrogen , methane , iso-butane
Test Gas Conditions	Hydrogen/methane/iso-butane in air at 20±2˚C , 65±5%RH
Zero offset	-15 ~ +55mV
