₹2,017.85 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹1,916.97 (Including tax) |
| 11 - 20 | 8% | ₹1,856.43 (Including tax) |
| 21 - 40 | 10% | ₹1,816.07 (Including tax) |
| 41 - 100 | 12% | ₹1,775.72 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

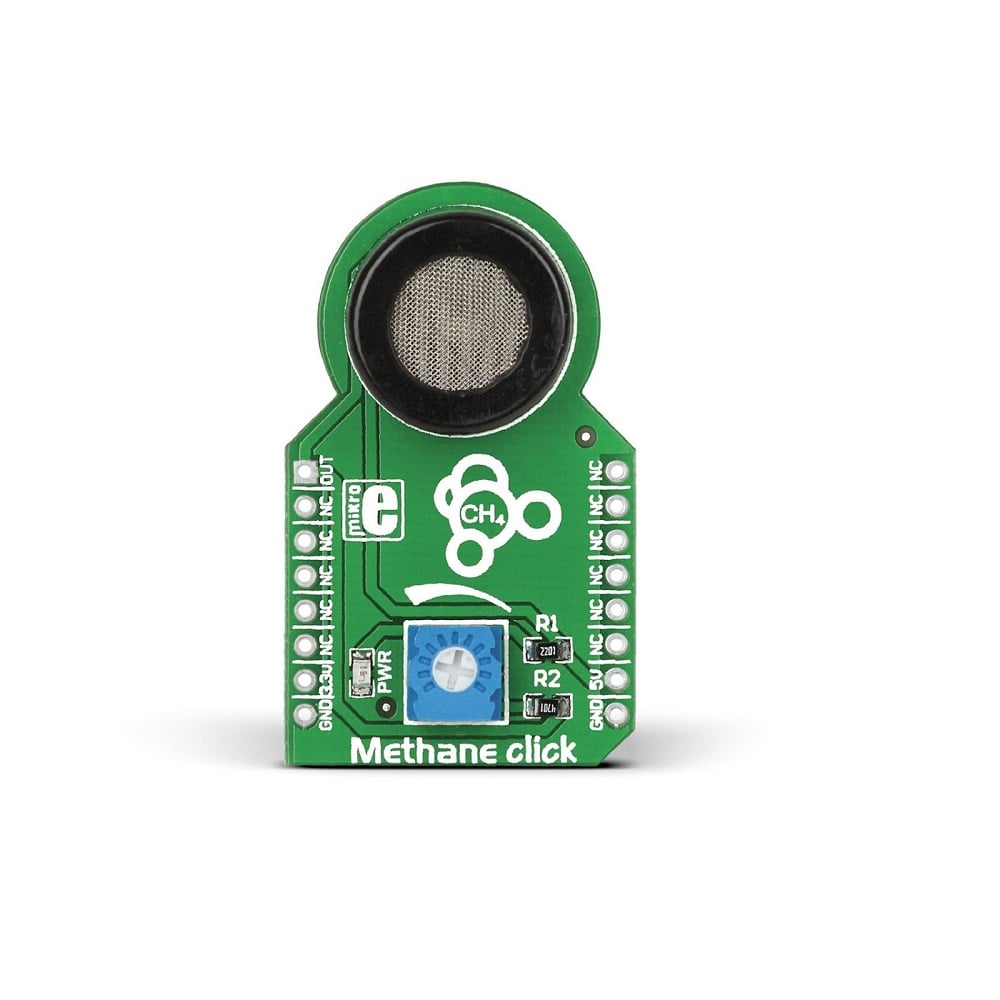

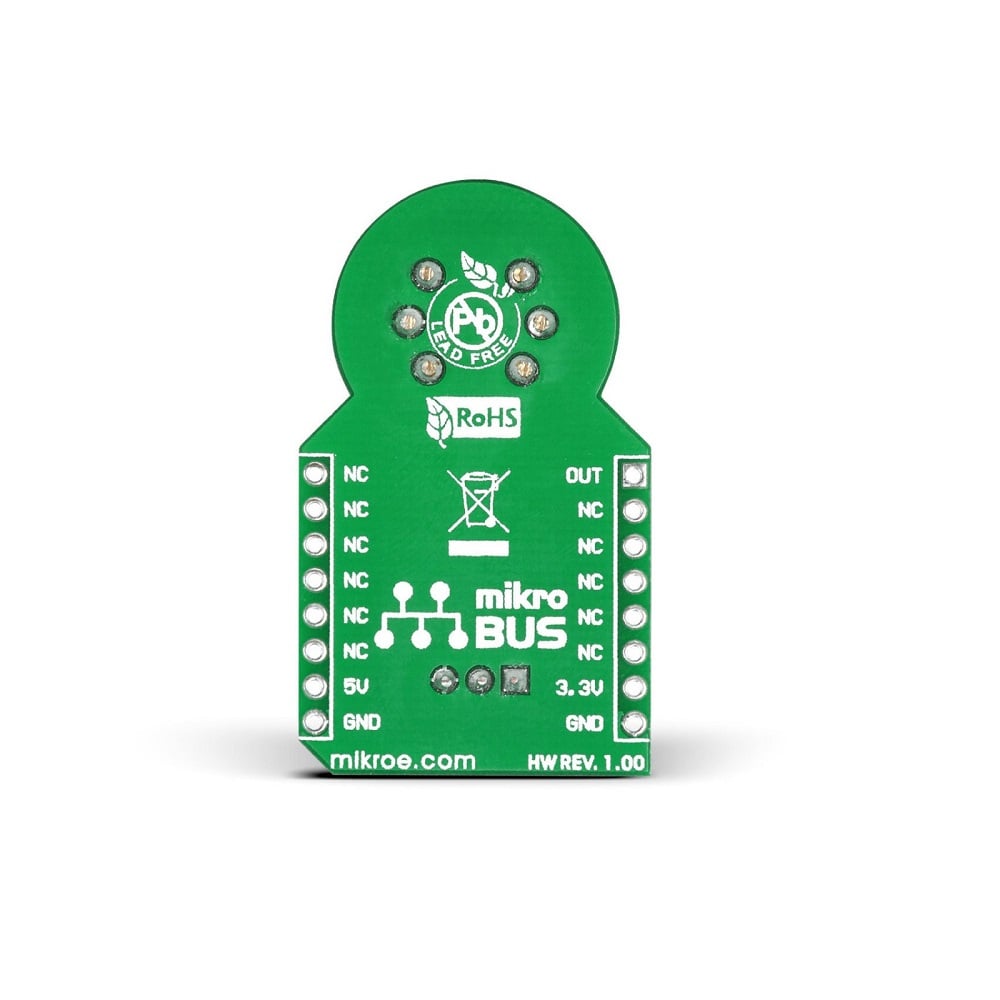

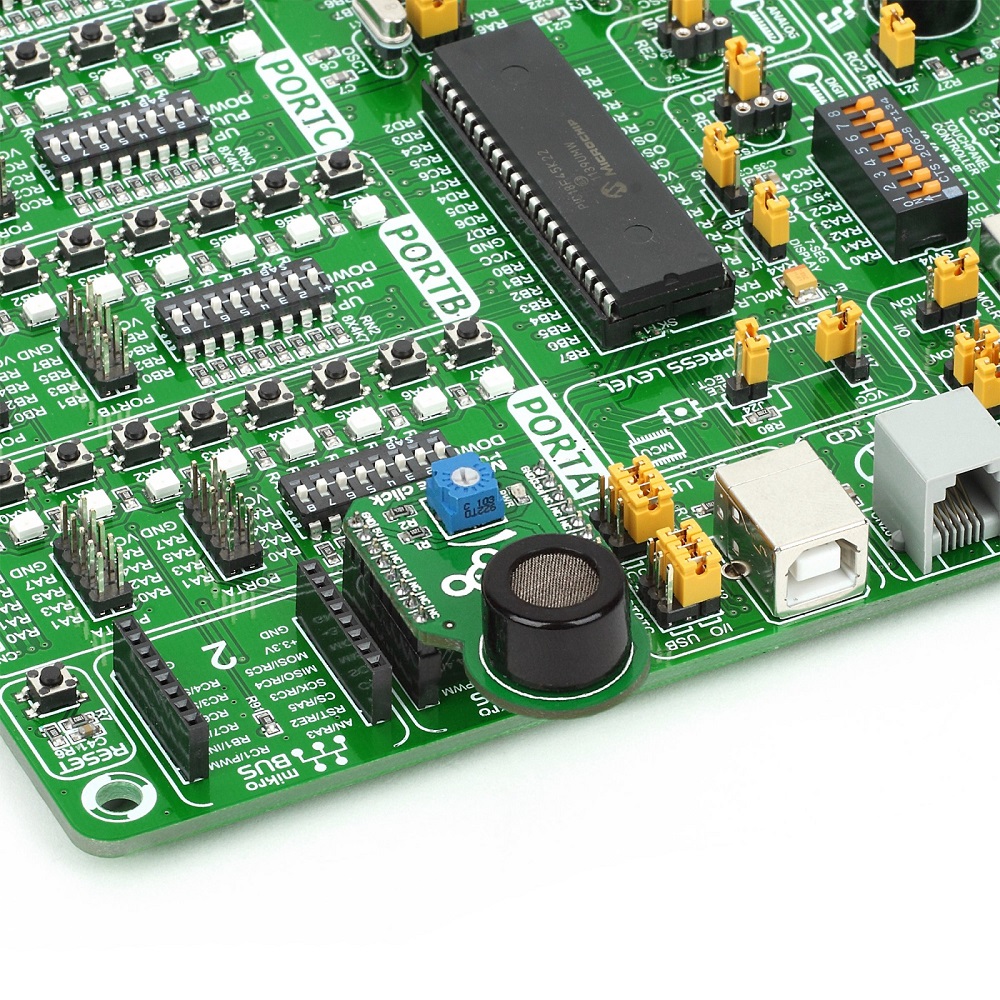

To calibrate the sensor for the environment you’ll be using it in, Methane click has a small potentiometer that allows you to adjust the load resistance of the sensor circuit. For precise calibration, the sensor needs to preheat (once powered up, it takes 24h to reach the right temperature). Methane click communicates with the target board through AN (OUT) mikroBUS line. It’s designed to use a 5V power supply only.
1 x Mikroe METHANE Click
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
| Particle Measurement Range |
0.3~1.0μm; 1.0~2.5μm; 2.5~10μm |
|---|---|
| Particle Counting Efficiency |
50%@0.3μm ,98%@>=0.5μm |
| Resolution of Particle Mass Concentration |
1μg/mᶟ |
| Temperature Measurement Range |
0~99℃ |
| Temperature Measurement Resolution |
0.1℃ |
| Humidity Measurement Range |
0~99% |
| Humidity Measurement Resolution |
0.1% |
| Humidity Measurement Accuracy |
±2% |
| Single Response Time |
<1s |
| Comprehensive Response Time |
≤10s |
| DC Supply Voltage |
Typ: 5V Min: 4.5V Max: 5.5V |
| Working Current |
≤100mA |
| Standby Current |
≤200mA |
| Data Interface Level |
L<0.8V ,H>2.7V ,maximum level voltage 3.3V |
| Working Temperature Range |
10~50℃ |
| Working Humidity Range |
0~99% |
| Storage Temperature Range |
40~80℃ |
Out of stock
Out of stock
| Model No. |
TGS2602-B00 |
|---|---|
| Heater Voltage |
5.0±0.2V DC |
| Circuit Voltage |
5.0±0.2V DC |
| Heater power consumption |
280mW (typical) |
| Heater Current |
56±5mA |
| Sensing Principle |
MOS type |
| Heater Resistance |
approx 59Ω at room temp. (typical) |
| Load Resistance |
variable 0.45kΩ min |
| Sensor Resistance |
10kΩ ~ 100kΩ in air |
| Standard Package |
TO-5 metal can |
| Target Gases |
Air contaminants (VOCs ,ammonia ,H2S ,etc.) |
| Test Gas Conditions |
normal air at 20±2˚C ,65±5%RH |
Out of stock
| Model No. |
TGS5042-A00 |
|---|---|
| Target Gases |
Carbon monoxide |
| Typical detection range |
0 ~ 10 ,000ppm |
| Output current in CO |
1.2~2.4nA/ppm |
| Baseline offset(*1) |
<±10ppm equivalent |
| Operating & storage temperature (*2,*3) |
-5ËšC ~ +55ËšC |
| Operating humidity |
5 ~ 99%RH (no condensation) |
| Response time (T90) |
within 60 seconds |
| Standard test conditions |
20±2˚C ,40±10%RH |
Out of stock
| Model number |
TGS5141-P00 |
|---|---|
| Output current in CO |
1.2~3.2nA/ppm |
| Target Gases |
Carbon monoxide |
| Typical detection range |
0 ~ 5 ,000ppm |
| Baseline offset(*1) |
<±10ppm equivalent |
| Operating temperature |
10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent) |
| Operating humidity |
10 ~ 95%RH (no condensation) |
| Response time (T90) |
within 60 seconds |
| Storage conditions |
-10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent |
| Standard test conditions |
20±2˚C ,40±10%RH |
| Weight |
approx. 2.5g |
