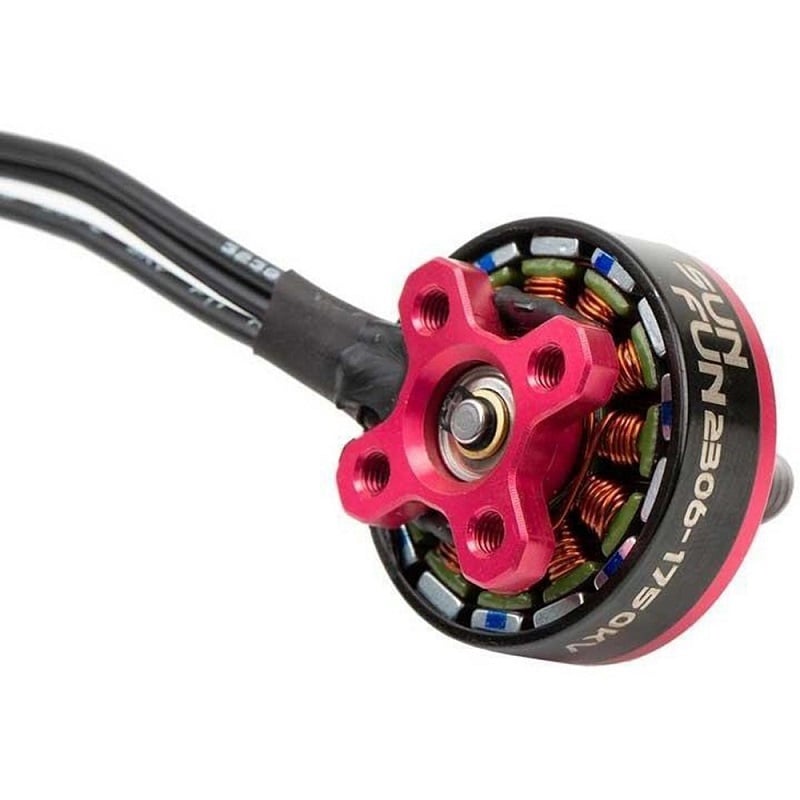

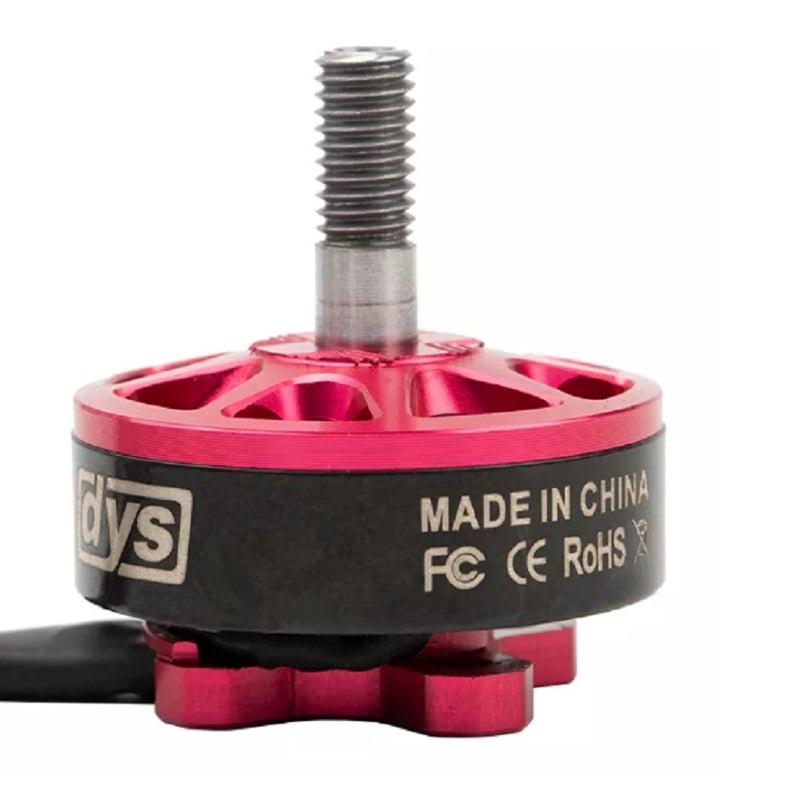

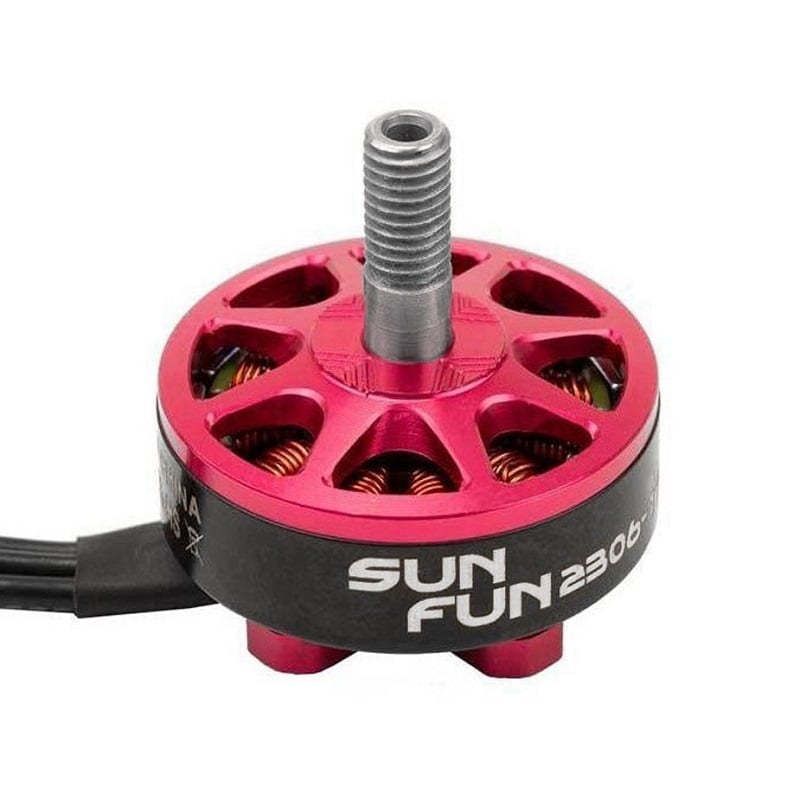

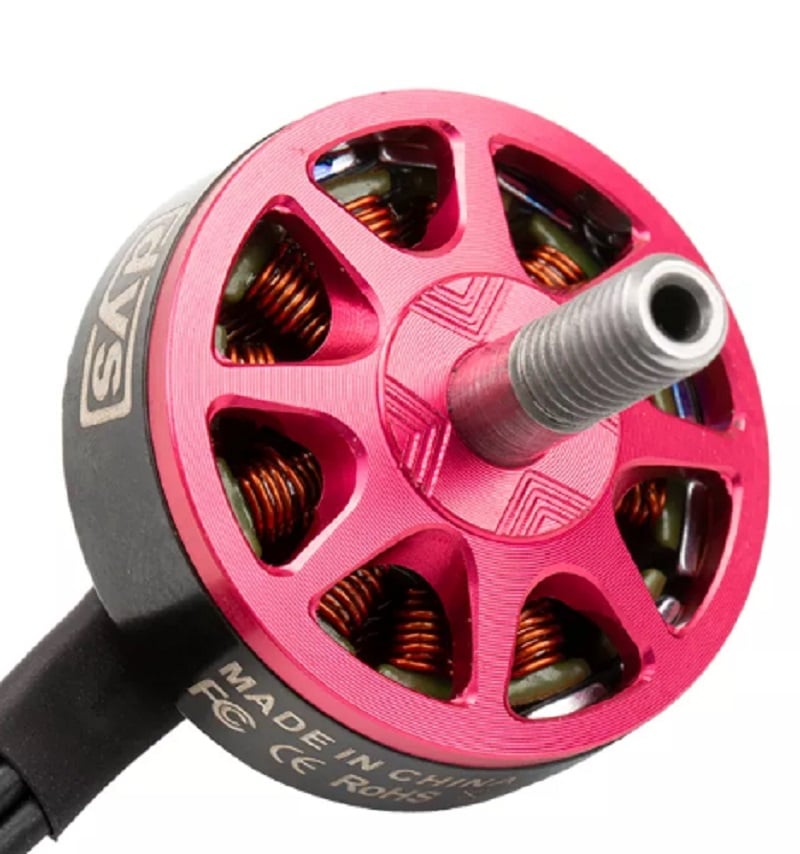

The DYS SunFun 2207 Motor has been designed and built specifically for FPV Racing. The SunFun series are great affordable motors build for a beginner who wants to get in the air and learn all of the basics of flying FPV!

A Brushless DC Electric Motor (BLDC) is an electric motor powered by a direct current voltage supply and commutated electronically instead of by brushes like in conventional DC motors. Advancements in solid state technology in the early 1960s resulted in the invention of the first brushless DC (BLDC) motor in 1962, what T.G. Wilson and P.H. Trickey called a “DC machine with solid state commutation.” The key element of the brushless motor is that it requires no physical commutator, making it the most

BLDC motor works on the principle similar to that of a Brushed DC motor. The Lorentz force law which states that whenever a current carrying conductor placed in a magnetic field it experiences a force. As a consequence of reaction force, the magnet will experience an equal and opposite force

Applications:

1. Computer hard drives and DVD/CD players.
2. Electric vehicles, hybrid vehicles, and electric bicycles.
3. Industrial robots, CNC machine tools, and simple belt driven systems.
4. Washing machines, compressors and dryers.
5. Fans, pumps and blowers

Features:

1. Vibration Free Operation.
2. Windings are made from copper of high purity.
3. Generates less heat during operations.

Package Includes:

1 x SUNFUN D2207 2750Kv BLDC Motor

This A2217 1100kv BLDC Motor is specifically made to power Quadcopters and Multirotors. It is an 1100 kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 4 propellers.

The motor comes with a 3mm banana male connector attached which can be directly connected with 70A ESC without any soldering requirement

With a 3-5S LiPo battery,70A ESC  these motors provide up to 2150 gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 8.6 kg thrust! Use this to build powerful and efficient quadcopters.

This is a low price and excellent quality Brushless Motor.  It comes with Bullet Connectors already soldered

Applications:

1. Drones
2. Quadcopters
3. Multirotors
4. RC Airplanes
5. UAV

Features:

1. The steel design is capable of withstanding competitive conditions.
2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
3. Compact size.
4. Offers great performance and value for money.
5. Smooth throttle response for best RC experience.

Specifications:

1. Model: A2217 1100kv
2. Compatible Lipo Batteries: 3S ~ 5S
3. Motor KV (RPM/V): 1100
4. Shaft Diameter (mm): 5
5. Maximum Power (W): 911
6. Required ESC (A): 70
7. Compatible Propellers Size (inch): 12
8. Motor weight: 69g
9. Dimensions: 48 x 27.80mm

Packages Includes:

1 x A2217 1100KV RC Brushless Outrunner Motor welded Banana Connector (Male)

T Motor U8II KV100 is a powerful drone motor having small permanent magnets made from iron and cobalt alloys. Using special alloys in the magnets makes them able to be smaller and lighter. Lithium-ion batteries are currently used to power drones as the weight-to-power storage ratio is better than any other battery.

This latest drone motor comes with curved magnets and silver winding on the stator  which improves the faster response of the motor to control the speed of the motor for easy control over Aircraft

Features:

1. Silver winding for faster response
2. Specially design curved Magnets
3. Efficiency increased by 15%
4. Improved Temperature efficiency
5. Flight time 5% longer
6. Max. Thrust 7.3kg
7. Motor protection IP55
8. Motor service life– 1500 flights (40mins/flight)

Specifications:

1. Rated KV:  100
2. Rated Voltage ( Lipo): 12S
3. Motor Weight (Incl. Cable): 272g
4. Propeller Recommendation: 27-28″
5. Idle Current ( 18V ): 0.7A
6. Internal Resistance 170±5m0
7. Peak Current ( 180s ) 29.3A

Package Includes:

1 x T Motor U8II KV100

Semi-closed design introduced to MN601 grid-shaped structure of bell cap allows efficient ventilation while protecting motors from dust and other debris . The grid-shaped inlet holes on the base further keep motors away from foreign objects even when motors are mounted upside down. Alloy shaft bearing varnished wire silicon steel sheet magnet and bell are treated with the latest anti-rust and anti-corrosion technology. it grants the motor parts remarkable protection

Features:

1. Strong power, long service life
2. Excellent cooling performance
3.  Anti-high temperature/Anti-overload
4.  Dust-resistance/Waterproof/Anti-corrosion

Specifications:

1. Motor Size (mm): φ68.8*34.9
2. Stator Technology: anti rust treatment ; 150°c high temperature resisting coating
3. Configuration: 24N28p
4. Shaft Diameter (mm): IN:6 OUT:6
5. Bearing: Imported 626zz
6. Magnet Temperature Resistance Grade: class E 150°c
7. Lead (mm): 16AWG*150
8. Coil Insulation Test: 500v
9. Rotor Dynamic Balanced Standard (mg):<5mg

Package Includes:

1 x T Motor Navigator MN601-S KV320 – 2PCS/SET

The engineers at Emax are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving performance and durability while retaining the same affordability. Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

In order to improve the performance of its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust are generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation. The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.

Features:

1. Precision bearing
2. Steel shaft
3. Anodizing
4. 19 x 19mm hole pattern
5. Multi-strand winding

Specifications:

1. Framework: 9N12P
2. Length: 19.75mm
3. Diameter: 18.8mm
4. Propeller: 2.5″ – 4″
5. Weight: 8.6g (W/O Silicone Wire)
6. Prop adapter shaft diameter: 1.5mm
7. Bearing Shaft: 2mm
8. Shaft Thread: CW

Packages Includes:

1 x Emax ECO 1404-48

00KV Brushless Motor

High efficient magnets are adopted to U15Il for stable output and constant efficiency in harsh environment. Simulated analyses are carried out based on the stress under operating condition in axial and radial directions. Redesigned custom bearing contribute to prolong the bearing life to 1000h under trouble-free operation. Wound with military grade high-temperature resistant enameled wires: Level C temperature resistance.

Features:

1. For freight transport and manned uav programs
2. Safe，stable，reliable
3. Higher waterproof and dust-resistance level

Specifications:

1. Model: U15Ⅱ KV100
2. Ideal current: 3.8A
3. Max. continuous: 143A
4. Configurations: 36N24P
5. Internal resistance: 12mΩ
6. Shaft diameter: 12mm
7. Lead: Enameled wired
8. No. of cell lipo: 12-24s
9. Cable length: 100mm
10. KV: KV100
11. Motor diameter: 147.5 x 55mm

Packages Includes:

1 x T Motor U15Ⅱ KV100 BLDC drone motor
