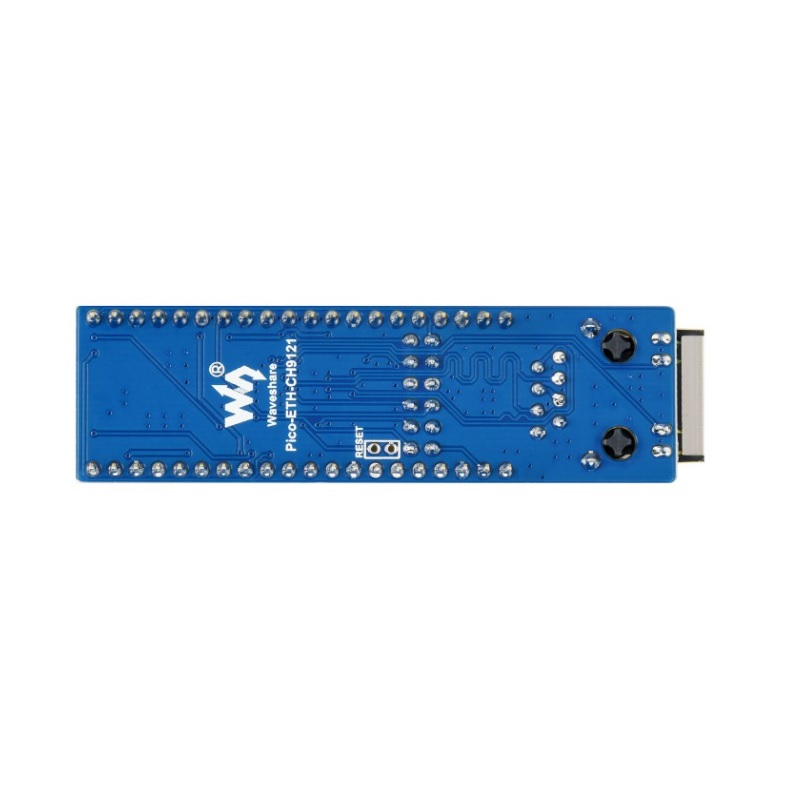

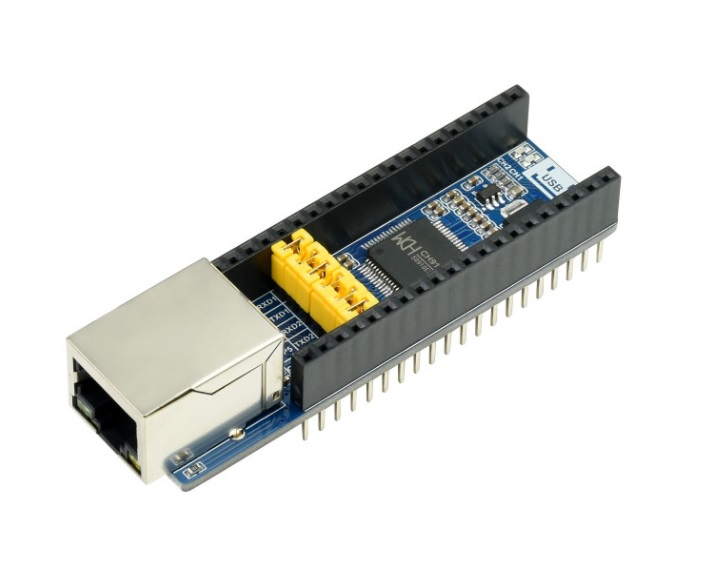

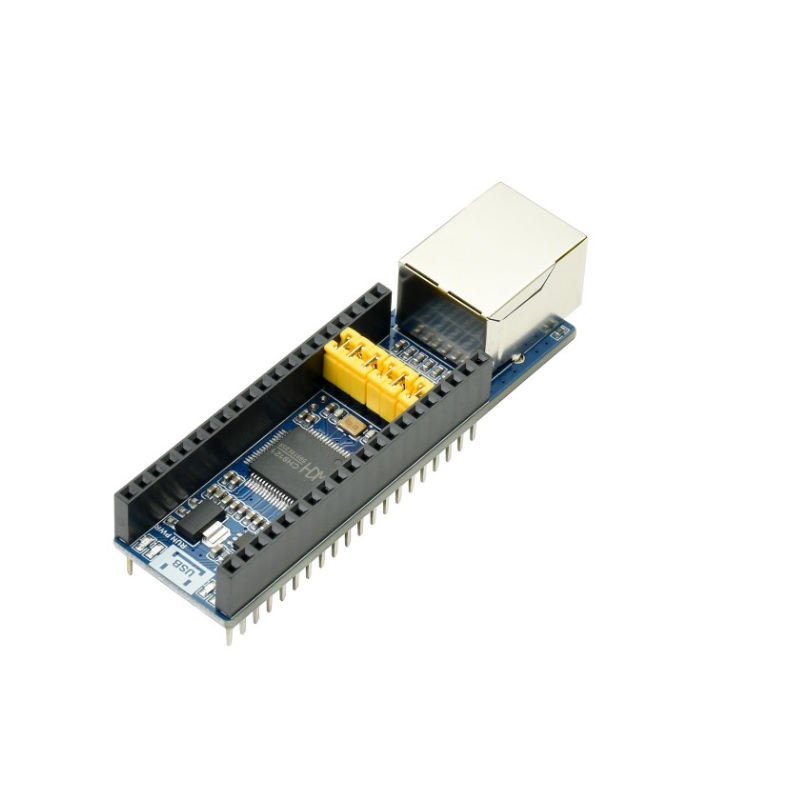

Waveshare Ethernet to UART Converter for Raspberry Pi Pico, 10/100M Ethernet

1,627.05 (Including tax)

  1. Operating mode: TCP/UDP
  2. UART TTL: 3.3V / 5V compatible
  3. Auto-MDI/MDIX, detect and switch cable type automatically
  4. Onboard jumpers for pin configurations
  5. Embedded Ethernet MAC and PHY layers
  6. Bi-direction transparent data transmission between UART and Ethernet
  7. 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%1,545.69 (Including tax)
11 - 208%1,496.88 (Including tax)
21 - 4010%1,464.35 (Including tax)
41 - 10012%1,431.79 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

11 People watching this product now!
SKU: rz24320703 Category:
Description

Ethernet To UART Converter For Raspberry Pi Pico, 10/100M Ethernet, Enabling Network Communication Through UART.The CH9121 is a transparent network serial port chip that supports bidirectional and transparent transmission of serial port data and network data. It supports four working modes: TCP CLIENT/SERVER and UDP CLIENT/SERVER. The serial port baud rate ranges from 300bps to 921600bps. Before using, you should set network and serial port parameters for the chip by the NetModuleConfig.exe software or serial commands. After the configuration is complete, the CH9121 saves the configuration parameters to the internal storage space. After the chip is reset, the CH9121 could work based on the saved configuration values.


Features:

  1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  2. Onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel
  3. Supports DHCP auto-obtained IP and DNS domain access
  4. Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
  5. Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
  6. Full-duplex or half-duplex UART communication supports RS485 RX/TX auto switch (external RS485 controller required)
  7. Supports virtual serial port software (provided)
  8. KEEPALIVE mechanism support

Package Includes:

1 x Waveshare Ethernet to UART Converter for Raspberry Pi Pico

Additional information
UART Baudrate

300-921kbps

Operating Current (A)

140mA

Operating Temperature Range (°C)

-40 to 85

Operating Voltage(V)

3.3 to 5
