Power supply

supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
PoE Input voltage

37V ~ 57V
Type-C output

5V 2.5A (MAX)
Cable

Cat-5 UTP
Standard

IEEE 802.3 af/at PoE Ethernet
Data rate

10/100/1000Mbps
LED Indicator

PoE power input indicator
Operating temperature

-40℃ ~ 85℃

Waveshare Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C Out

SKU: 1190433
In Stock

₹1,749.00

  1. Power supply: supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
  2. PoE Input voltage: 37V ~ 57V
  3. Cable: Cat-5 UTP
  4. LED Indicator: PoE power input indicator
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

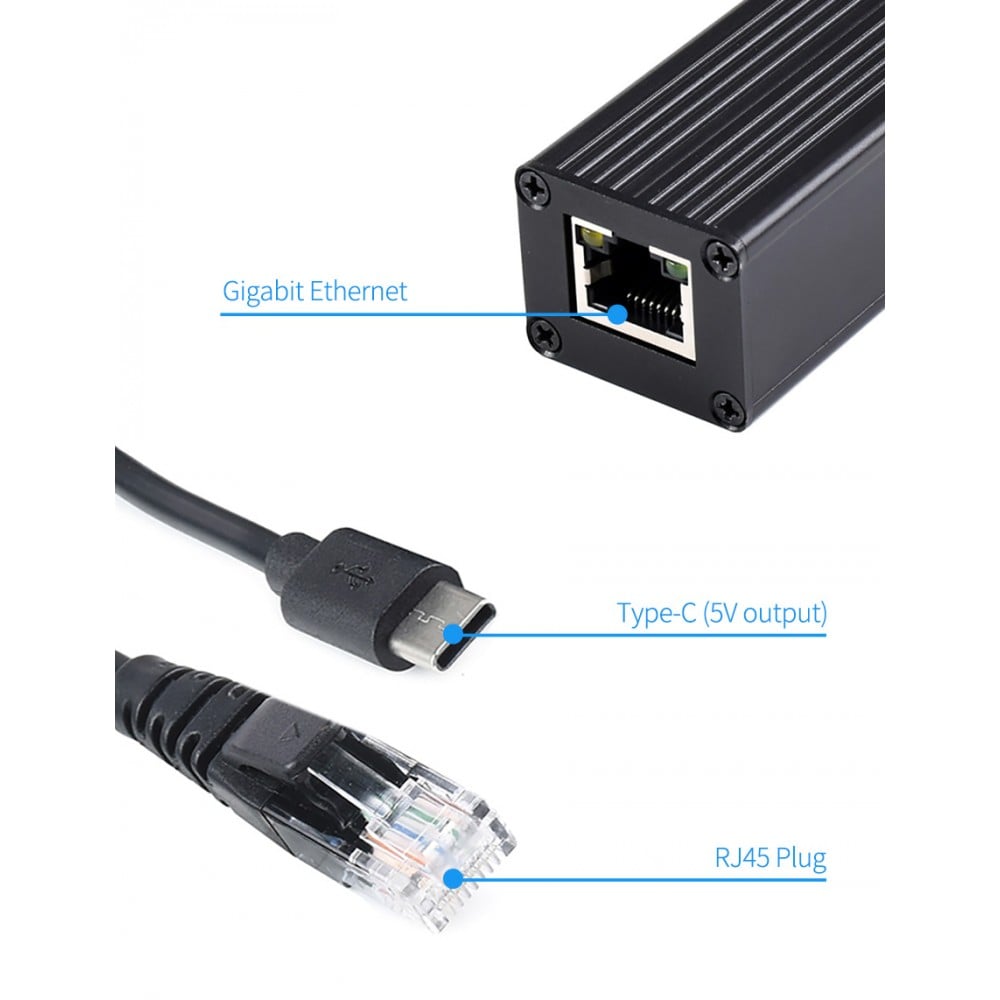

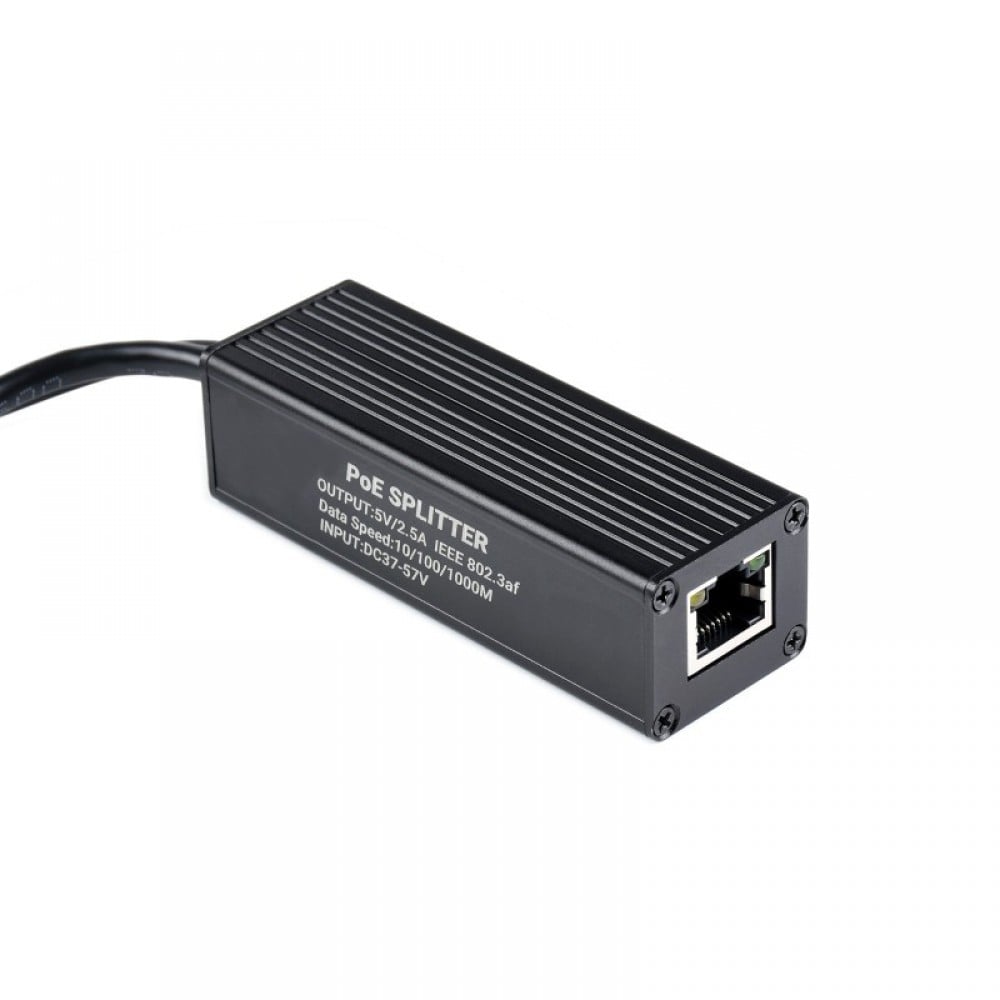

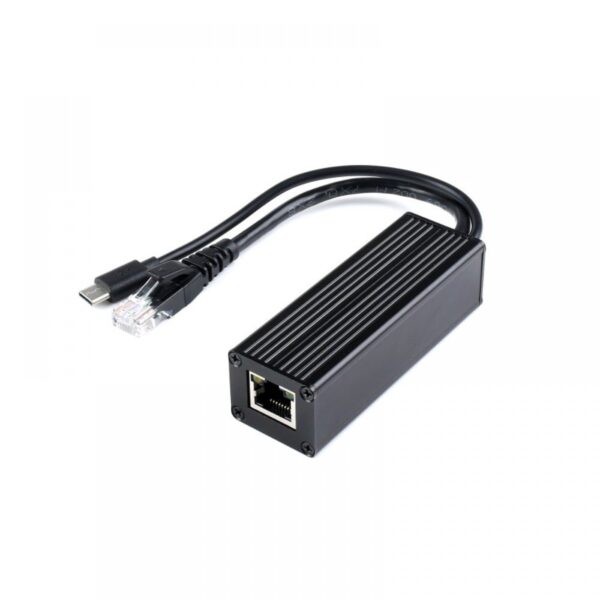

POE-SPLITTER-TYPE-C is an industrial Gigabit PoE splitter with metal case protection. The splitter supports 5V 2.5A type-C power output.

Application:

Powering The Raspberry Pi Or Other 5V-Powered Network Devices By PoE Switch

Features:

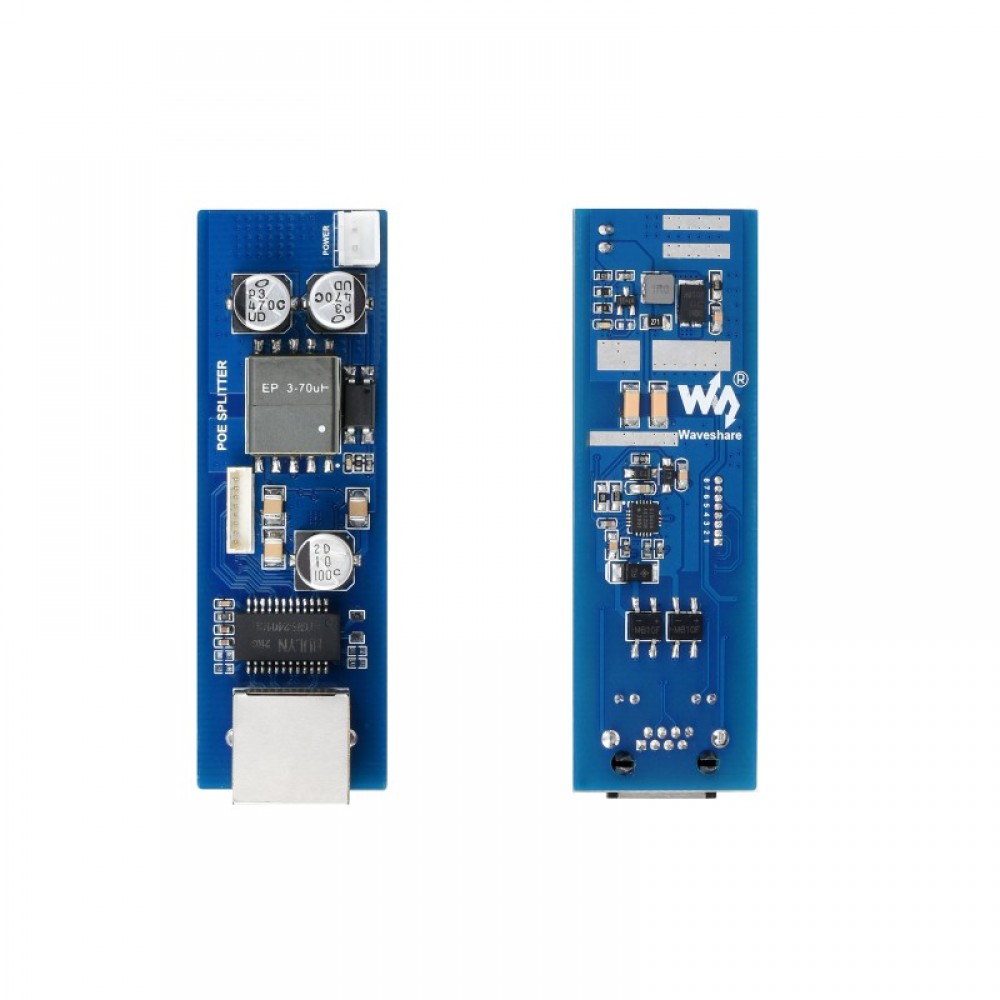

  1. Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance
  2. 10/100/1000Mbps auto-negotiation Ethernet port
  3. 802.3af/at-compliant PoE (Power over Ethernet) standard
  4. Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
  5. 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices

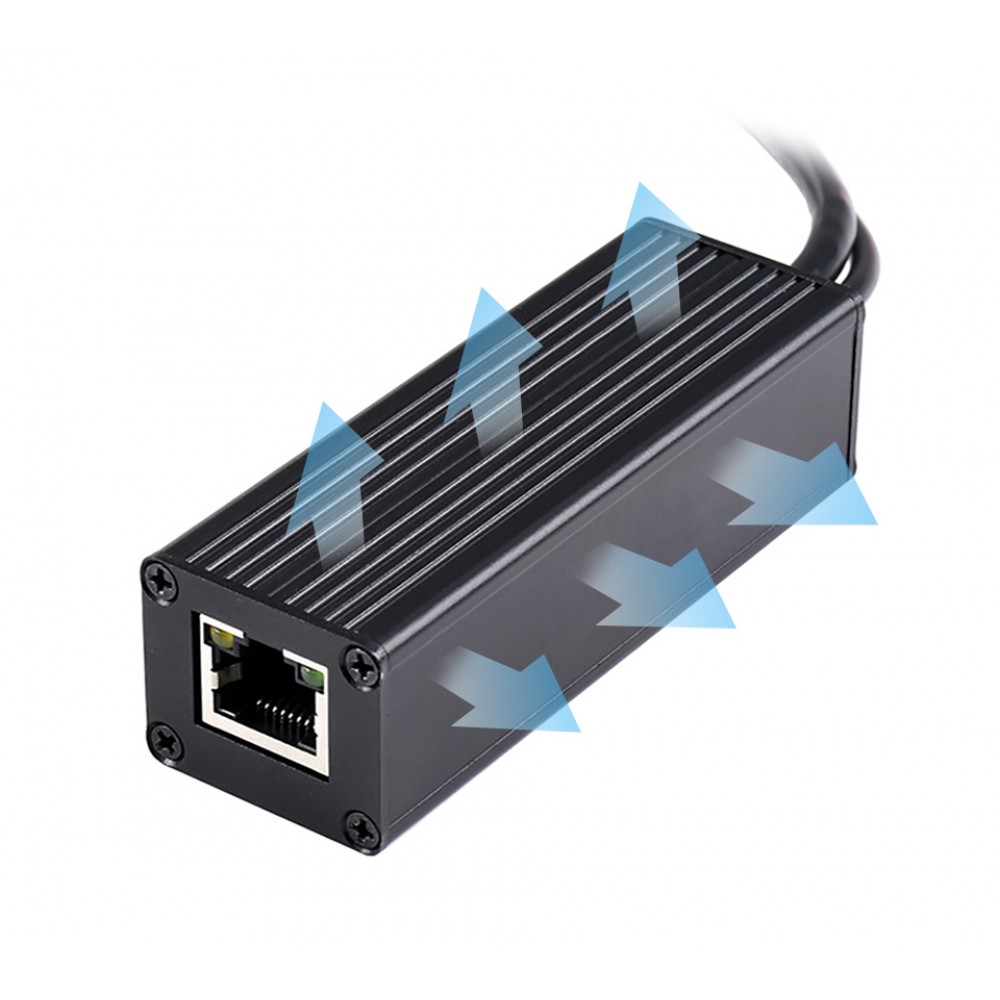

  6. Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation

Package Includes:

1 x POE-SPLITTER-TYPE-C

Additional information

Power supply

supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
PoE Input voltage

37V ~ 57V
Type-C output

5V 2.5A (MAX)
Cable

Cat-5 UTP
Standard

IEEE 802.3 af/at PoE Ethernet
Data rate

10/100/1000Mbps
LED Indicator

PoE power input indicator
Operating temperature

-40℃ ~ 85℃
