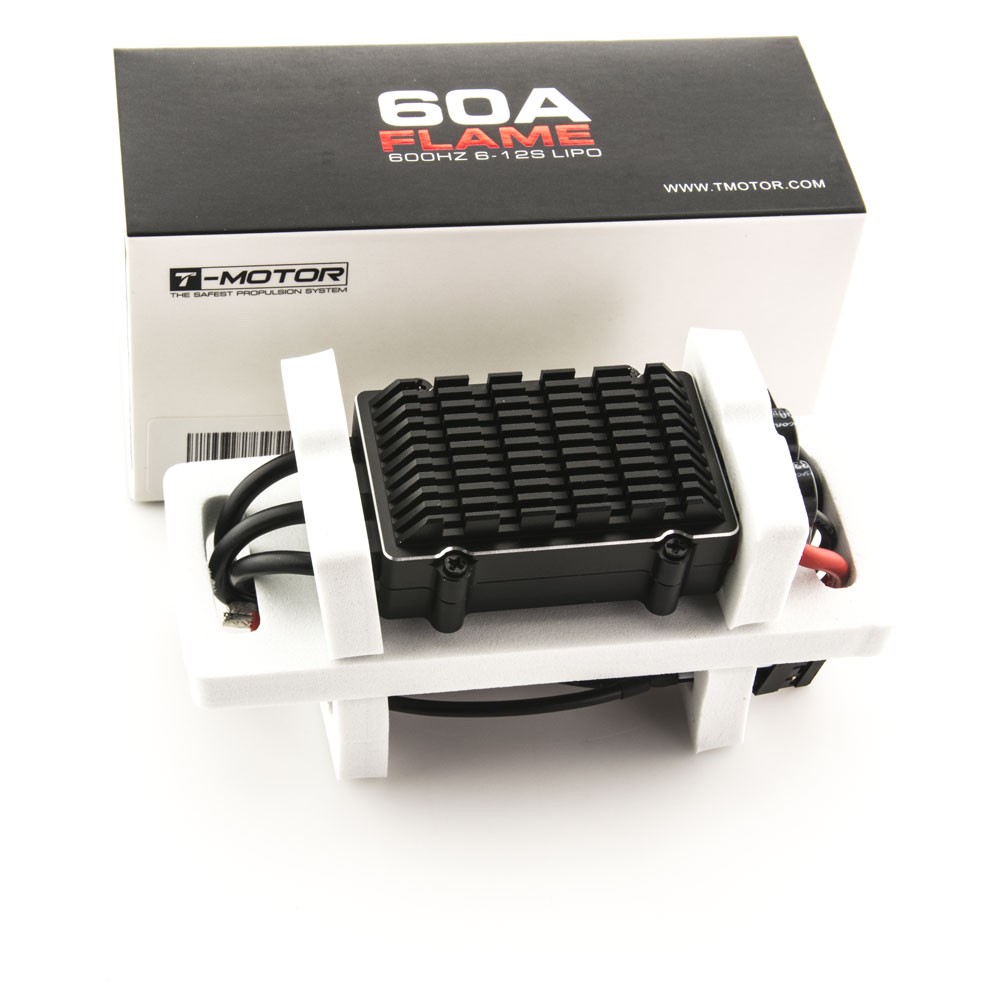

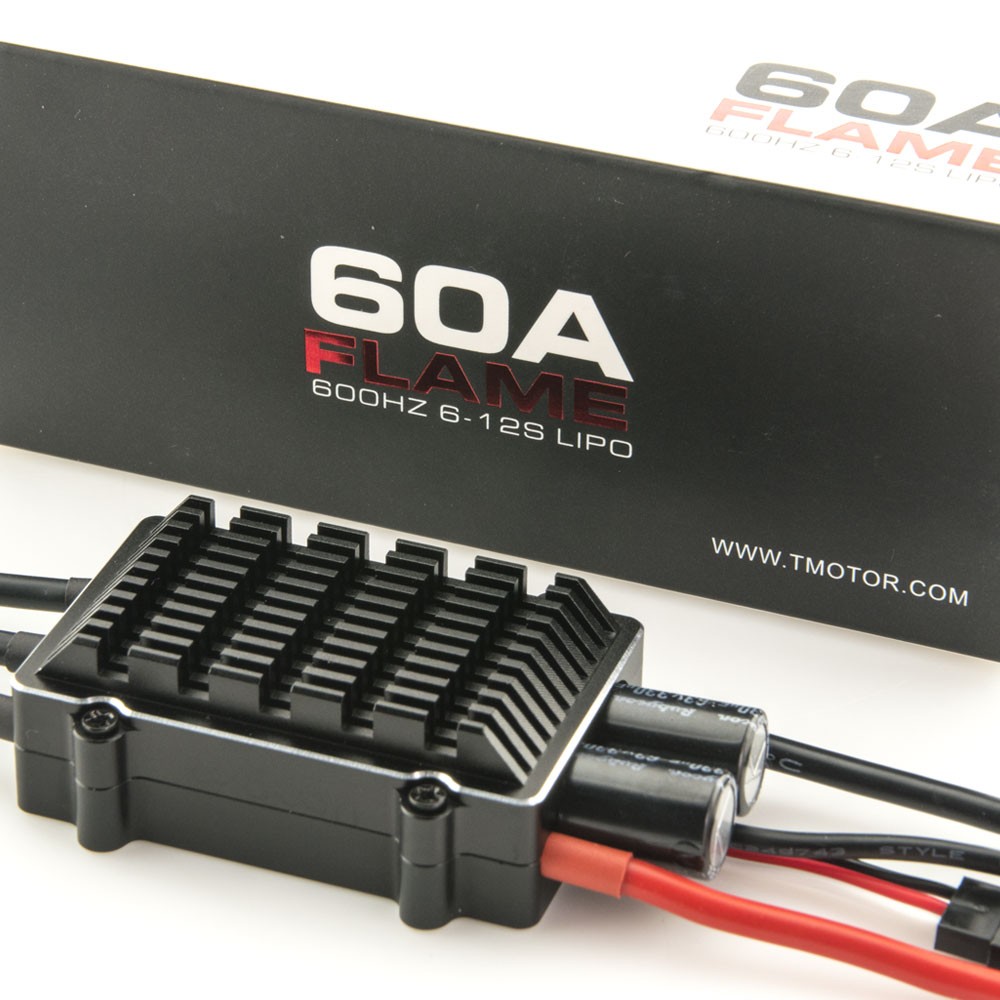

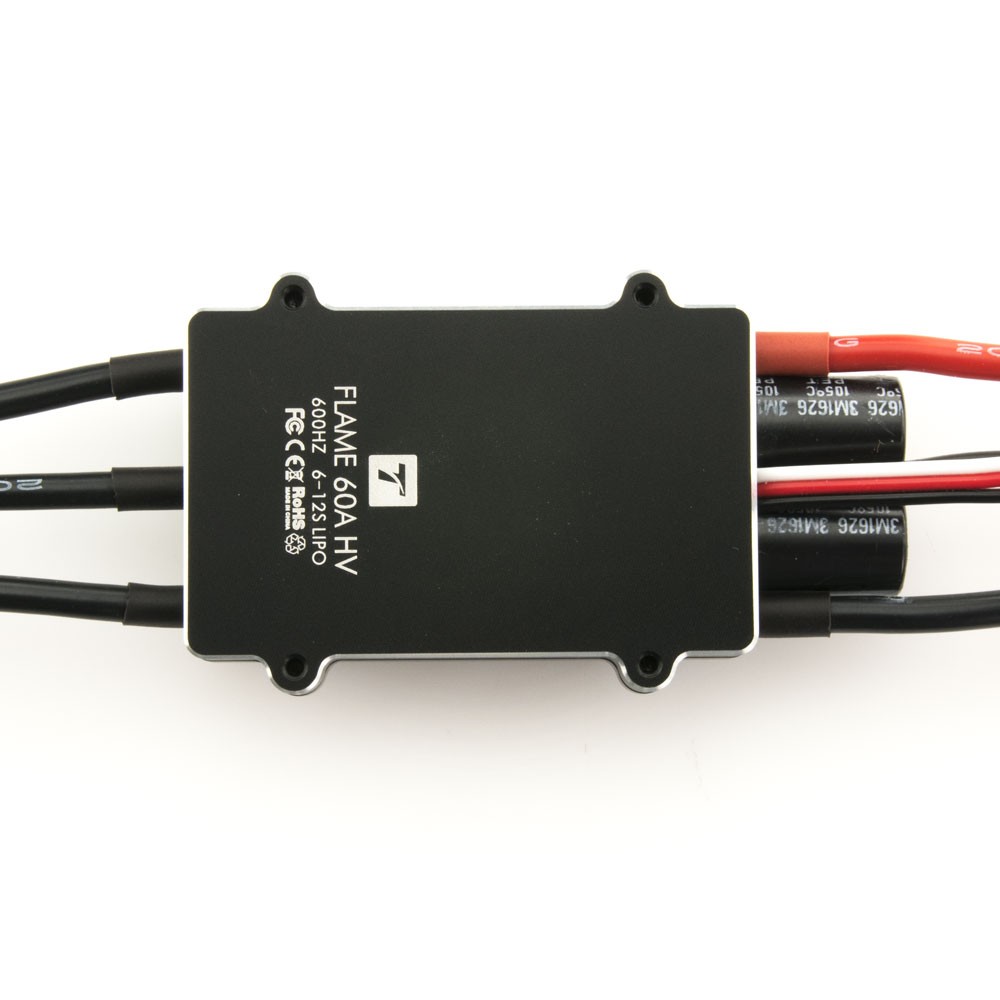

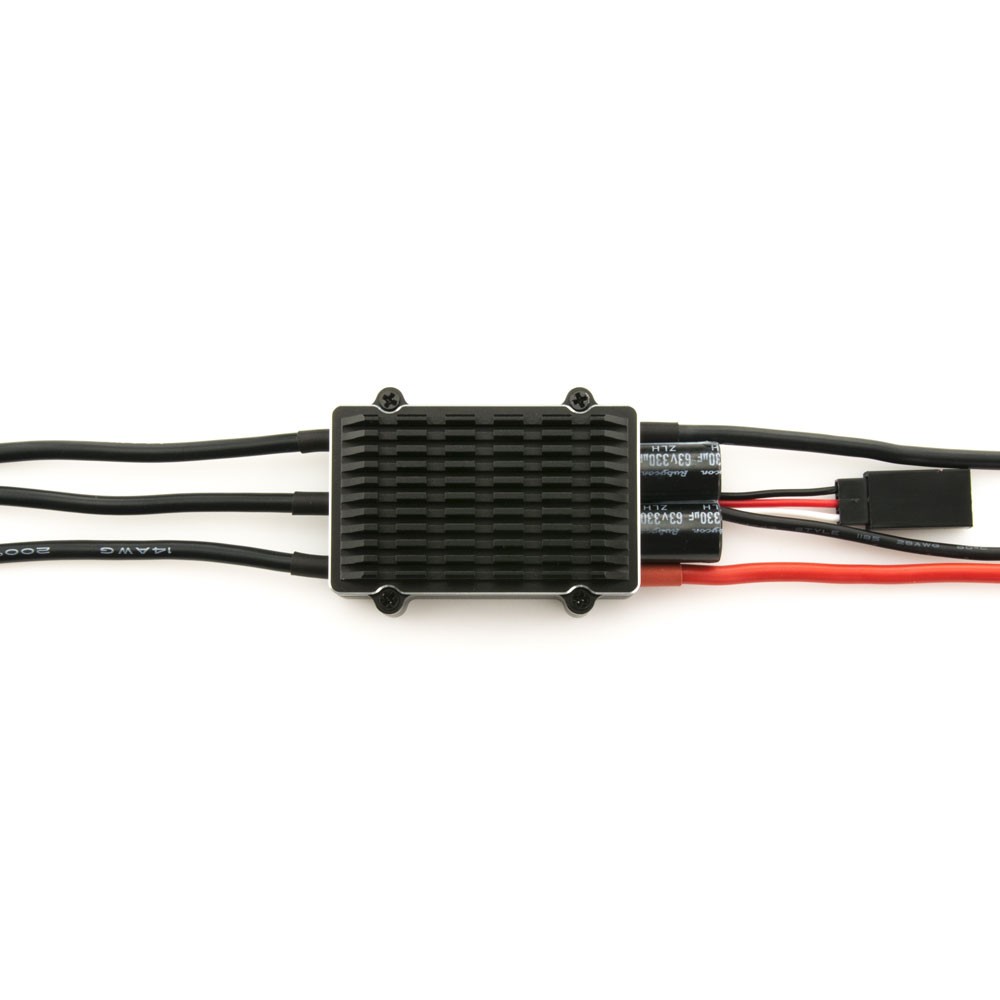

T MOTOR FLAME 60A HV ESC

₹10,265.71 (Including tax)

Output: Continuous 60A, Burst 80A up to 10 Secs.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
BEC: Pentium-60A: 3A / 5V (Switch mode).
Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: Brushless Motor)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹9,752.42 (Including tax)
11 - 20	8%	₹9,444.45 (Including tax)
21 - 40	10%	₹9,239.14 (Including tax)
41 - 100	12%	₹9,033.82 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

11 People watching this product now!

SKU: rz24320851 Categories: Drone Parts, (ESC) Drone Speed Controller

Description

T-Motor 60A Flame ESC. A special core program for multirotor controllers greatly improves throttle response. Specially optimized software for excellent compatibility with disc-type motors. All settings except the timing are preset, making usage simple, highly intelligent and adaptive. Compatible with various flight-control systems and supports a signal frequency of up to 600Hz.

Click here to explore more.

Feature:

A special core program for multirotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
All settings except the timing are preset, making usage simple, highly intelligent and adaptive.
Compatible with various flight-control systems and supports a signal frequency of up to 600Hz.
CNC aluminium alloy enclosure, IP55 PCB with nanotechnology. widely used in a special
domain such as UAV for Agriculture, SearchinQ & etc.
Supporting 6-12S Lipo, efficient heat dissipation, low power consumption,
Cooperating with T-motor products makes better efficiency.
(Note: all throttle signals over 500Hz are non-standard signals) .

Package includes :

1 x T MOTOR FLAME 60A HV ESC

Additional information

Model	T MOTOR FLAME 60A HV ESC
Maximum RPM	210000
Max. Output Current (Amp)	60
Voltage Regulator	5
