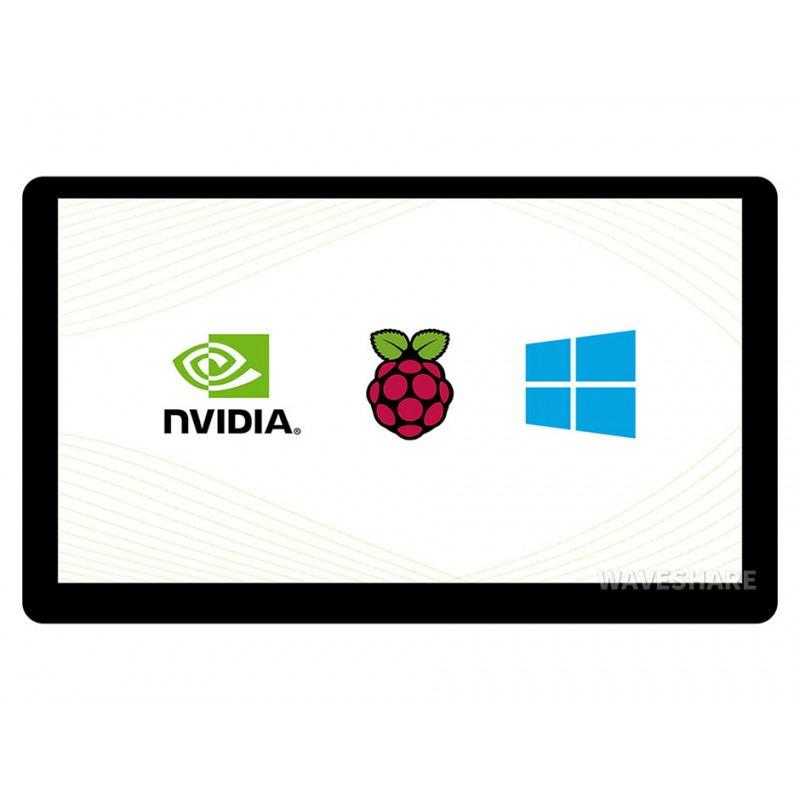

Features:

1. 15.6inch IPS screen,1920×1080 high resolution
2. Toughened glass capacitive touch panel, 6H hardness
3. Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
4. When works with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free
5. When working as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
6. 3.5mm audio jack supports HDMI audio output
7. Embedded ferrite Hi-Fi speaker
8. Also supports VGA input (specific cable is required and should be purchased separately)
9. 100x100mm spacing mounting holes (M4 screw hole) for general wall mount
10. Comes with 75° tilt angle stand

Package Includes:

1 x 15.6inch Capacitive Touch Screen LCD Display

1 x Display setting Control Button Module

1 x HDMI to HDMI Cable (35 CM)

1 x HDMI to Micro-HDMI adapter

1 x USB to Miro-USB cable (30 CM)

1 x Foldable Stand

This is a touch screen driver board that accepts four-wire cables. It’s found in touch-screen displays. The black port of this Driver module will be connected to the display, while the white port will be connected to a Raspberry Pi. We can control the display from the Raspberry Pi. It is a nice controller board that solves this problem by acting as a touch->USB converter and also comes with calibration software. The calibration software supports Windows,iMac, DOS, Linux systems.

Features:

1. Right mouse button Support
2. Drawing line test Multi-language operating window Support
3. Multiple Monitors With the visual rotation supports

Package Includes:

1 x Touch Screen Driver Board Compatible With 4- Wire Cable

This is a Waveshare 4-inch Resistive Touch Screen TFT LCD display, with a resolution of 480×320, SPI interface, and a resistive touch panel, which supports any revision of Raspberry Pi (directly pluggable). This LCD can support Raspbian / Ubuntu / Kali. Supports the FBCP software driver as well, allows config software resolution, and sets up dual-display.

Features:

1. 320×240 hardware resolution
2. Resistive touch control
3. Supports any revision of Raspberry Pi (directly-pluggable)
4. Drivers provided (works with your own Raspbian/Ubuntu/Kali)
5. Supports FBCP software driver as well, allows to config software resolution and set up dual-display
6. Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
7. 4 user keys
8. High-quality immersion gold surface plating
9. Combined with the Raspberry Pi, allows you to:
   1. Take photos by touching (up to 17 camera modes)
   2. Use software keyboard (system interaction without keyboard/mouse)

Specifications:

1. LCD Type : TFT
2. LCD Interface: SPI
3. Touch Screen Type: Resistive
4. Touch Screen Controller: XPT2046
5. Colors: 65536
6. Backlight: LED
7. Resolution : 320*240 (Pixel)

Package Includes:

1 x Waveshare 2.8inch RPi LCD (A), 320×240

This is a Waveshare 7inch 1024×600, Capacitive Touch Display for Raspberry Pi, DSI Interface. Toughened glass capacitive touch panel. It supports Raspberry Pi and can also be used as a computer monitor. This Display is Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free.

Hardware connection:

1. Connect the DSI interface of 7inch DSI LCD to the DSI interface of Raspberry Pi.
2. For easy use, you can fix the Raspberry Pi on the backside of the 7inch DSI LCD with screws

 Note 1) Raspberry pi is not Included in this kit, You have to buy it Separately.

            2) The case is not included.

Click Here to install the drivers for turning this display ON

Features:

1. 7inch TFT screen. 1024×600, hardware resolution
2. Capacitive touch panel, support 5-point touch
3. Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter board is required for CM3/3+
4. DSI interface, refresh rate up to 60Hz.
5. Supports Raspbian/Ubuntu/Kali and WIN 10 IoT, driver-free.
6. Support backlight adjusts by software.

Package Includes:

1 x Waveshare 7inch 1024×600, Capacitive Touch Display for Raspberry Pi, DSI Interface

This is a Waveshare 7inch 800×480 Capacitive Touch Display for Raspberry Pi, DSI Interface. Toughened glass capacitive touch panel. It supports Raspberry Pi and can also be used as a computer monitor. This Display is Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free.

Hardware connection:

1. Connect the DSI interface of 7inch DSI LCD to the DSI interface of Raspberry Pi.
2. For easy use, you can fix the Raspberry Pi on the backside of the 7inch DSI LCD with screws

 Note: Raspberry pi is not Included in this kit, You have to buy it Separately

Features:

1. 7inch TFT screen. 800×480 hardware resolution
2. Capacitive touch panel, support 5-point touch
3. Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter board is required for CM3/3+
4. DSI interface, refresh rate up to 60Hz.
5. Supports Raspbian/Ubuntu/Kali and WIN 10 IoT, driver-free.
6. Support backlight adjusts by software.

Package Includes:

1 x Waveshare 7inch 800×480 Capacitive Touch Display for Raspberry Pi, DSI Interface

5-inch Capacitive Touch Screen LCD, with a resolution of 800×480 and a capacitive touch panel, which supports Raspberry Pi and can also be used as a computer monitor.

Specifications:

Working with PC

This product supports Windows 10/8.1/8/7 OS. For the Windows 10/8.1/8 OS, the touch screen supports multi-touch up to 5 points. For some Windows 7 OS, the touch screen supports single touch only.

1. Connect the TOUCH interface of the LCD to the USB interface of the PC. Wait for a while, the windows will automatically recognize the touch function.

2. If you use HDMI, you need to connect the HDMI interface of LCD to the HDMI port of the PC. About 10s later, you can see the LCD display properly.

Note:

1. When the computer is connected to several different displays at the same time, only this LCD can be used to control the cursor on the main display, so we recommended setting this LCD as the main display.
2. Some of PC cannot support the HDMI screen Hot Plug. In this case, restart the PC can solve.
3. Sometimes LCD will flicker because of undersupplying from the USB cable of the PC. You need to connect an external power supply (5V/2A) to the DC port.

Features:

1. 800×480 hardware resolution
2. Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, single touch, and driver free.
3. Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.

Useful Links:

Getting Started

Package Includes:

1 x 5 inch 800×480, HDMI Capacitive Touch Screen Display

1 x HDMI to HDMI cable (35 cm)

1 x USB to Micro USB cable (40 cm)

1 x HDMI to Micro-HDMI adapter

1 x Screw and Stand-off
