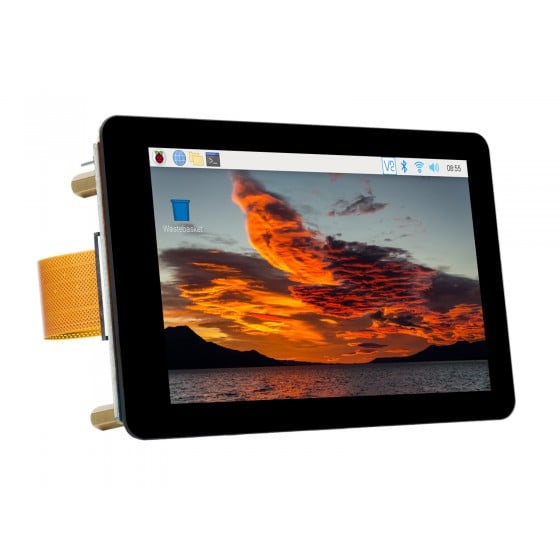

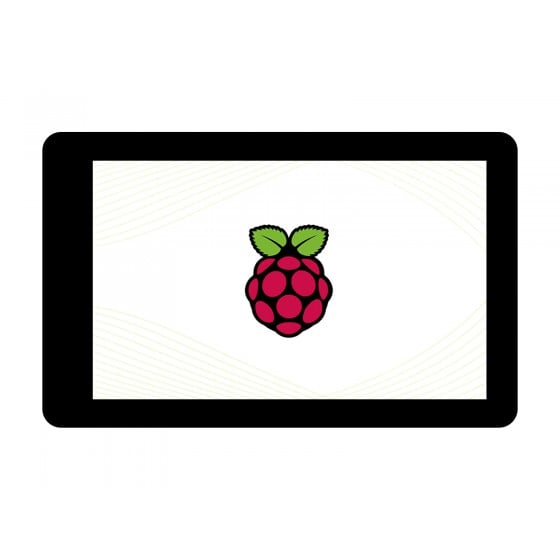

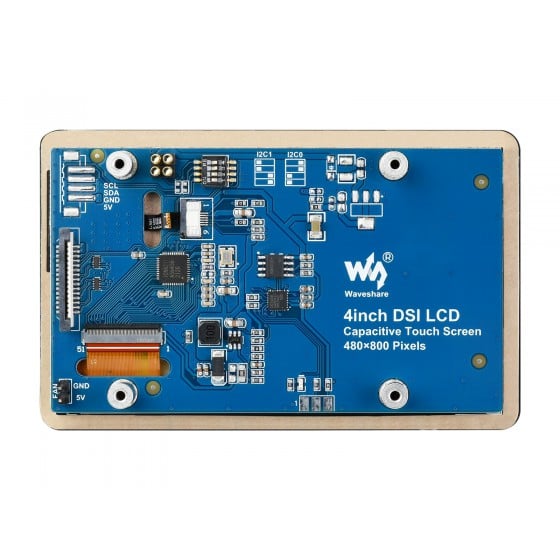

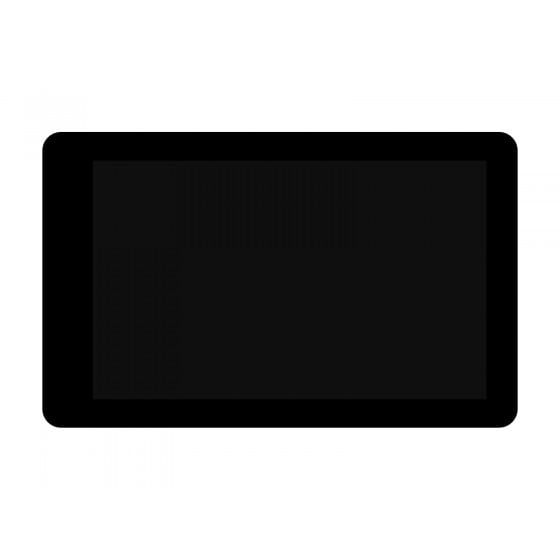

DSI stands for Display Serial Interface and it defines a high-speed serial interface between a host processor and a display module. It is often called as MIPI DSI (mobile industry processor interface display serial interface) because MIPI is the standard Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse. The 480 x 800 display connects to Raspberry Pi via an adapter board that handles power and signal conversion

Features:

1. Touch Type: Capacitate
2. Touch Points: 5 point
3. Touch Port: 12C
4. Touch Panel Tech: Fully Laminated
5. Touch Panel: Toughened Glass

Packages Includes:

1 x Waveshare 4inch Capacitive Touch Display for Raspberry Pi, 480×800 DSI Interface

Grove – 16 x 2 LCD is a perfect I2C LCD display for Arduino and Raspberry Pi with high contrast and easy deployment. 16×2 means two lines and each line has 16 columns, 32 characters in total. With the help of Grove I2C connector, only 2 signal pins and 2 power pins are needed. You don’t even need to care about how to connect these pins. Just plug it into the I2C interface on Seeeduino or Arduino/Raspberry Pi+baseshield via the Grove cable. There won’t be complicated wiring, soldering, worrying about burning the LCD caused by the wrong current limiting resistor.

Features:

1. Display construction: 16 Characters * 2 Lines
2. Display mode: STN
3. On board MCU
4. I2C-bus interface
5. Support English and Japanese fonts

Specifications:

1. Model: 16 x 2 LCD
2. Voltage: 3.3V/5V
3. Interface: I2C
4. Backlight color: Red
5. Font color: Black
6. Dimensions: 8 x 4 x 1mm
7. Weight: 33g

Packages Includes:

1 x Seeed Studio Grove – 16 x 2 LCD (Black on Red)

RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor. RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.

Features:

1. RP2040 MCU chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of onboard Flash memory
4. Type-C connector, keeps it up to date, easier to use
5. Onboard 1.28-inch 240 x 240 resolution, 65K RGB IPS LCD display for clear color pictures
6. Lithium battery recharge/discharge header, suitable for mobile devices

Specifications:

1. Controller: GC9A01A
2. Resolution: 240 (H) RGB x 240(V)
3. Communication interface: SPI
4. Display Size: Φ32.4mm
5. Display Panel: IPS
6. Pixel Size: 0.135 (H) x 0.135 (V) mm
7. Sensor: QMI8658C
8. Accelerometer Resolution: 16 bits
9. Measurement Range (optional): ±2, ±4, ±8, ±16g
10. Gyroscope Resolution: 16 bits
11. Measurement Range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec

Package Includes:

1 x RP2040 MCU Board, With 1.28inch Round LCD,

13.3inch IPS screen, 1920 x 1080 high resolution.Toughened glass cover. Supports Raspberry Pi and can also be used as a computer monitor.This LCD get power from two interfaces. One is the POWER port, you should connect an 12V/1A power adapter to this interface, the operating current of this interface is about 12V/0.6A. And the other one is the TOUCH interface.

You need to connect this interface to the USB interface of master, its operating current is about 5V/80mAThis product supports Windows 11/10/8.1/8/7 OS Connect 12/1A power adapter to the DC interface of LCD, after connecting the backlight will light.Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems on Raspberry Pi.

Features:

1. 13.3inch IPS screen,1920 x 1080 high resolution.
2. Toughened glass capacitive touch panel, 6H hardness.
3. When works with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems.
4. When working as a computer monitor, supports Windows 11/10/8.1/8/7, ten-points touch.
5. Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
6. 3.5mm audio jack, supports HDMI audio output.
7. Embedded ferrite Hi-Fi speaker(no need for external speakers).
8. Also supports VGA input (specific cable is required and should be purchased separately).
9. 100 x 100mm spacing mounting holes (M4 screw hole) for mounting on the wall.
10. Comes with 60° tilt angle stand.

package include:

1 X Waveshare 13.3inch Capacitive Touch Screen LCD with Case

10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface. The Waveshare 10.1inch Capacitive Touch Display is a high-quality display panel with a capacitive touch interface, making it ideal for use in a variety of applications, including industrial automation, digital signage, and gaming.

The display features a 1280×800 pixel resolution with an IPS (in-plane switching) panel, which provides excellent color accuracy, wide viewing angles, and high contrast ratio. The display also uses optical bonding technology to bond the touch panel and the toughened glass panel together, which eliminates the air gap between the panels and reduces the reflection, resulting in improved image clarity and better touch sensitivity.

Features:

1. 10.1-inch IPS screen with a hardware resolution of 1280 x 800.
2. 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
3. Using optical bonding touch technology, the display effect is better.
4. Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
5. Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
6. Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
7. Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.

Specifications:

1. Model: 10.1DP-CAPLCD /
2. Size: 10.1 Inch
3. Viewing angle: 178 Deg
4. Resolution: 1280 x 800 Pixels
5. Touch panel dimensions: 239.00 (H) × 147.00 (V) × 2 (D) mm
6. Display panel dimensions: 228.6 (H) × 143.0 (V) × 2.60 (D) mm
7. Display area: 135.36 (H) × 216.58 (V) mm
8. Pixel pitch: 0.1175 (H) × 0.1088 (V) mm
9. Color gamut: 58% NTSC
10. Maximum brightness: 350 cd/m²
11. Contrast: 800:1 /
12. Backlight: adjustment: OSD menu adjustment
13. Refresh rate: 60 Hz
14. DSI port Standard HDMI port /
15. Power port: 5V Type-C /
16. Input Current: 750-800 mA
17. Power consumption: 4

Package Includes:

1 x Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface

This is a 1.9-inch LCD Display Module with 170×320 Resolution. It supports SPI Interface, IPS, and 262K Colors output quality.

Features:

1. 170×320 resolution, 262K colors, clear and colorful displaying effect
2. SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
3. Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications:

1. Operating Voltage: 3.3v / 5v
2. Resolution: 170 × 320 Pixels
3. Communication Interface: 4-wire Spi
4. Display Size: 22.70 × 42.72 Mm
5. Display Panel Ips Pixel Size: 0.1335 × 0.1335 Mm
6. Driver: ST7789v2
7. Module Size: 27.3 × 51.2mm

Package Includes:

1 x Waveshare 1.9inch LCD Display Module
