Waveshare 7.3inch e-Paper HAT (G), 800 × 480, Red/Yellow/Black/White

20 People watching this product now!

SKU: rz2439996 Category: e-Ink Display

Description

7.3 inch E-Paper HAT (G), 800 × 480, Red/Yellow/Black/White.E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in the clear fluid will move to the sides of microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

Features:

No backlight keeps displaying the last content for a long time even when power down
Ultra-low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

Package Includes:

1 x 7.3inch e-Paper (G)

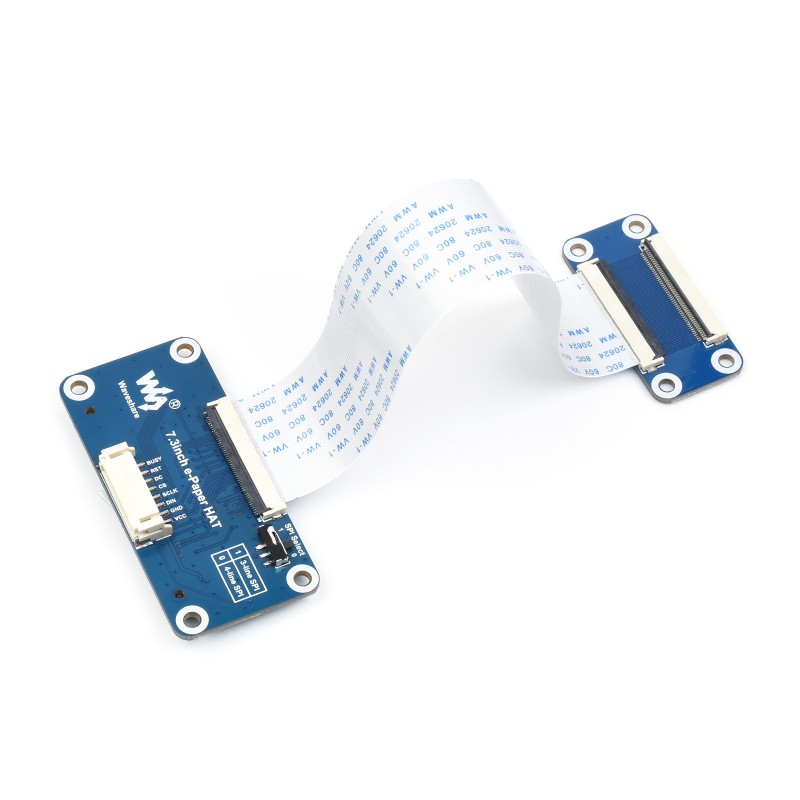

1 x Driver Board and FFC cable

1 x PH2.0 20cm 8 Pin

Additional information

Operating Voltage (VDC)	3.3V/5V
Interface	3-wire SPI , 4-wire SPI
Outline Dimensions	170.2 × 111.2mm
Display Size	160 × 96mm
Dot Pitch	0.2 × 0.2 mm
Resolution	800×480 pixels
Full Refresh Time	16S
Standby Current	<0.01uA (almost none)
Viewing Angle	>170°
