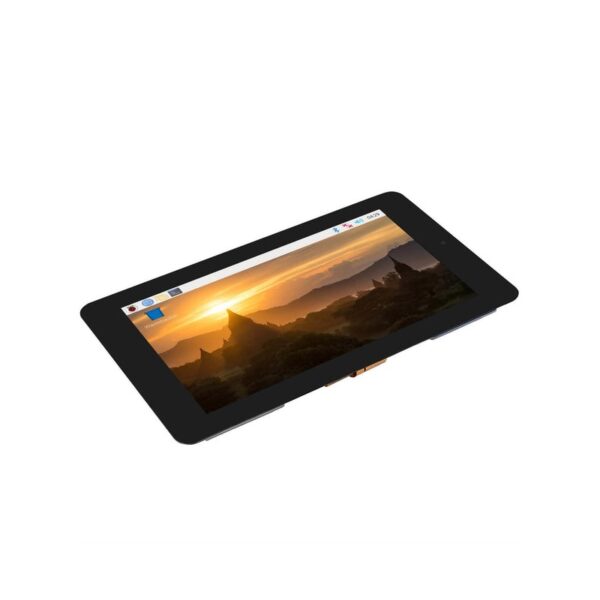

Waveshare 7inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800?480, DSI

19 People watching this product now!

SKU: rz24316764 Category: LCD Displays

Description

This 7″ DSI display for the Raspberry Pi comes with a front built-in 5MP OV5647 camera module which can be used with the same commands as the official Raspberry Pi camera module.

The display is a 7″ panel offering up to 5-point capacitive touch (OS dependant) and 800×480 resolution. The screen connects to your Raspberry Pi via the same DSI ribbon cable and 5V/GND jumper wire method as the official Raspberry Pi display. This leaves the majority of your GPIO pins free for your project.

The display backlight can be adjusted via software/touch and the generous outer bezel also makes this a great option for integrating into your project enclosure. The included camera module connects to your CSI port via the included ribbon cable and uses a 5MP OV5647 sensor which can shoot images up to 2592×1944 and videos up to 1920x1080P @30FPS (full specs below).

The display comes with fixings, ribbon cables and jumper wires.

Features:

7″ DSI display for Raspberry Pi
Supports Raspberry Pi OS driver-free
Compatible with Raspberry Pi boards with a DSI connector – Raspberry Pi 4, 3B+, 3A+, 3
800×480 resolution
5-point capacitive touch
5MP OV5647 Camera
CSI interface, supports 1920x1080p@30, 1280x720p@60, 640×480p@60, 640×480p@90
I2C touch port
Toughened glass panel
Supports backlight adjustment via software
DSI interface, refresh rate up to 60Hz
Low power consumption

Package Includes:

1 x 7inch DSI LCD

1 x FPC 15PIN 1.0 pitch 50mm (opposite sides)

1 x FPC 15PIN 1.0 pitch 120mm (opposite sides)

1 x 2PIN wire 10cm

1 x Screws pack

Additional information

Size	7″
Resolution	800×480
Front Camera	5MP
Display Port	DSI
Camera Port	CSI
Touch Type	Capacitive
Touch Points	5-Points
Touch Port	I2C
Touch Panel	Toughened Glass
Power Consumption	Low Power
Sensor	OV5647
Pixels	5MP
Focal length	3.89mm
Distortion	< 1.5%
CMOS size	1/4"
Aperture	F2.4
Diagonal FoV	72.9°
Depth of Field	~20cm
Image	2592 × 1944 still image resolution
Video	1920×1080p @30 , 1280×720p @60 , 640×480p @60 , 640×480p @90
