₹500.73 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹475.69 (Including tax) |
11 - 20 | 8% | ₹460.68 (Including tax) |
21 - 40 | 10% | ₹450.66 (Including tax) |
41 - 100 | 12% | ₹440.65 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

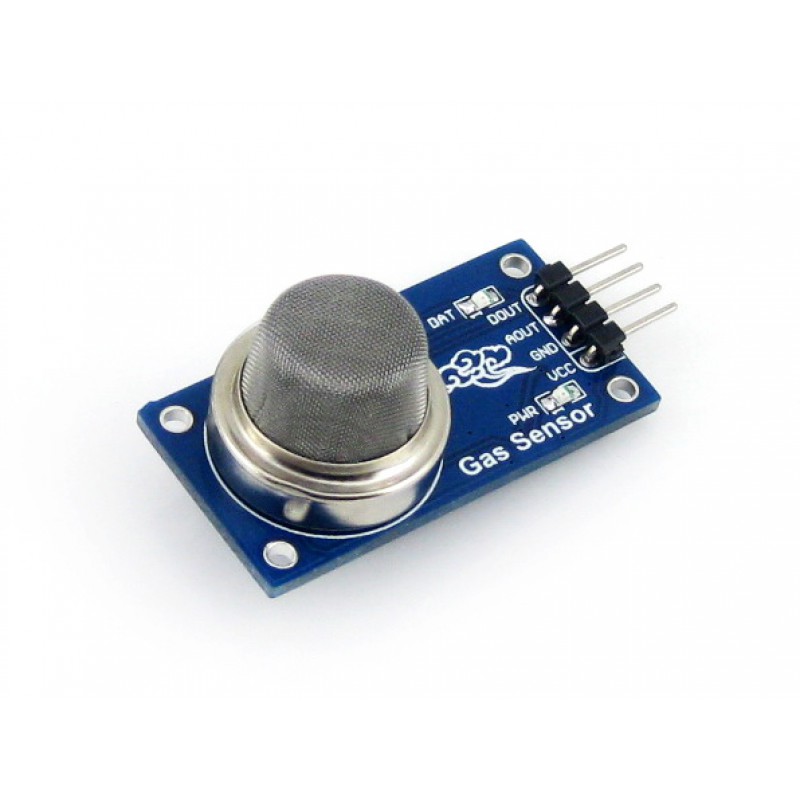

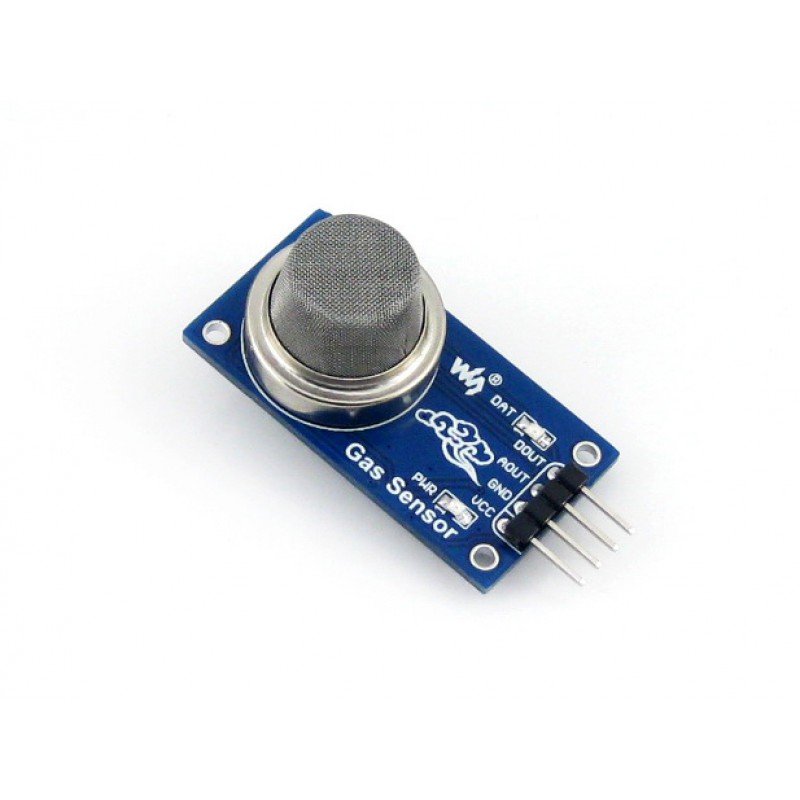

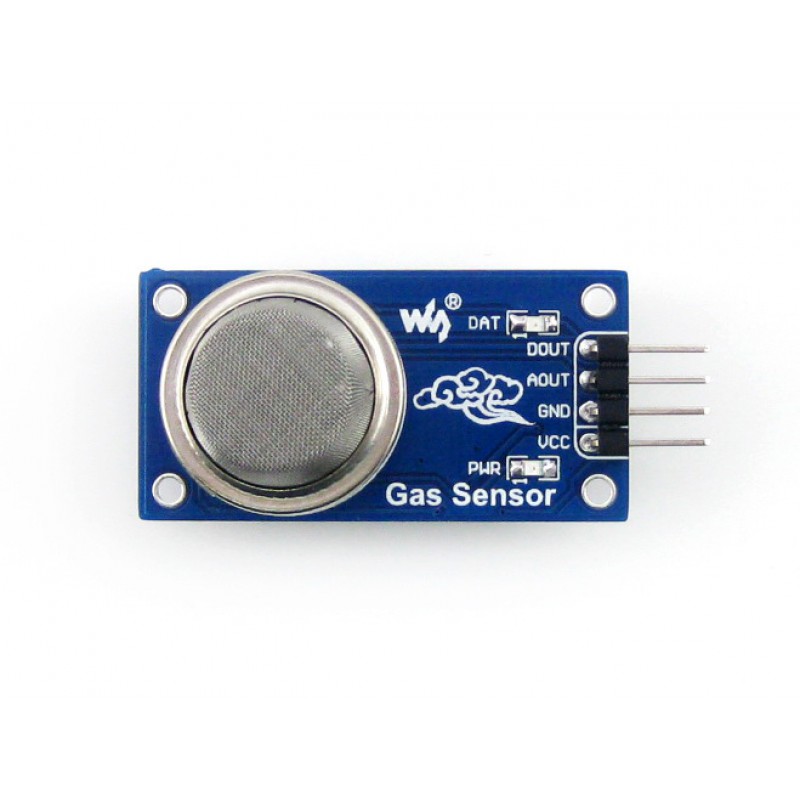

The MQ-7 gas sensor is a gas sensor module that incorporates MQ-7, designed for air quality monitoring. It can be used to measure Carbon Monoxide from Different Types of Gasses, then generate digital signals for triggering air treatment devices.
Carbon Monoxide Monitor

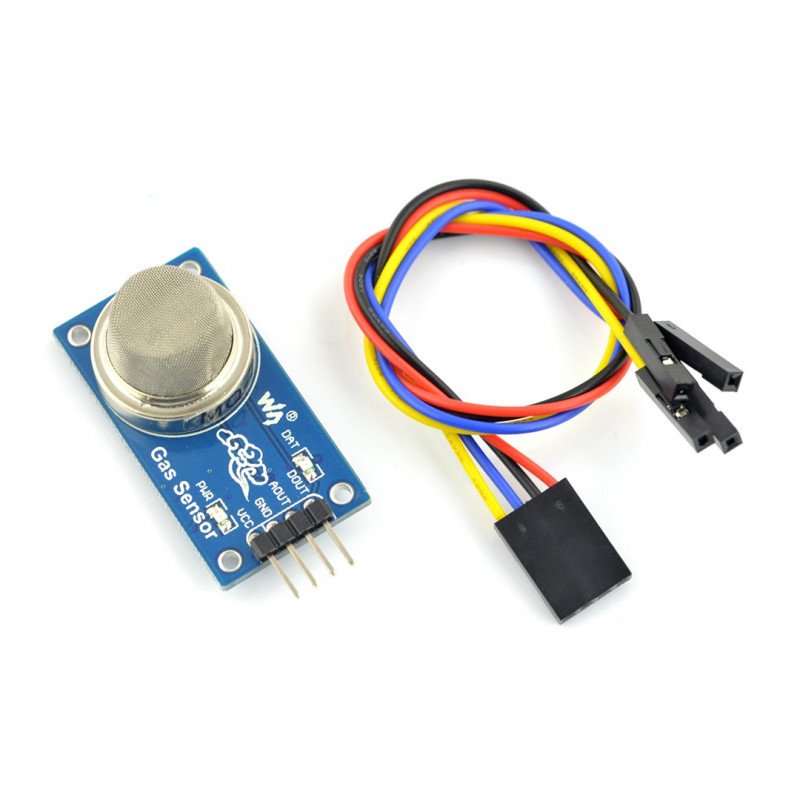

1 x Waveshare MQ-7 Gas Sensor
IC Chip |
MQ-7 |
---|---|
Operating Voltage (VDC) |
2.5~5 |
Detecting Range |
20-2000 ppm |
Opt. Relative Humidity(RH) |
<95% |
Length (mm) |
40 |
Width (mm) |
20 |
Height (mm) |
17 |
Weight (gm) |
7 |
