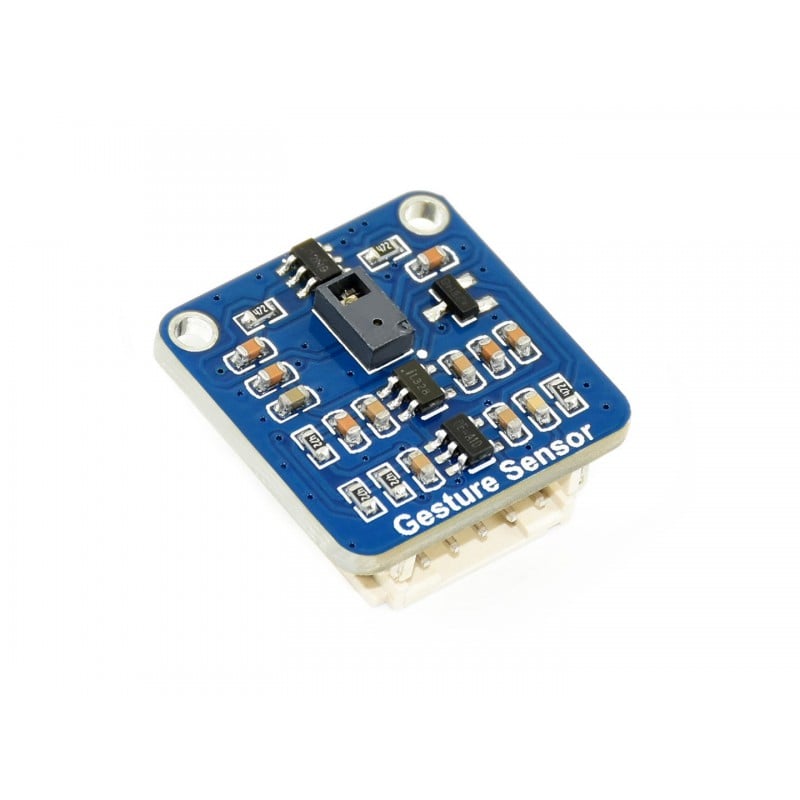

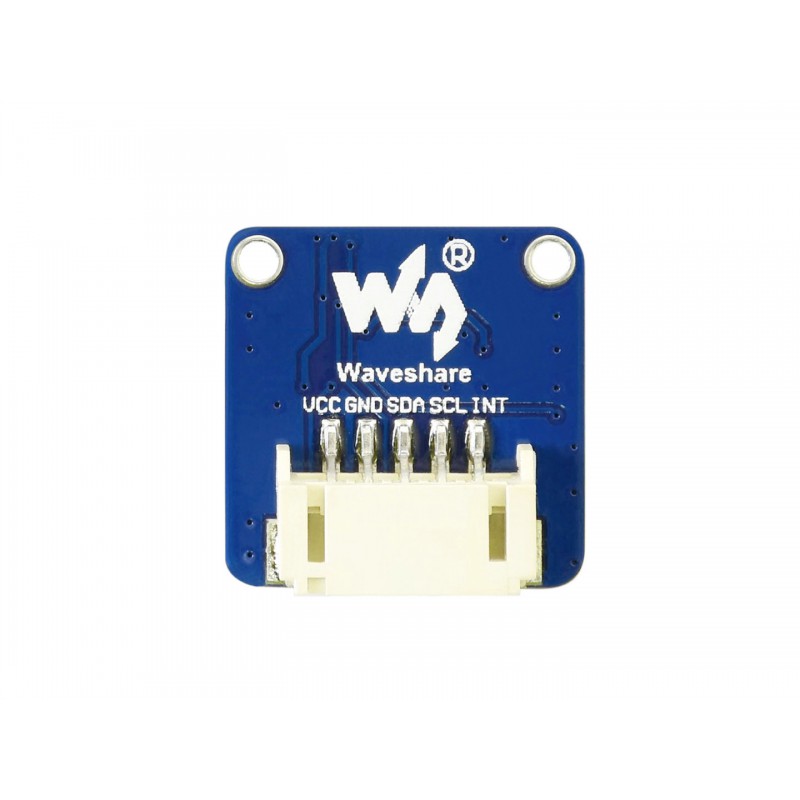

Waveshare PAJ7620U2 Gesture Sensor Recognises up to 9 gestures

SKU: 1219078
In Stock

849.00

  1. Based on PAJ7620U2 sensor
  2. Operating voltage: 3.3V/5V
  3. Communication interface: I2C
  4. Recognition distance: 5cm ~ 15cm
  5. Gesture/Cursor/Image modes
  6. Built-in proximity detection
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

The PAJ7620U2 Gesture Sensor allows to recognize up to 9 gestures via the I2C interface, it is compatible with 3.3V/5V levels.
Compare with solutions like APDS-9960, this module is faster, more accurate, while recognizing more gestures with higher anti-interference capability. It suits for low power applications such as smart home, robot interaction, etc.

The PAC7620 integrates gesture recognition function with general I2C interface into a single chip forming an image analytic sensor system. It can recognize 9 human hand gesticulations such as moving up, down, left, right, forward, backward, circle-clockwise, circle-counter clockwise, and waving. It also offers built-in proximity detection in sensing approaching or departing object from the sensor. The PAC7620 is designed with great flexibility in power-saving mechanism, well suit for low power battery operated HMI devices. The PAJ7620 is packaged into module form in-built with IR LED and optics lens as a complete sensor solution Key Features Gesture/Cursor/Image mode

Application:

  1. Smart home
  2. office and education
  3. Robot interaction
  4. toys
  5. motion sense gaming devices
  6. Automobile Applications
  7. Tablets proportional computer

Features:

  1. Based on PAJ7620U2 sensor
  2. directly recognizes 9 basic gestures
  3. supports gesture interrupt output
  4. Embedded infrared LED and optical lens
  5. be able to work in low-light even dark environment
  6. I2C interface requires only two signal pins to control
  7. Onboard voltage translator, compatible with 3.3V/5V logic level
  8. Gesture/Cursor/Image modes
  9. Built-in proximity detection
  10. Flexible power saving scheme
  11. Ambient light immunity
  12. Ambient light noise cancellation

Package Includes:

1 x Waveshare PAJ7620U2 Gesture Sensor

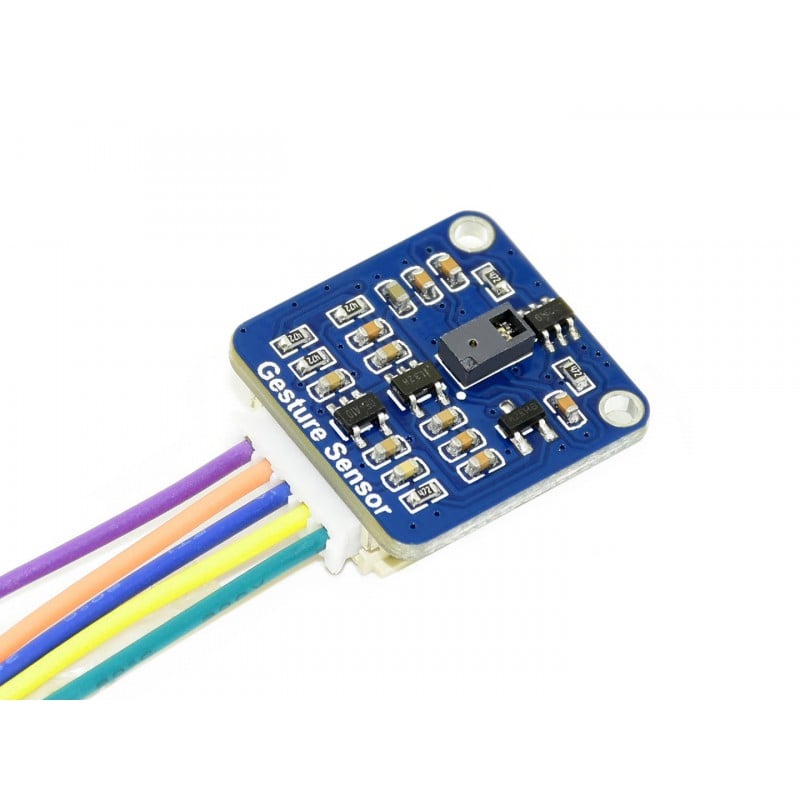

1 x PH2.0 5PIN wire

Additional information

Sensor Type

PAJ7620U2

Operating Voltage (VDC)

3.3V/5V

Communication Interface

4-wire SPI (for Image mode), I2C interface up to 400 Kbit/s

Recognition distance

5cm ~ 15cm

Supported gestures

up, down, left, right, forward, backward, clockwise, anticlockwise, shake

Recognition rate

240Hz

Viewing Angle

60° (diagonal)

Ambient light immunity

<100k Lux

Mounting Holes Diameter (mm)

2.0mm

Gaming Mode

60~1200°/s in

Dimensional Accuracy (mm)

20mm × 20mm

Gesture speed

60~600°/s in Normal Mode

SPI interface range from

22~48 MHz (Frame subtraction mode) 44~48 MHz (Raw data mode)
