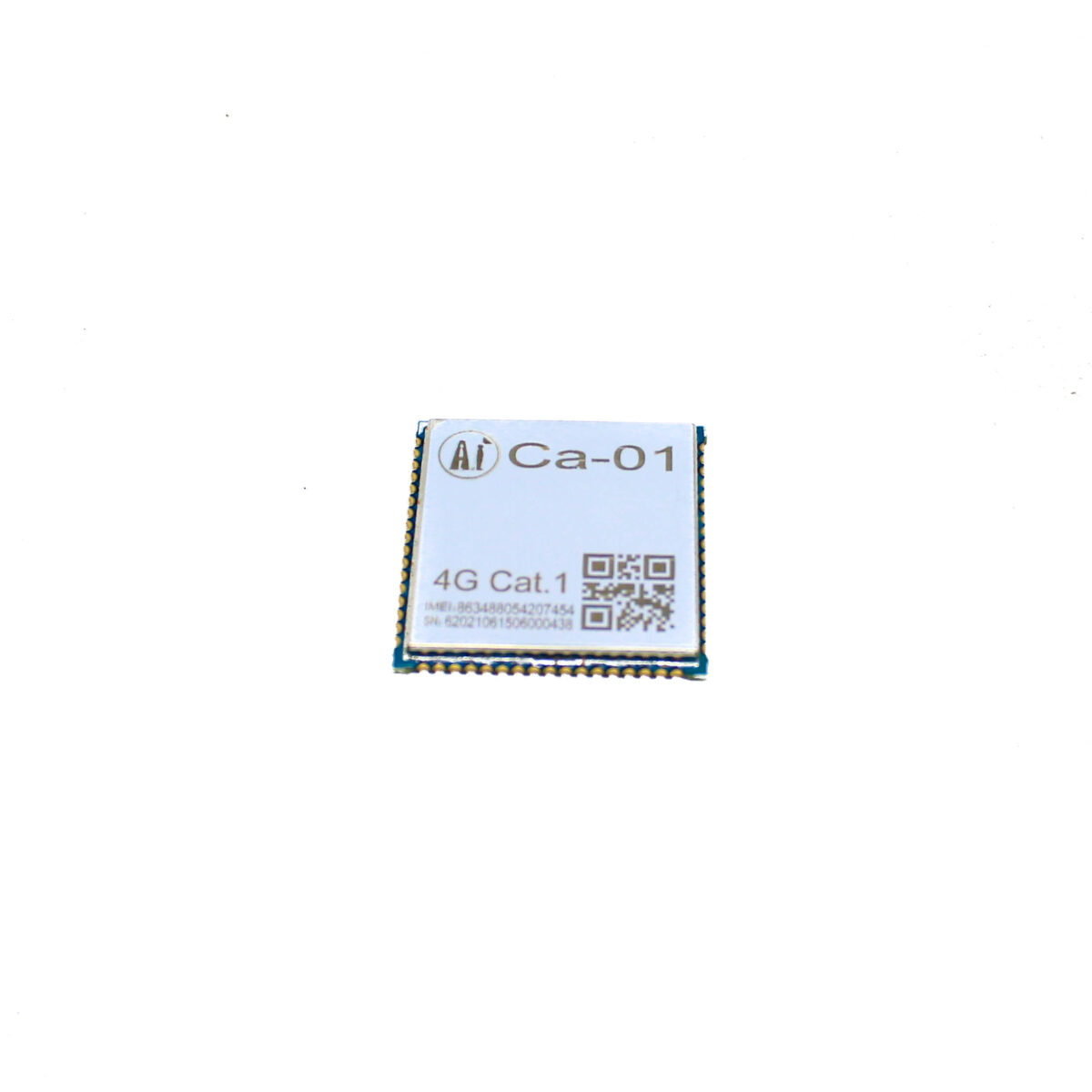

Ai-Thinker Ca-01 4G Cat.1 LTE Module

SKU: 1225292
In Stock

1,199.00

  1. Module: Ca01
  2. Communication standard: 4G
  3. Applicable frequency band: LTE-FDD: B1/B3/B5/B8, LTE-TDD: B34/B38/B39/B40/B41
  4. General characteristics: 3GPP E-UTRA Release 13
  5. bandwidth:1.4/3/5/10/15/20MHz
  6. Normal working temperature: -35 ° C ~ + 70 ° C
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It uses Ziguang’s UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module, which can adapt to different operators and products Maximum flexibility in product design.


Features:

  1. Support Cat.1
  2. Support VoLTE
  3. Support 1.4 ~ 20MHz RF bandwidth
  4. LTE-TDD: uplink and downlink configuration 2
  5. Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps
  6. LTE-TDD: uplink and downlink configuration 1
  7. Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps
  8. Network protocol features
  9. Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/
  10. In development: SMTP/SMTPS/MMS/DTMF
  11. USIM card interface
  12. Support USIM / SIM card: 1.8V and 3V
  13. USB interface
  14. Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps
  15. Used for AT commands, data transmission, software debugging, software upgrade
  16. USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems
  17. Serial port

Packages Includes:

1 x Ai-Thinker Ca-01 4G Cat.1 LTE Module

Additional information

Module

Ca01

Communication standard

4G

Applicable frequency band

LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41

General characteristics

3GPP E-UTRA Release 13

bandwidth

1.4/3/5/10/15/20MHz

Module size

24.0mm X 24.0mm x 2.3mm

Packaging method

stamp hole + LGA

Module weight

about 2.6g

Power supply voltage

Power supply voltage: 3.3V ~ 4.3V, typical value 3.8V

Supports

Support VoLTE, Support Bluetooth, Support Wi-Fi positioning, Support SPI Support MIPI Camera, Support SPI LCD, Support 6×6 scan keyboard

temperature range

Normal working temperature: -35 ° C ~ + 70 ° C

Limit working temperature

-40 ° C ~ + 85 ° C

LTE-TDD

Class3(23dBm+1/-3dB)

LTE-FDD

Class3(23dBm+ -2dB)

UART 1

For AT commands and data transmission "Maximum baud rate 921600bps, default 115200bps ”Support hardware flow control (CTS / RTS)

UART2

UART2: "For debugging information output" Baud rate 115200bps

HOST UART

used to output debugging information

ZSP UART

ZSP UART: used to output debugging information

pins:

117
