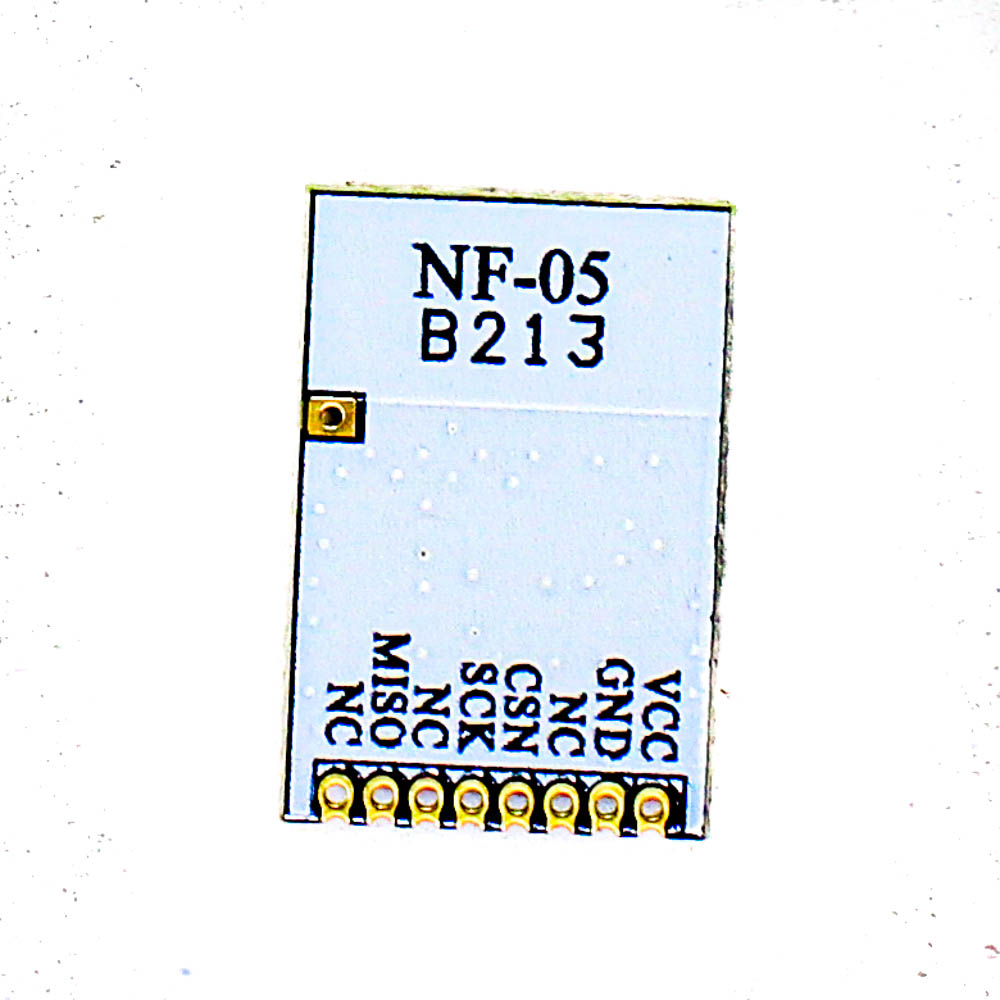

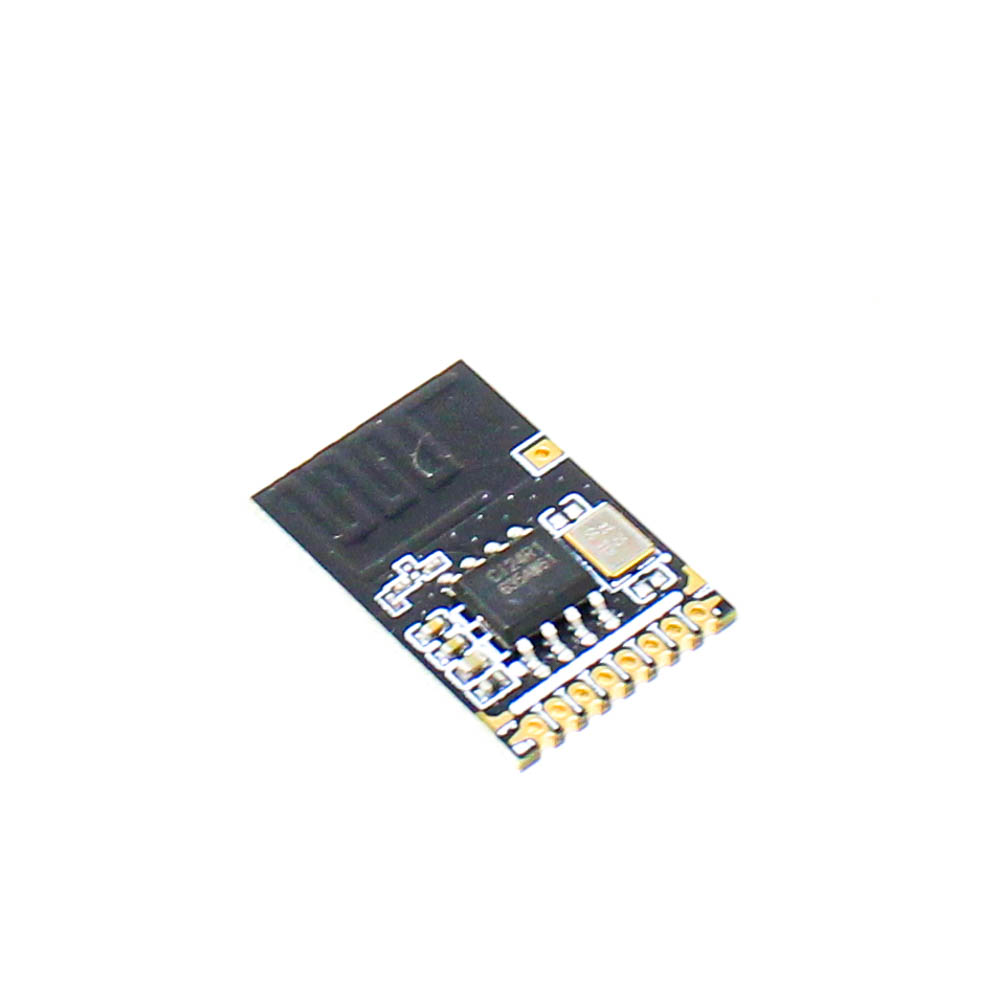

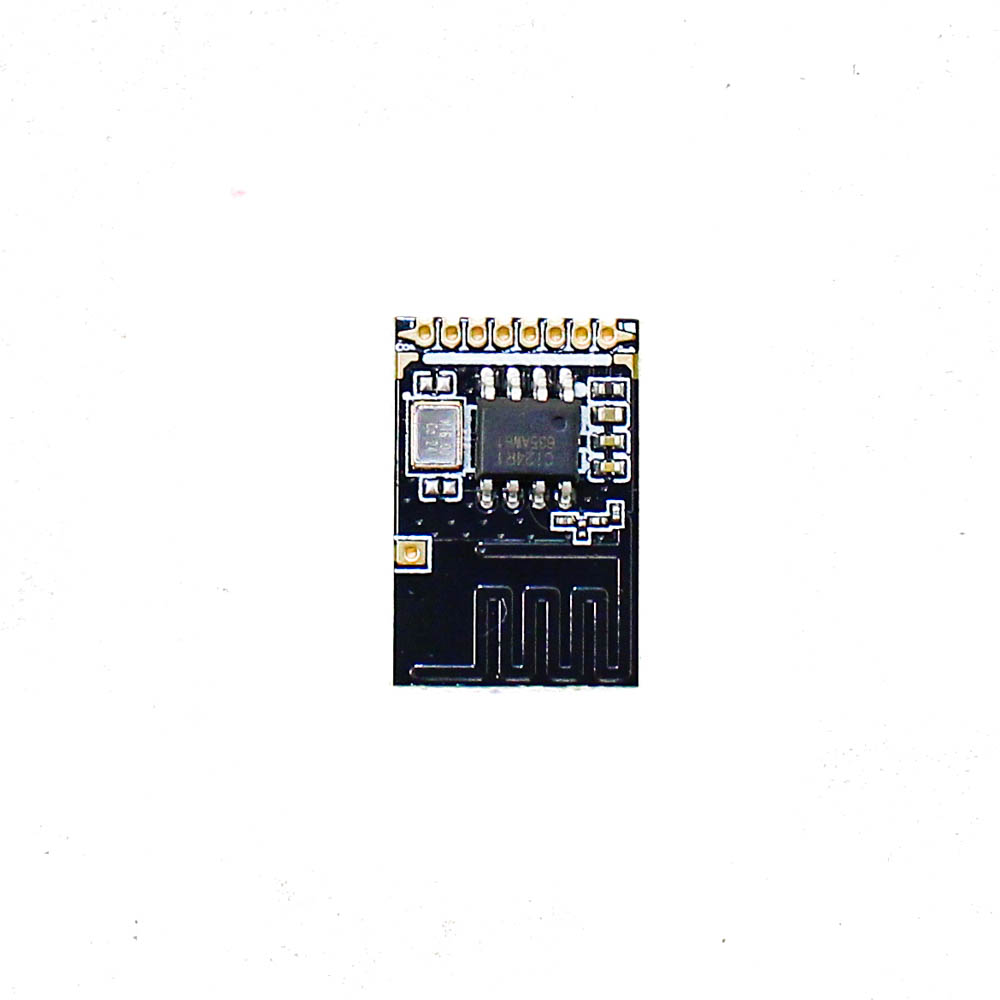

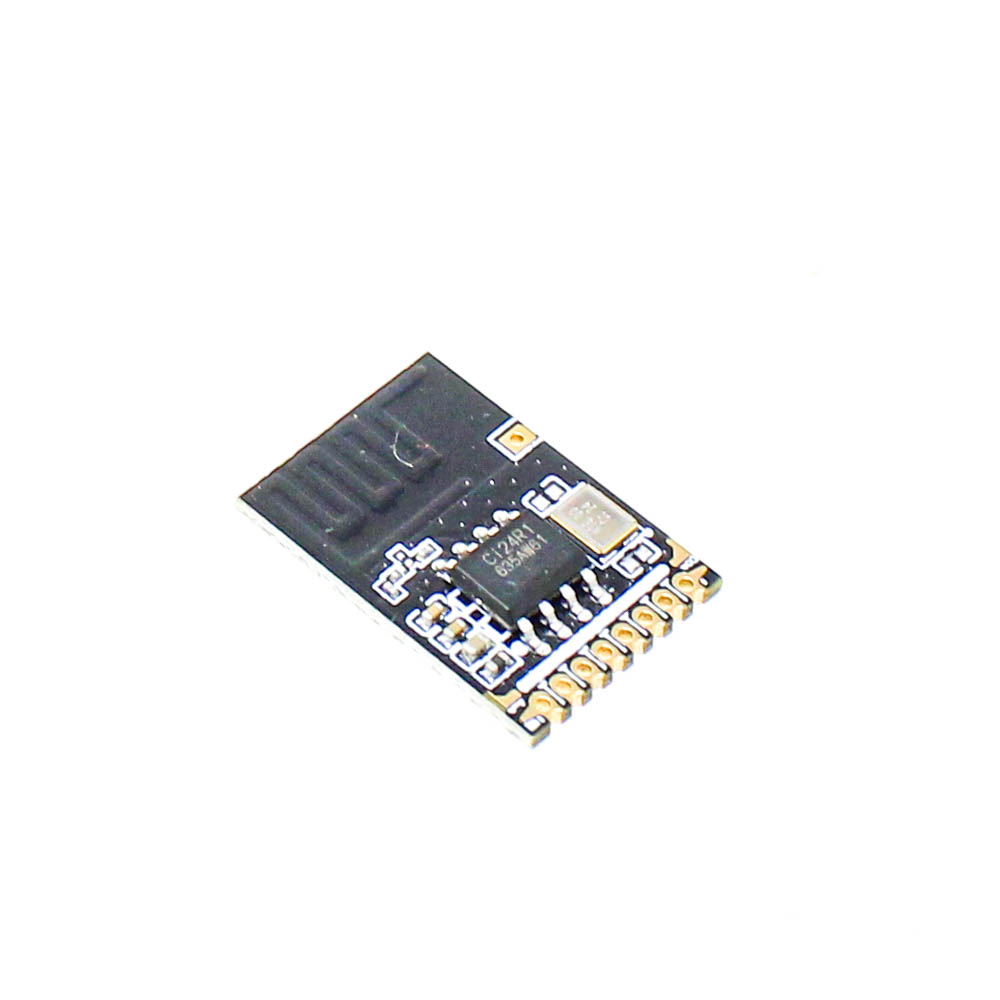

Ai-Thinker NF-05 module
₹93.63 (Including tax)
- Product: Core processor chip
- Model: NF-05
- Brand: Ai-Thinker
- Power Supply: 3.6V
- Current: 100mA
- Working frequency: 2.4GHz ISM band
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹88.94 (Including tax) |
| 11 - 20 | 8% | ₹86.14 (Including tax) |
| 21 - 40 | 10% | ₹84.28 (Including tax) |
| 41 - 100 | 12% | ₹82.39 (Including tax) |
In stock (can be backordered)
12
People watching this product now!
Description
NF-05 is a 2.4GHz module developed by Shenzhen Ai-Thinker Technology Co., LTD. Thecoreprocessor chip Ci24R1 is a high-performance 2.4ghz GFSK wireless transceiver chip, designed for a wireless mouse, keyboards, wireless remote control, motion sensing devices, smart power
grid, smart home, wireless audio, wireless data transmission, and other applications. NF-05chips have industry-leading low power performance and rf performance, supportingGFSK/FSK protocols. The chip integrates high PSRR LDO and an intelligent ARQbasebandprotocol engine. The chip has a fast startup time of less than 160uS and ultra-low-power
consumption of up to 2uA, which can meet the power requirements of various application scenarios. Few peripheral devices greatly reduce the application cost of the system. NF-05 module rate: 250Kbps, 1Mbps, 2Mbps. Support broadcast, and channel selection.
Features:
- Fast start selectable recovery time<160uS
- Low Power consuptions
- High internal integration PSRR LDO
- Maximum 10MHz two-wire SPI interface
- Internal integration of intelligent ARQ baseband protocol engine
- The hardware for sending and receiving data is interrupted
- Supports 1bit RSSI output
- Few peripheral devices, reduce the system application cost
- Packaged SMD-8
Specifications:
- Product: Core processor chip
- Model: NF-05
- Brand: Ai-Thinker
- Power Supply: 3.6V
- Current: 100mA
- Working frequency: 2.4GHz ISM band
- Debug Mode: GFSK/FSK
- Power consumption：2uA
- Data Rate: 2Mbps/1Mbps/250Kbps
- Operating temperature: -40 ℃ ~ 85 ℃
- Storage temperature: -40 ℃ ~ 125 ℃ , < 90%RH
- Antenna On board antenna
- Interface: SPI
Packages Includes:
1 x Ai-Thinker NF-05 module
