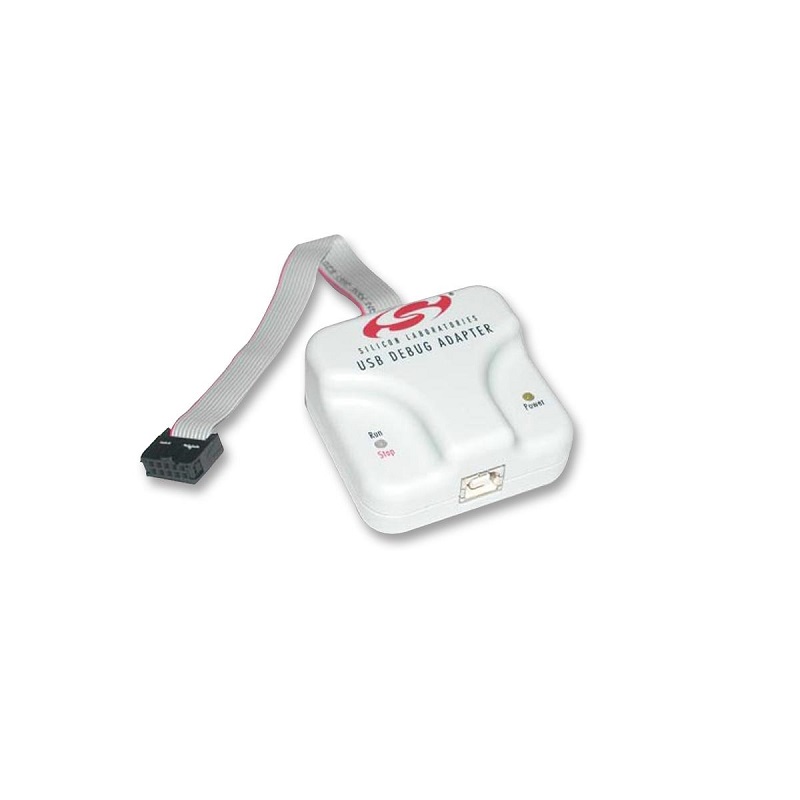

DEBUGADPTR1-USB is a USB debug adaptor that provides the interface between the PC’s USB port and the C8051Fxxx’s in-system debug/programming circuitry. The attached 10 pin debug ribbon cable connects the adapter to the target board and the target device’s debug interface signals. Power is provided to the adaptor from the USB connection to the PC.

Note: For more technical details about the product, please go through the attachment section.

Features:

1. Supports both Silicon Labs JTAG and C2 debug interfaces
2. 10-pin debug ribbon cable connects the adapter to the target board
3. USB powered
4. USB cable is included as part of the USB Debug Adapter

Package Includes:

1 x DEBUGADPTR1-USB USB Debug Adapter, 8-Bit, Interface Between PC’s USB Port & Target Device’s Debug

The 99 0409 00 04 is a 4-contact 125V/3A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PBT (UL94V-0) contact body and PA (UL94VH-B) housing. The 712 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3.5 to 5mm cable outlet.

Features:

1. 1500V Rated impulse voltage
2. <=3mR Volume resistivity
3. >500 mating cycles Mechanical operation
4. IP67 Protection rating

Specifications:

1. Product Range: 712 Series
2. Circular Connector Shell Style: Cable Mount Plug
3. No. of Contacts: 4Contacts
4. Circular Contact Type: Solder Pin
5. Connector Body Material: Nylon (Polyamide) Body
6. Contact Material: Brass
7. Contact Plating: Gold

Package Includes:

1 x 99 0409 00 04-CIRCULAR CONNECTOR, PLUG, 4 WA

The 3-640441-2 from TE Connectivity is an MTA-100 series receptacle. It is a two-position receptacle with a pitch spacing of 2.54mm and used with MTA.100 header & MTA.100 IDC posted connector.

Features:

1. Rated current is 5A and rated voltage is 250VAC
2. The base material of contact is copper alloy with tin plating
3. Housing material is nylon
4. Single row housing
5. High operating temperature range of -55°C to 105°C
6. UL E28476 and CSA LR7189 approved

Specifications:

1. IDC Connector Type: IDC Receptacle
2. Contact Gender: Female
3. Pitch Spacing: 2.54mm
4. No. of Rows: 1 Row
5. No. of Contacts: 2Contacts
6. Connector Mounting: Cable Mount
7. Contact Material: Copper Alloy
8. Contact Plating: Tin Plated Contacts
9. Product Range: MTA-100 Series

Package Includes:

1 x 3-640441-2-HOUSING, CRIMP, RECEPTACLE, 2.

Mezzanine Connector, 5mm Height, COM Express, Header, 0.5 mm, 2 Rows, 220 Contacts, Surface Mount

Features:

1. Easy to use
2. Easy to install
3. Good Quality product

Specifications:

1. No. of contacts: 220 / 440
2. Termination technology: SMT
3. Operating temperature range: – 40 °C to + 85 °C
4. Insulator material: LCP, UL 94 V-0
5. Contact material: Copper alloy
6. Plating: Au over Ni
7. Grid: 0.5 mm
8. Mating force per pin max.: 0.9 N
9. Separating force per pin min.: 0.1 N
10. Durability: 30 mating cycles
11. Coplanarity max.: 0.1 mm
12. Operational current max.: 0.5 A
13. Operating voltage: 50 VAC
14. Contact resistance max.: 75 mΩ
15. Insulation resistance > 100 MΩ
16. Test voltage: 200 VAC
17. Data transfer rate: 5 Gbit/s (8 Gbit/s)
18. Soldering temperature: 260 °C per J-STD-020

Package Includes:

1 x 401-51101-51-CONN, STACKING, PLUG, 5MM, 220

The 3-640442-4 is a 4-way 1-row Housing with nylon body and tin-plated copper alloy contacts, 2.54mm pitch spacing, inline contact layout and IDC/IDT termination. This housing is suitable for use with wire/cable.

Features:

1. UL94V-2 Flammability rating
2. 250VAC Operating voltage
3. 5A Contact current rating
4. 80 to 200µinch Plating thickness of contact mating area

Specifications:

1. IDC Connector Type: IDC Receptacle
2. Contact Gender: Female
3. Pitch Spacing: 2.54mm
4. No. of Rows: 1 Row
5. No. of Contacts: 4Contacts
6. Connector Mounting: Cable Mount
7. Contact Material: Copper Alloy
8. Contact Plating: Tin Plated Contacts
9. Product Range: MTA-100 Series

Package Includes:

1 x 3-640442-4-HOUSING, 26AWG, 4WAY

The MC-44PLCC-SMT is a 44-pin surface mount PLCC Socket with brown PBT/glass reinforced insulator, phosphor bronze contacts and tin over copper underplate overall plating.

Features:

1. 30mR Contact resistance
2. 1000MR Insulation resistance
3. 250VAC Maximum operating voltage
4. 1A Maximum current rating
5. 500VAC/minute Dielectric withstanding voltage
6. -55 to +105°C Operating temperature
7. Multicomp products are rated 4.6 out of 5 stars
8. 12 month limited warranty *view Terms & Conditions for details
9. 96% of customers would recommend to a friend

Specifications:

1. No. of Contacts: 44Contacts
2. Connector Type: PLCC Socket
3. Pitch Spacing: 1.27mm
4. Contact Material: Phosphor Bronze
5. Contact Plating: Tin Plated Contacts

Package Includes:

1 x MC-44PLCC-SMT-SOCKET, PLCC, 44 PIN, SMD
