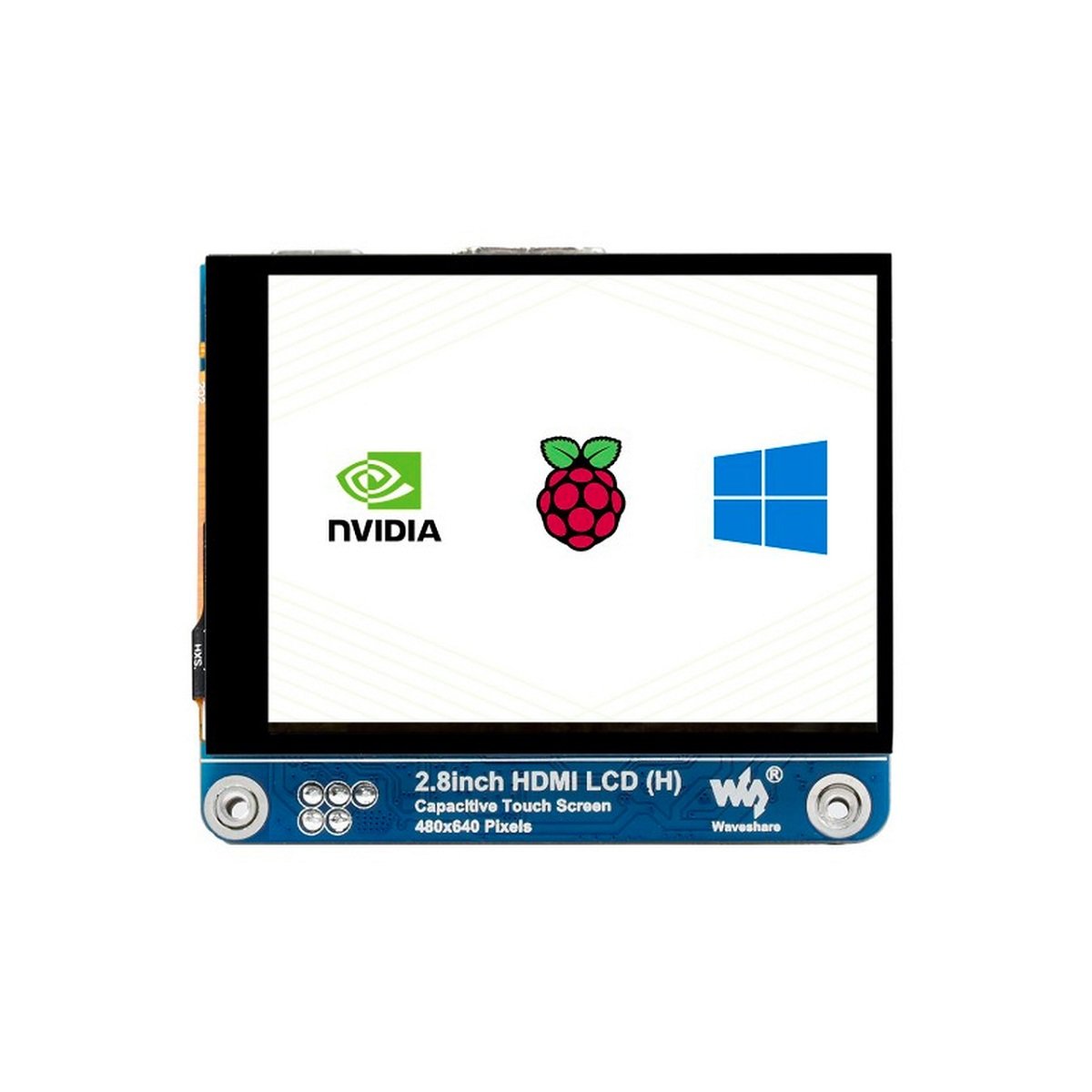

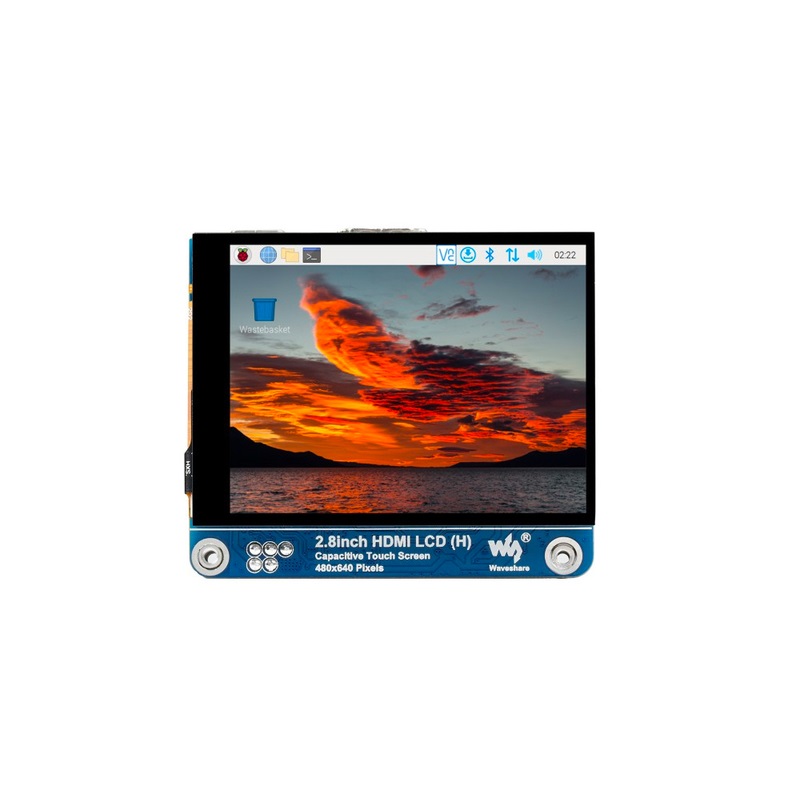

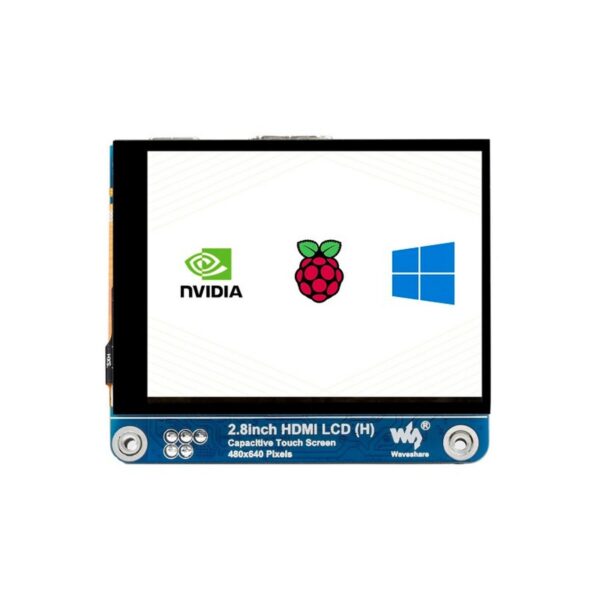

Waveshare 2.8inch HDMI IPS LCD Display

17 People watching this product now!

SKU: rz24316839 Category: LCD Displays

Description

480×640, 2.8inch Capacitive Touch Screen LCD, HDMI interface, supports various systems. It supports Raspberry Pi and Jetson nano and also can be used as a computer monitor.

Getting Started With Waveshare 2.8inch HDMI IPS LCD Display

Useful link:

To do the Hardware setup, please follow this tutorial.
To do the Software setup, please follow this tutorial.

Features:

2.8-inch IPS screen with a hardware resolution of 480×640.

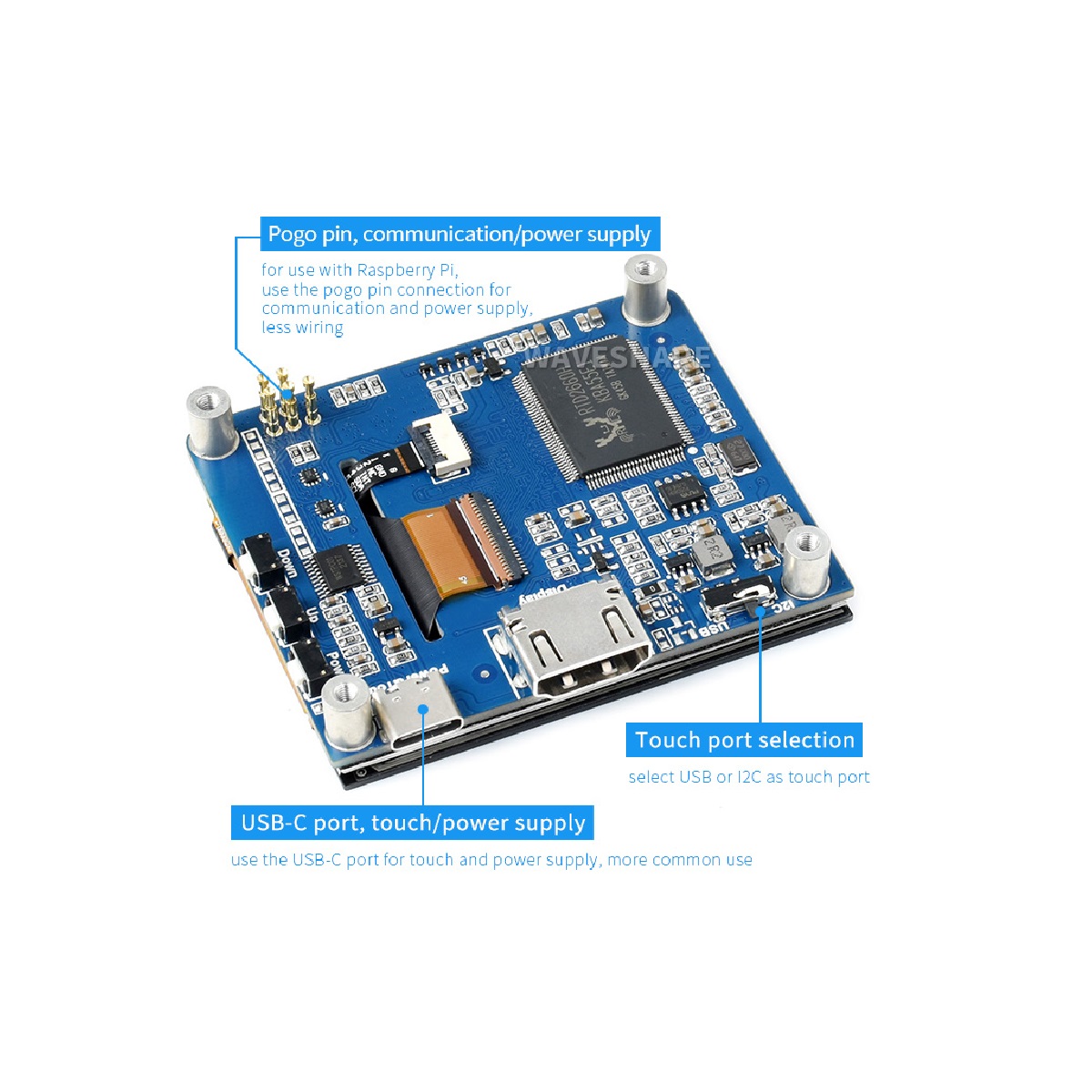

Onboard dual touch circuit, touch can be driven via USB(drive-free) touch interface or I2C interface of Raspberry Pi, 5-point touch, toughened glass capacitive touch panel, hardness up to 6H
Use with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali / Retropie and WIN10 IoT.
Use with Jetson nano, support Ubuntu.
Use as a computer monitor, it supports Windows 11 / 10 / 8.1 / 8 / 7.
Support backlight control, more power saving.

Package Includes:

1 x 2.8inch HDMI LCD (H)

1 x HDMI Adapter (C)

1 x HDMI Adapter (B)

1 x HDMI cable

1 x USB-A to USB-C cable

1 x Screws pack

Additional information

Display Size	2.8 inch
Resolution	480×640
Display Port	HDMI
Display Panel	IPS
Viewing Angle	160 degree
Touch Type	Capacitive
TouchPoints	5-Points
Touch Port	USB-C , I2C
