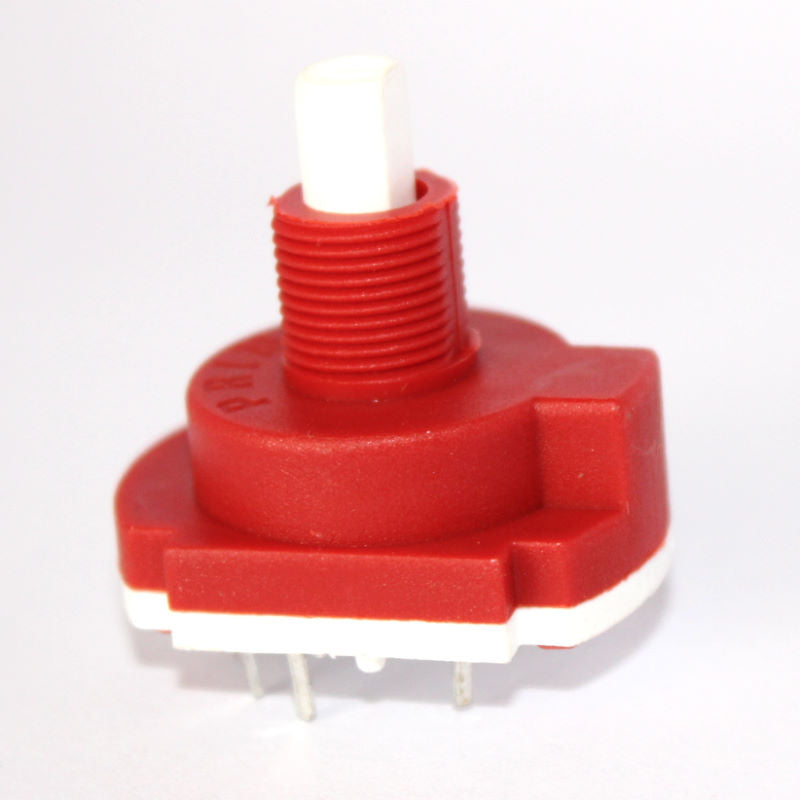

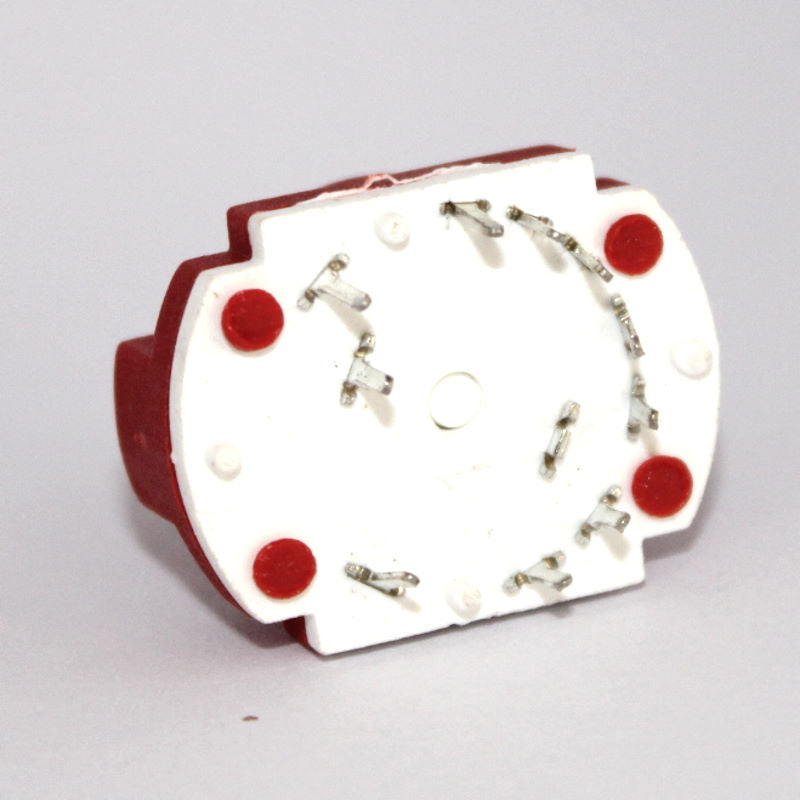

5 Way Fan Regulator Rotary Switch

This is a 5 way fan regulator rotary switch with voltage and current ratings of 250 VAC and 150 Amps.

Specifications:

• Switch Type: Selector
• Number of Switch Positions: 1-5
• Current Rating: 150 Amps
• Dielectric Strength: More Than 2kV
• Insulation Resistance: More Than 1000M ohms at 500V DC
• Voltage: 250V AC
• Break Down Voltage: 500 VAC (50 Hz 2mA)
• Terminals: Brass Silver Plated
• Molded Parts: Engineering Thermo Plastic
• End Torque: 4 kg.cm Min
• Nut: Brass Nickel Plated
• Operating Torque: 1200 gm.cm +300gm.cm

Package Includes:

1 x 5 Way Fan Regulator Rotary Switch
