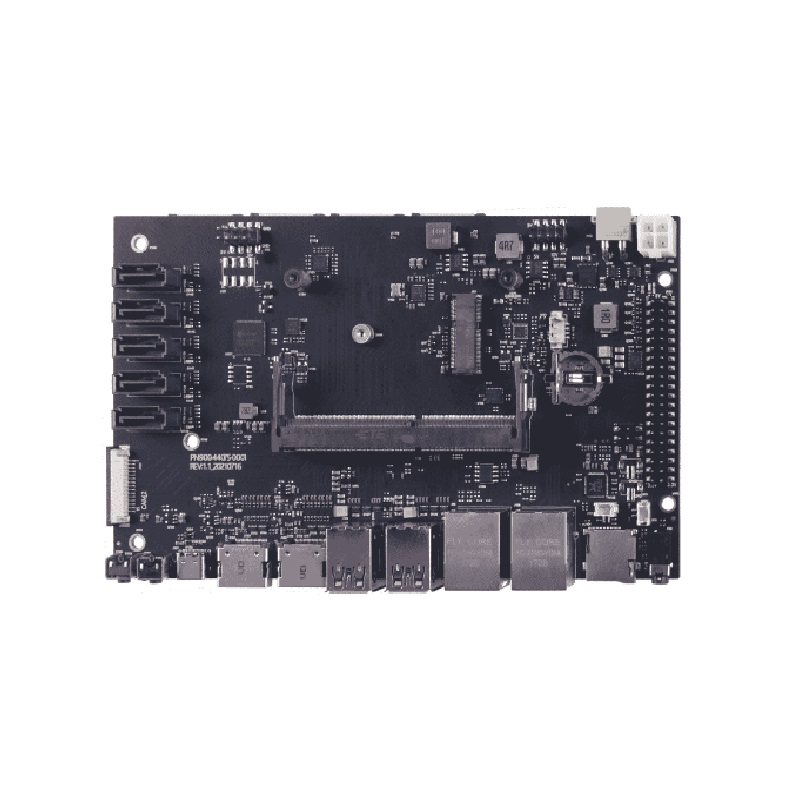

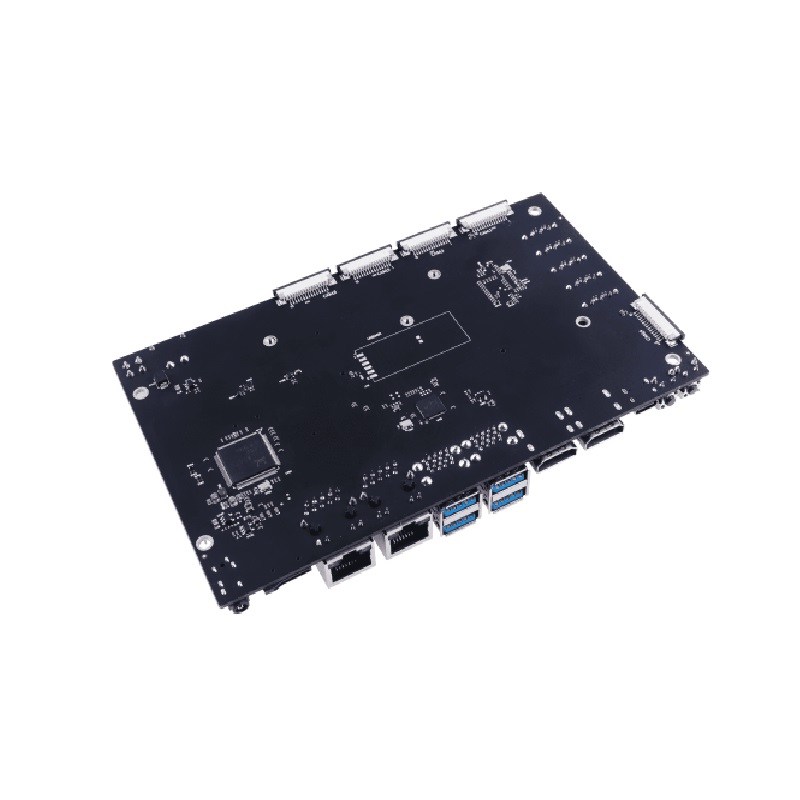

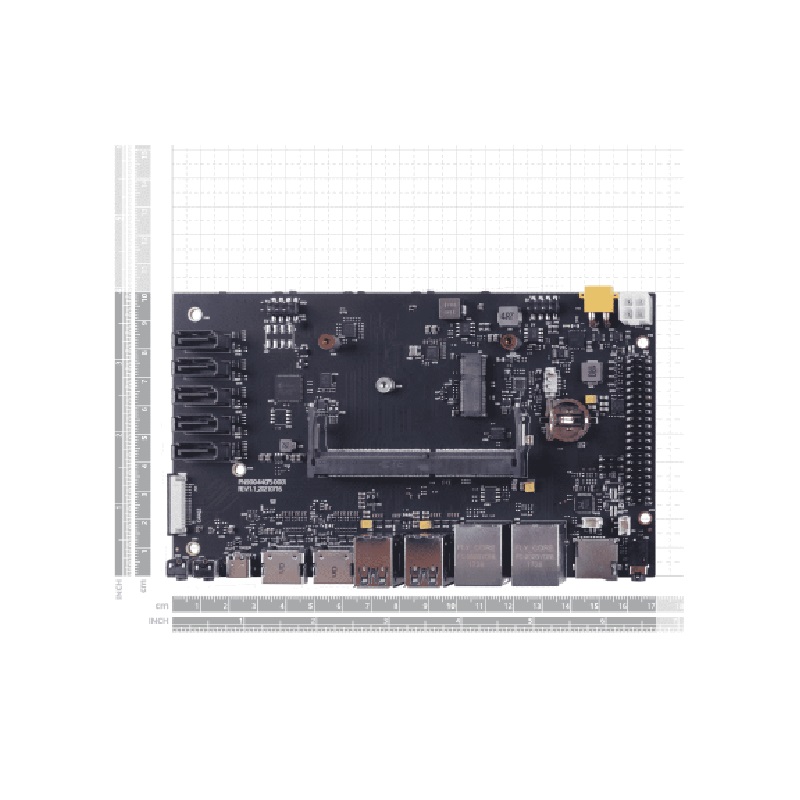

A205 Carrier Board for Jetson Nano/Xavier NX/TX2 NX with compact size and rich ports (6 CSI Camera, 2 HDMI, 5 SATA, M.2 key E supported etc.)

A205 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0 (W / OTG function) M.2 key E Wi-fi / Bluetooth, SATA, CSI camera, RS232, SD card, CAN, PIO, I2C, I2S fans, and other rich peripheral interfaces are suitable for environments with strict environmental requirements, complicate real-time vision computation.

Basically, it works with an NVIDIA Jetson module mentioned above to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX/TX2 NX module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicated AI graphical applications such as Automated Optical Inspection, In Video Action, Robot control, 3D modeling, Drone, parallel computing for Computer vision. Overall, it can be widely deployed in edge areas to meet the demand as smart retail or video analysis.

Applications:

1. Industrial Automation
2. Automated Optical Inspection
3. Robot control
4. 3D modeling
5. Drone
6. Computer vision
7. Sentiment Analysis

Feature:

1. Rich peripheral interfaces and complete features
2. Up to 6 CSI camera connection allowance
3. 5 SATA allows connection to multiple hard drives
4. Equipped with an anti-fall aviation plug that supports high currents
5. All-in-one solution with up to 3 fans interfaces for better heat dissipation consideration
6. Certificate: FCC, CE, RoHS

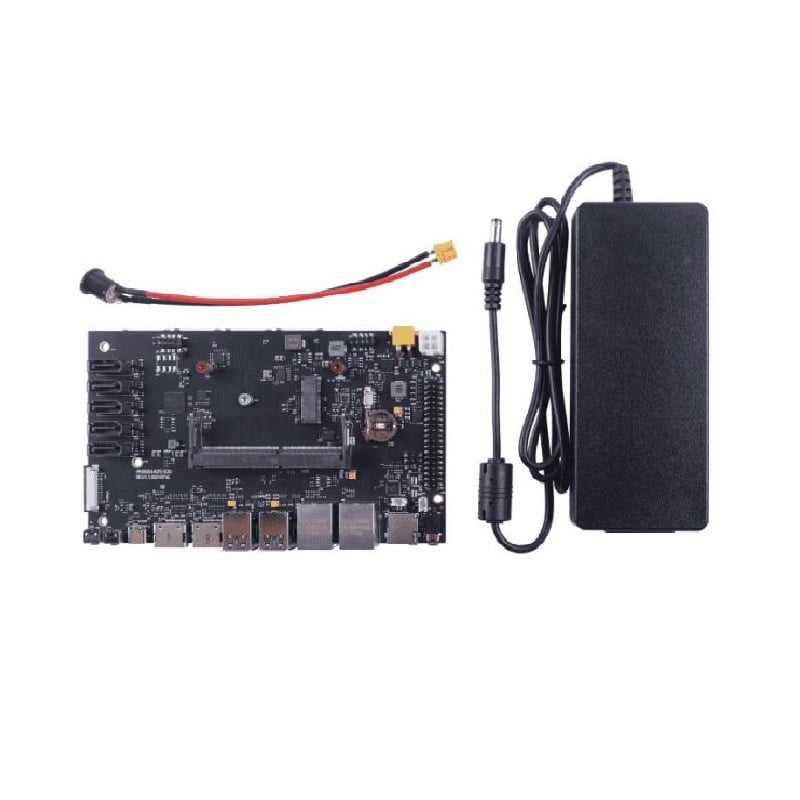

Packages Includes:

1 x A205Carrier Board

1 x Power Adapter 19V/4.74A (MAX 90W)  (Power cable not included)
