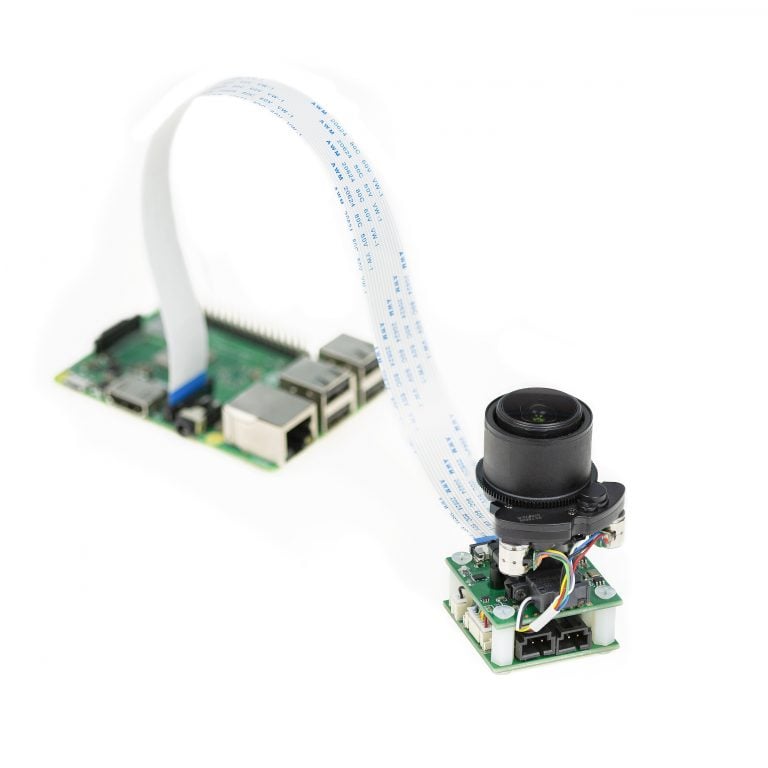

Arducam 5MP 1080p Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3

PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones.

You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, it’s “do more with less

Applications:

1. IoT cameras
2. Robot cameras
3. Wildlife cameras
4. Other security and surveillance projects

Features:

1. Real PTZ with servos for directional control and varifocal lens for optical zoom now comes to the Raspberry Pi
2. Switchable IR Cut through software for your day/night vision
3. Make full use of the CSI connector now that a single camera can be used to monitor places that should be covered by multiple ones
4. Autofocus control, pan/tilt/zoom keyboard control supported in software
5. 5MP OV5647 1080P Camera board
6. PTZ Controller Board Connector Part Number: S6B-XH-A-1

Specifications:

1. Focal-Length: 3.2-11.1mm±5%
2. Optical Back Focal Length: 5.8±0.1
3.  Mechanical Back Focal Length: 13.45±0.2
4.  TTL: 52.14±0.2
5.  Image Circle: ∅6.9
6.  Lens Structure: 6G3P
7.  Mount: ∅14
8.  FOV: 1/2.7”(16:9): H(113~30),V(60~16),D(137~34)1/3”(4:3): H(91~25),V(66~18),D(120~30)
   1/4”(4:3): H(67~18),V(49~13),D(90~22)

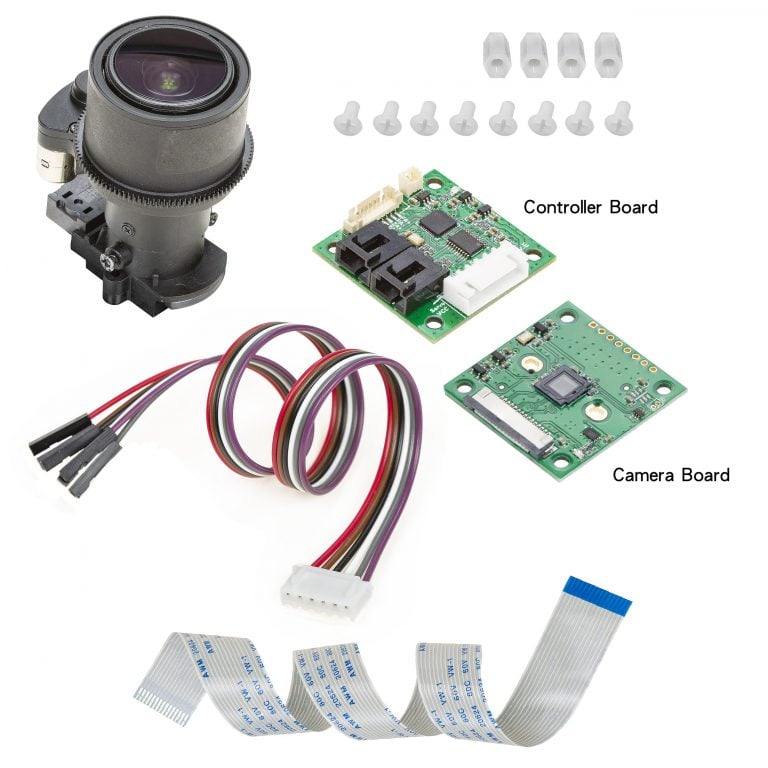

Package Include:

1 x Arducam PTZ Pan Tilt Zoom Lens for Raspberry Pi

1 x Controller Board

1 x 5MP Camera Board

1 x 15-Pin FPC Cable (11.8 in/30 cm)

1 x XH2.54 Jumper wire with 6Pin Famale Connector (11.8 in/30 cm)
