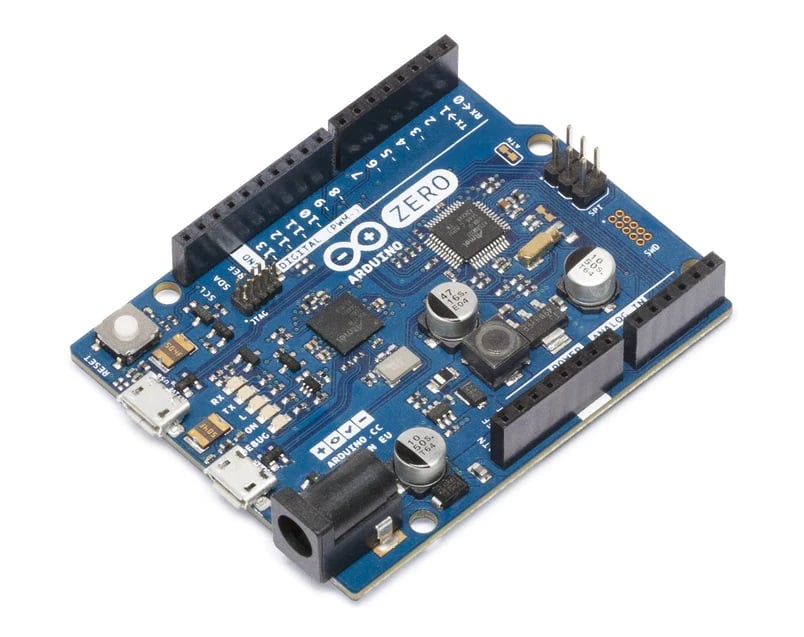

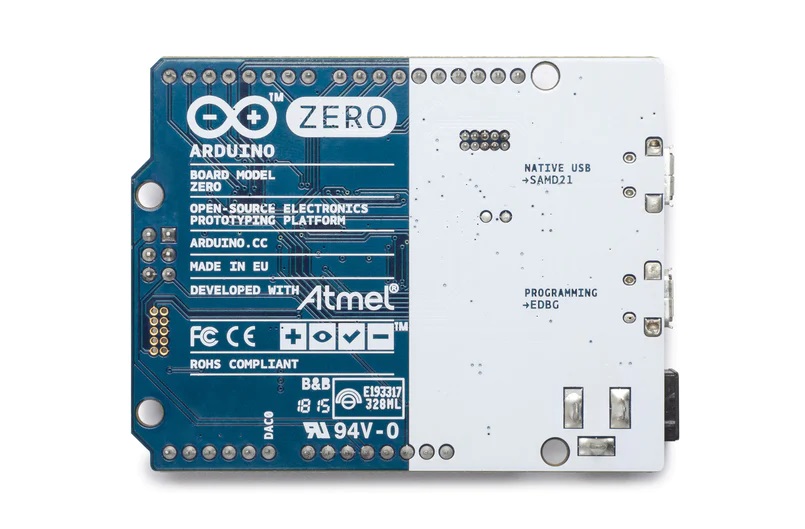

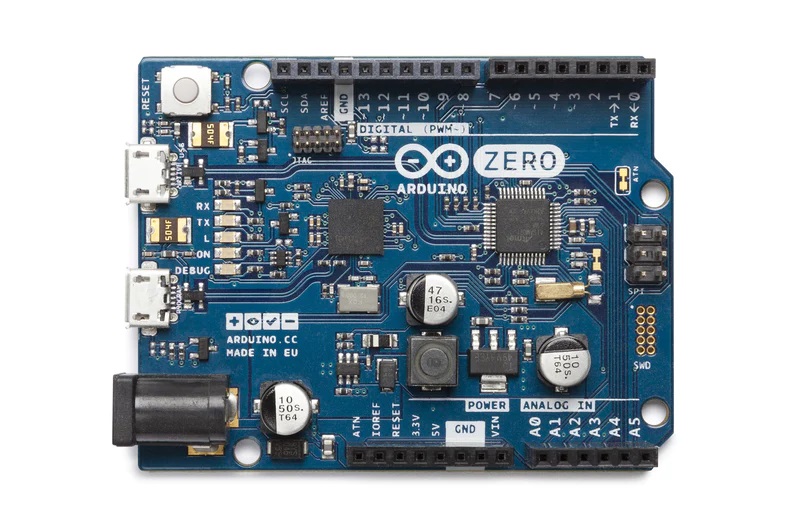

Arduino zero micro-controller boards

The Arduino zero is a simple and powerful 32-bit extension of the platform established by the UNO. The Zero board expands the family by providing increased performance, enabling a variety of project opportunities for devices, and acts as a great educational tool for learning about 32-bit application development.

The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex M0+ core. One of its most important features is Atmel’s Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware, significantly increasing the ease-of-use for software debugging. EDBG also supports a virtual COM port that can be used for device and boot-loader programming.

Applications:

1. Span from smart IoT devices
2. Wearable technology
3. High-tech automation
4. Crazy robotics

Feature:

1. Best board for your IOT projects
2. The board contains everything needed to support the micro-controller
3. Easy to learn for school & college students
4. This is official Arduino board
5. Best for your school & college projects
6. Two-channel Inter IC Sound (I2S) interface
7. The board have great clock speed what you needed
8. Peripheral Touch Controller (PTC)

Specification:

1. Micro-controller: ATSAMD21G18,32BIT ARM Cortex M0+
2. Operating voltage: 3.3V
3. Digital i/o pins: 20
4. PWM pins: 3, 4, 5, 6, 8, 9, 10, 11, 12, 13
5. UART: 2 (Native and Programming)
6. Analog input pins: 6, 12-bit ADC channels
7. Analog output pins: 1, 10-bit DAC
8. External interrupts: All pins except pin 4
9. DC current per i/o Pin: 7 mA
10. Flash memory: 256 KB
11. SRAM: 32 KB
12. EEPROM: None
13. LED_BUILTIN: 13
14. Clock speed: 48 MHz
15. 32 bit CRC generator
16. Length: 68 mm

Package include:

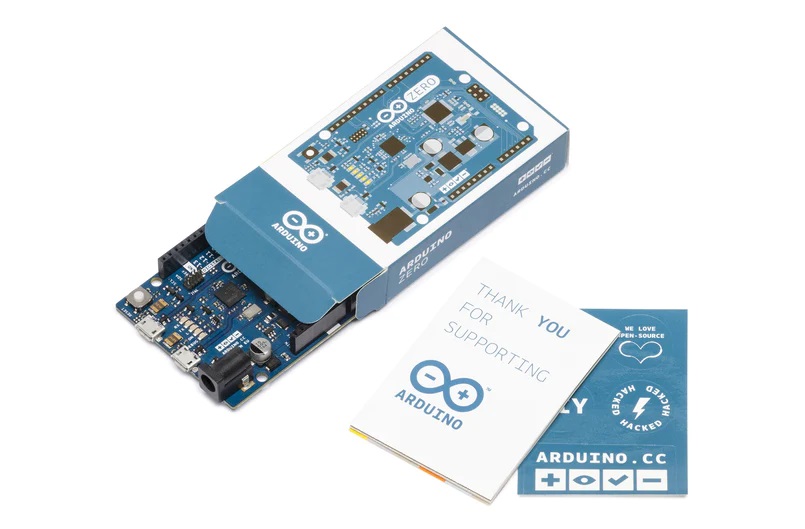

1 X Arduino zero
