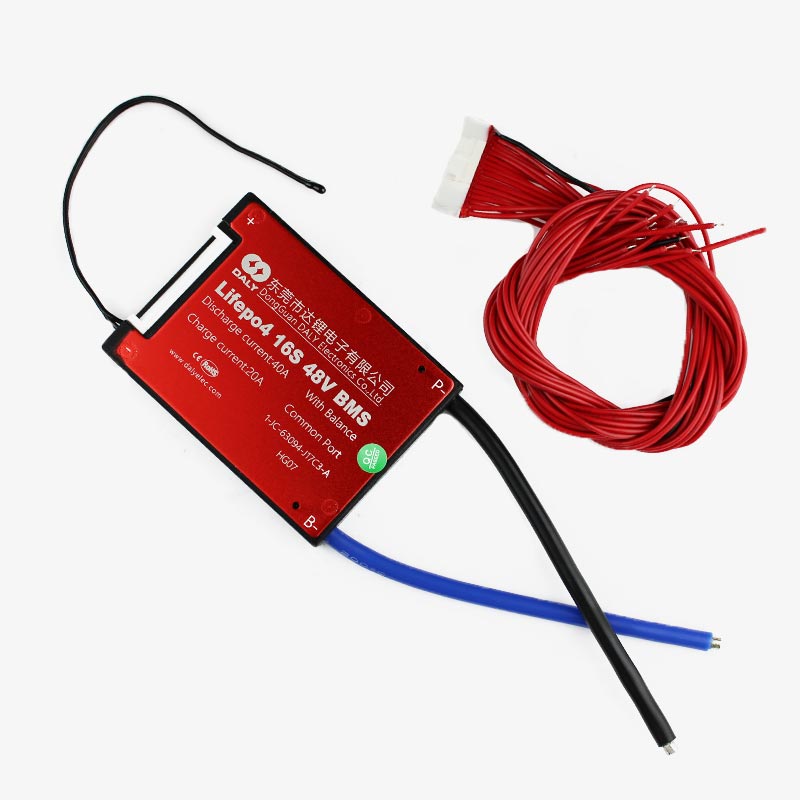

DALY LiFePo4 16S 48V 40A Waterproof Battery Management System - BMS Protection Board
Buy DALY LiFePo4 16S 48V 40A Waterproof Battery Management System - BMS Protection Board online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
Daly Lifepo4 16S 48V 40A Battery Management System Circuit is an 16 Cell in Series 48V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.
Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
Specification :
| Balance Current(mA) |
30±5 |
| Balance Detect Voltage(V) |
3.5 |
| Cable Size (AWG) |
10 |
| Charge Current(A) | 20 |
| Charge Voltage(V) |
58.4 |
| Height (mm) | 11.2 |
| Length (mm) |
81.6 |
| Model |
16S 48V 40A |
| Over Discharge Detect(V) |
2.2±0.05 |
| Over Discharge Release(V) |
Off load |
| Overcharge Detect Voltage(V) |
3.75±0.05 |
| Overcharge Release Voltage(V) |
3.55±0.05 |
| Width (mm) |
60.8 |
| Working Current(uA) |
100 |
| Working Temperature Range (°C) |
-20 to 70 |
Package Includes:
1 x Daly 16S 48V 40A Battery Management System
welcome
welcome
You May Also Like
View all →
Buy 3S 15A Lithium Battery Protection BMS Module with Nickel Strip for 3.7V NMC cells online, Order today to get instant delivery in all over india.
Buy KP 501035 3.7V 155mAh Lithium Polymer Rechargeable Battery online, Order today to get instant delivery in all over india.

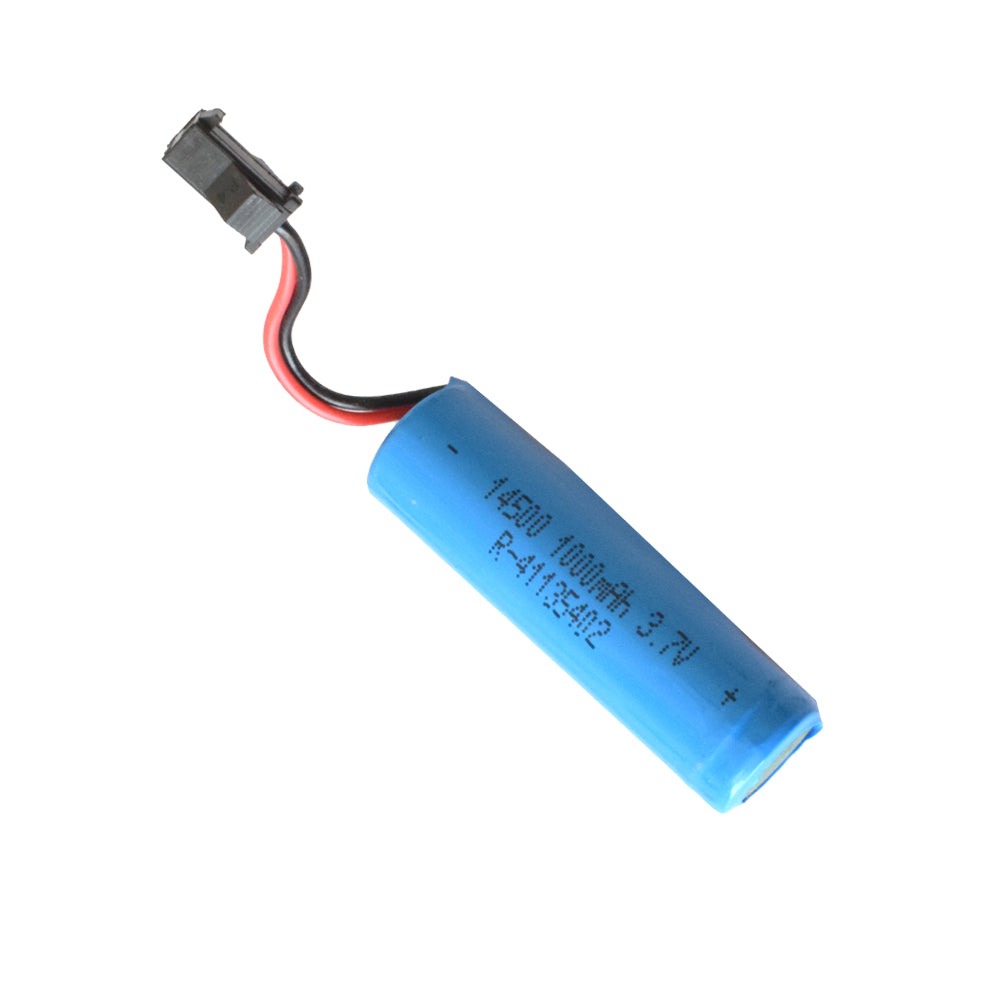

Buy KP 14500 3.7V 1000mAh Lithium Polymer Battery online, Order today to get instant delivery in all over india.
