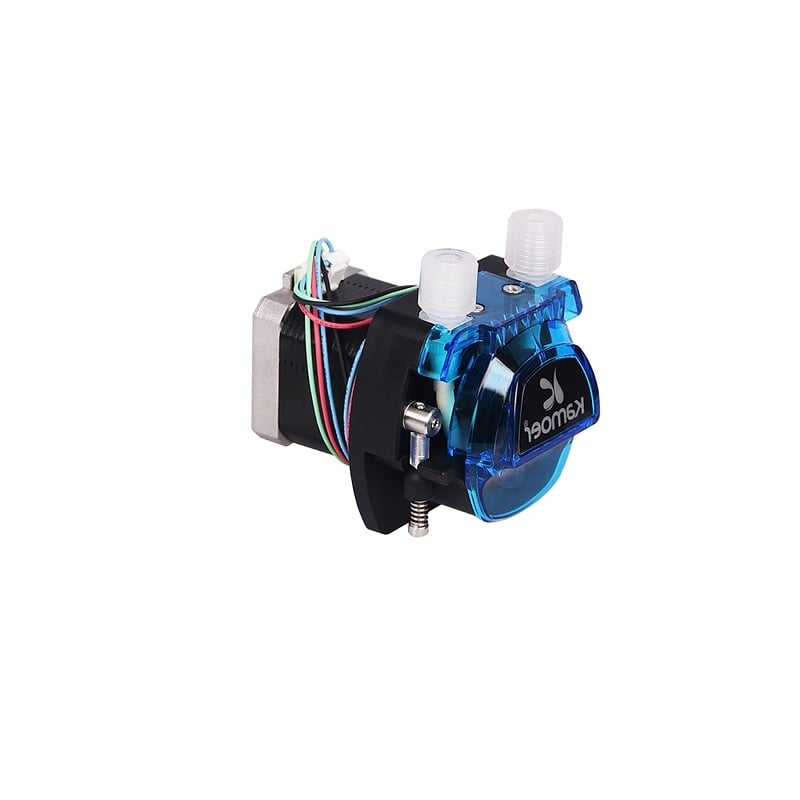

Kamoer KCM – 6 rollers-24V RPM 550-B-16 Peristaltic Pump

A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping various fluids. The fluid is contained in a flexible tube fitted inside a circular pump casing. Most peristaltic pumps work through rotary motion, though linear peristaltic pumps have also been made. The rotor has a number of “wipers” or “rollers” attached to its external circumference, which compress the flexible tube as they rotate by.

The part of the tube under compression is closed, forcing the fluid to move through the tube. Additionally, as the tube opens to its natural state after the rollers pass, more fluid is drawn into the tube. This process is called peristalsis and is used in many biological systems

Features:

1. Two kinds of s-stepping motors are available: 12V /24V
2. Flow rate range: 3 r rollers 44~670ml/min, 6 r rollers 38~375ml/min
3. Working c conditions: temperature 0~40℃, humidity <80%
4. Pump tube selection: silicone tube, PharMed®BP T tube
5. Rollers: 3 rollers, 6 rollers, the more the number of rotors, the
6. higher accuracy, smaller pulsation, and the smaller flow
7. Pump head: engineering plastics, machined parts are SU S304 stainless steel

Package Includes:

1 x Kamoer KCM – 6 rollers-24V RPM 550-B-16 Peristaltic Pump
