Lwc-2400-rd-ra-rpsma-plug-05

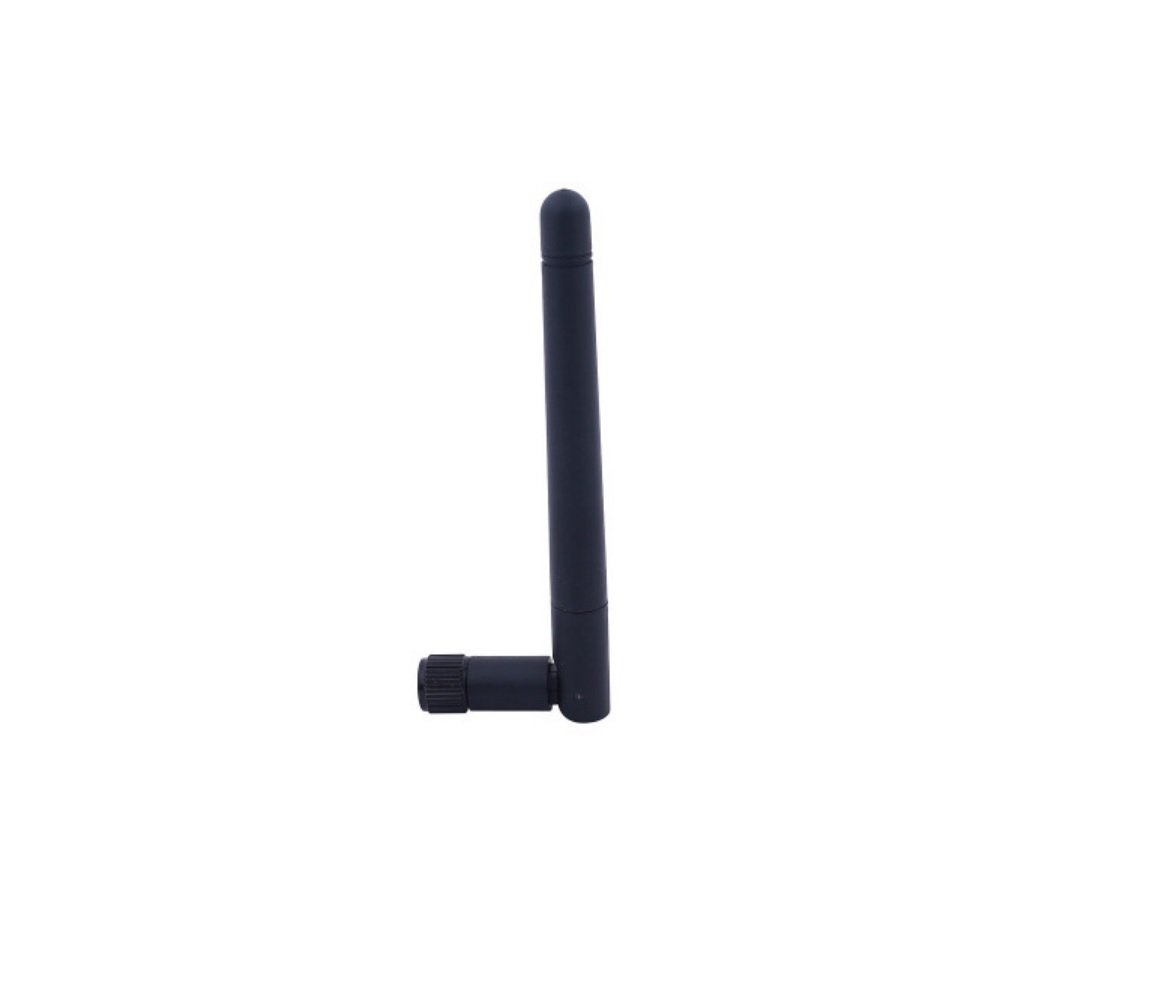

This is Rubber Duck Antenna with Right Angle fold-able Connector having a frequency of 2400 MHz and 3dBi Gain,

Applications:

1. WiFi
2. Bluetooth

3. Zigbee
4. ISM

Note: For more technical info refer to Datasheet

Features:

1. Compact Size
2. Low Cost
3. light weight
4. Plug and play device
5. Easy to use

Specifications:

1. Model Number: Lwc-2400-rd-ra-rpsma-plug-05

2. Frequency (MHz): 2400 – 2483MHz
3. gain: 5 dBi
4. Impedance (Ω): 50
5. VSWR: <1.5
6. Polarization: Vertical
7. Power Handling (W): 10
8. HPBW: H: 3600°C ; V: 400°C
9. Connector: RP-SMA Plug
10. Dimensions(mm): 200 x φ13 mm
11. Housing: ABS / Rubber
12. Weight: < 20 g
13. Operating Temperature: -30 to 60 C
14. Humidity: 5 – 75%

Packages Includes:

1 x Lwc-2400-rd-ra-rpsma-plug-05
