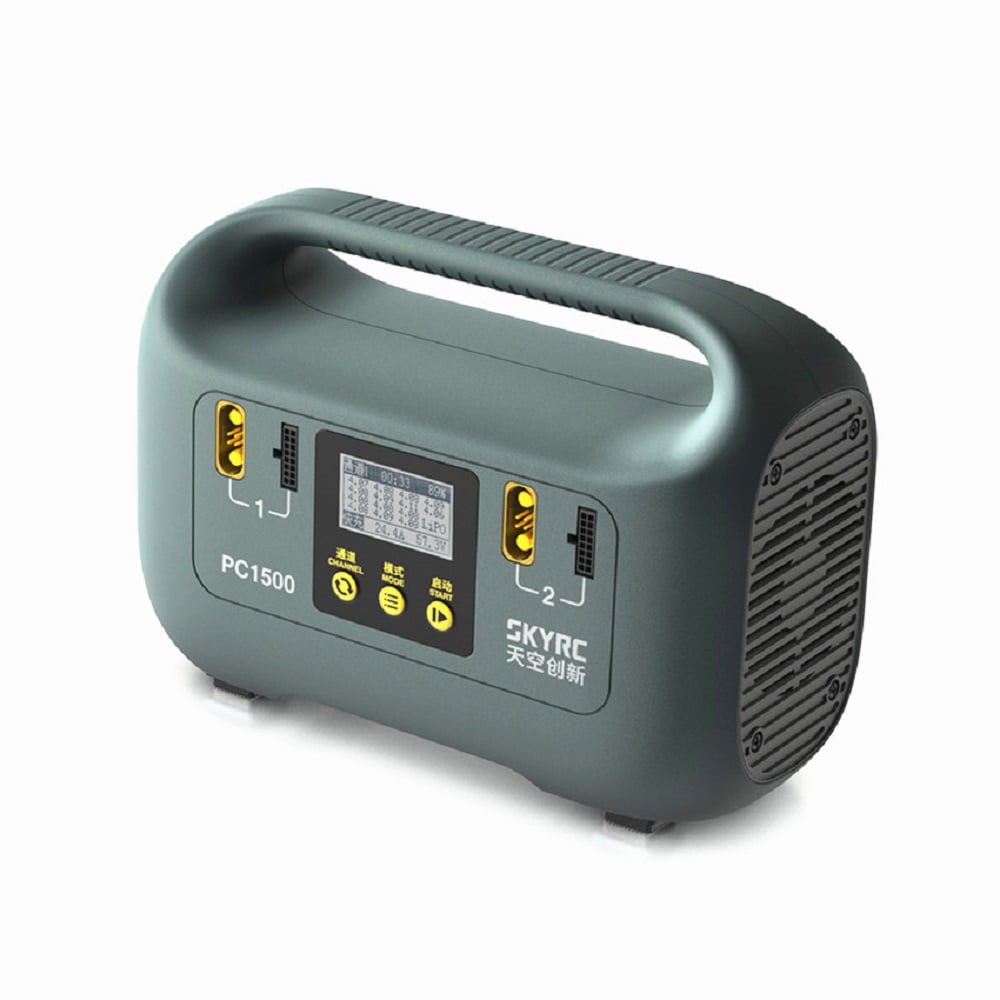

SKYRC PC1500 25A 12S/14S LiPo Battery Charger for Drone

This is a dual-channel 12S/14S LiPo charger for industrial application drones. It is reliable, safe, and easy to operate while with comprehensive functionality, like a battery voltage meter, internal resistance meter, LiHV charging mode, and also a time-saving synchronization mode.

This charger is capable of balance charging 2 packs of 12 cell batteries simultaneously. It is specifically designed for the big battery pack. PC1500 comes with

Better Protection with Conformal Coating Anti-corrosion paint is applied to protect the key circuit’s electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger’s reliability and stability are ensured for outdoor work.

Additionally, it has Multiple Protection functionality for Short Circuit Protection, Reverse Polarity Protection, Over-temperature Protection and Customers can rest assured of our quality safety and reliability

Features:

1. Intuitive Operation Interface
   Routine charging is made easy by the simple and intuitive interface with the operation procedure simplified. Users only need to select Fast(Fast Charge)/Charge(Slow Charge)/Storage and press the Start button to get the job started.
2. LCD Display
   Real-time charging data at a glance! During the charging process, the display screen displays charging time, battery power percentage, and every single cell’s voltage in real-time.
3. High Performance with Dual Channels
   With high-power and dual channels, two batteries can be charged simultaneously in slow charging mode at a maximum charging power of 1500W.
4. Compatibility of CAN
   PC1500 charger is with built-industry CAN Bus communication. Smart batteries and lithium batteries with balance ports can be charged.
5. Better Protection with Conformal Coating
   Anti-corrosion paint is applied to protect the key circuit’s electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger’s reliability and stability are ensured for outdoor work.
6. Multiple Protection:
   • Short Circuit Protection
   • Reverse Polarity Protection
   • Over-temperature Protection
   • Customers can rest assured of our quality safety and reliability

Specifications:

1. Material: Plastic (Flame Retardant PC-ABS)
2. Size: 294 x 136 x 212mm
3. Weight: 4.2Kg
4. Power Supply: AC Input 100-240V
5. Charging Power: 1500W
6. Battery Type: Lithium Battery
7. LiPo Battery Cells: 12S/14S
8. LiHV Battery Cells: 12S
9. Fast Charge Current: 25A
10. Slow Charge Current: 25A
11. Discharge Power：60W
12. Charging Mode：Fast charge, Slow, Storage
13. Working Temperature: 0℃-40℃
14. Working Humidity: 0%-75%
15. Storage Temperature: -10℃-70℃
16. Storage Humidity: 0%-75%

Package Includes:

1 x SKYRC PC1500 25A 12S/14S LiPo Battery Charger for Drone
