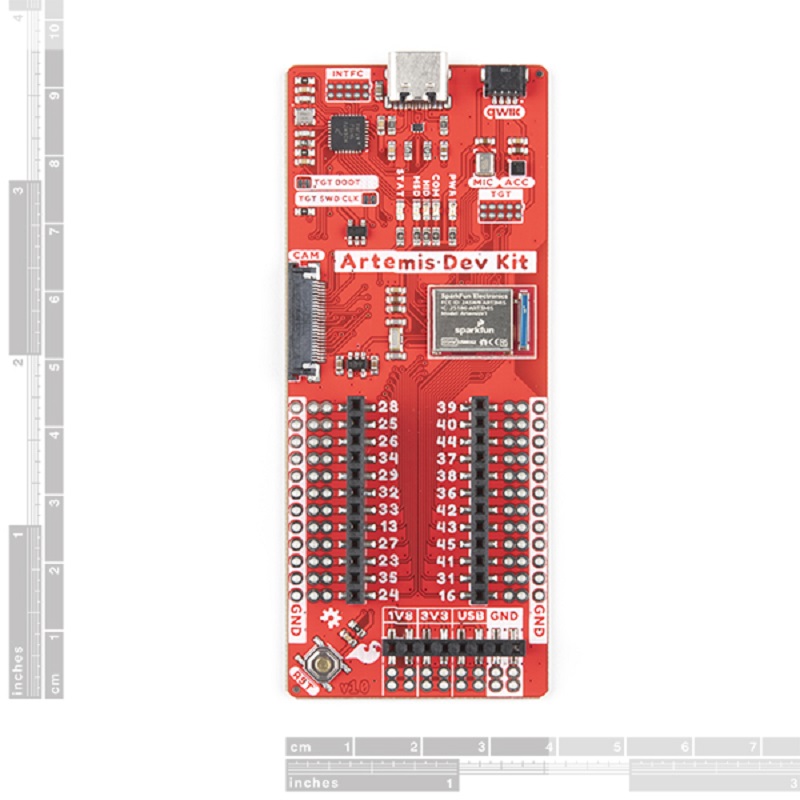

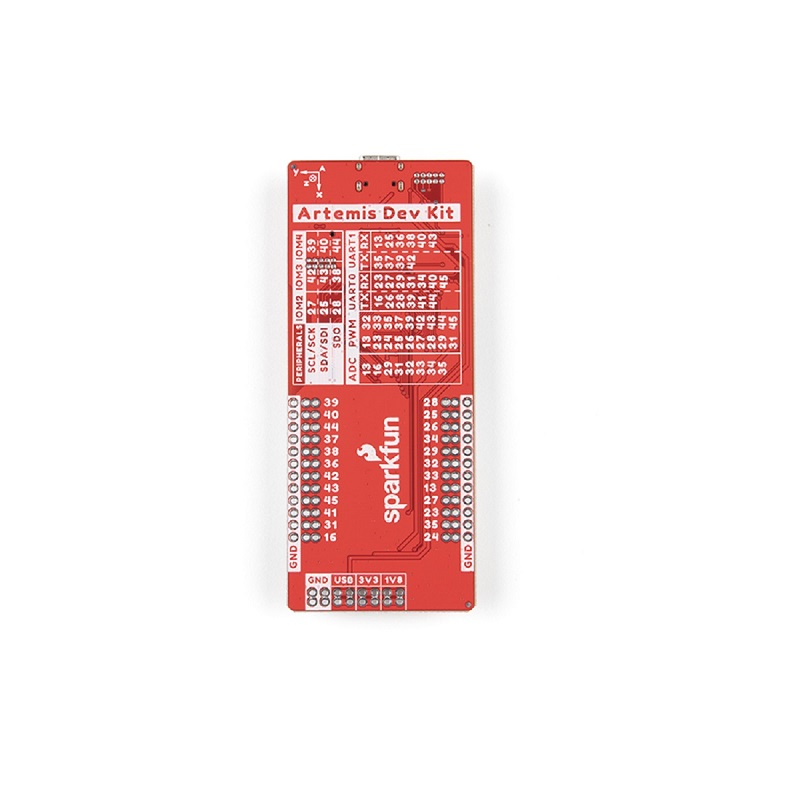

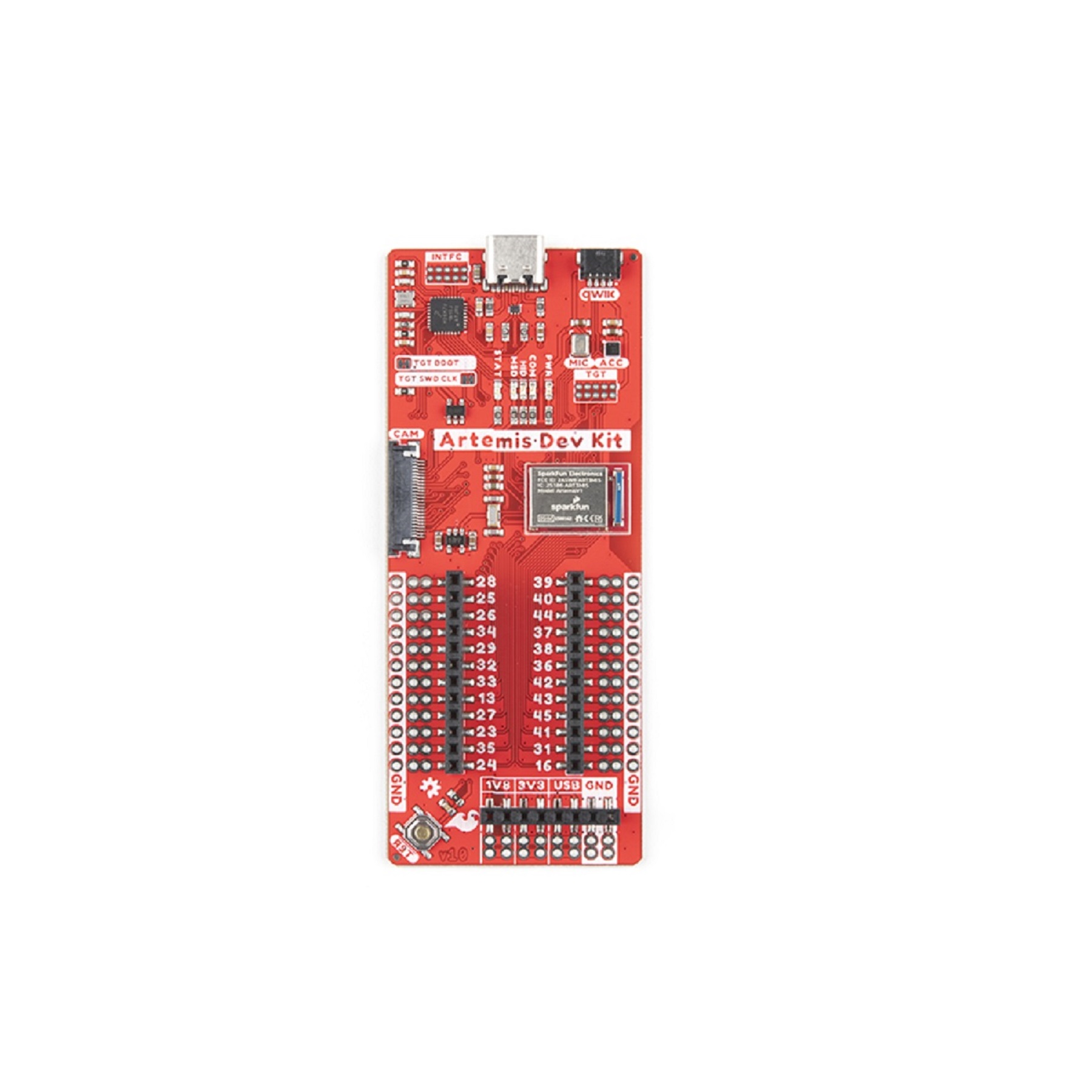

SparkFun Artemis Development Kit with Camera

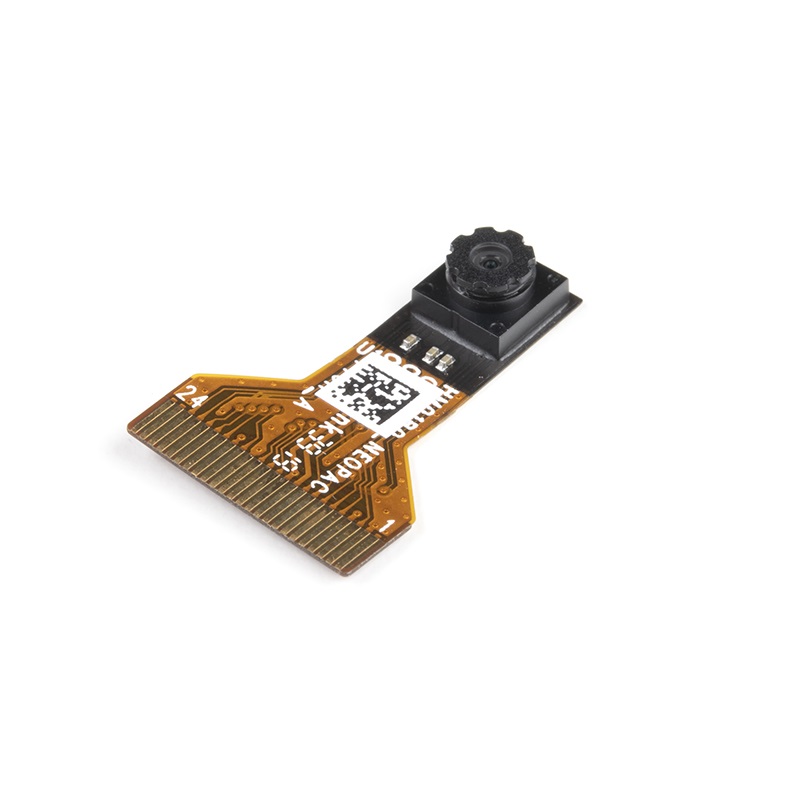

The SparkFun Artemis Development Kit is the latest board to be released around the SparkFun Artemis Module and it allows access to more software development features than previous Artemis-based boards. This Kit includes the SparkFun Artemis DK board as well as the accessories (Himax camera & USB-C cable) needed to get started right away. Recommended software used to program the Artemis DK are the Arduino IDE, Arm® Mbed™ OS (Studio and CLI), and AmbiqSDK. An updated USB interface (MKL26Z128VFM4 Arm® Cortex®-M0+ MCU, from NXP) allows the Artemis Dev Kit to act as:

• Mass Storage Device (MSD): Used to provide drag and drop programming to the Artemis Module.
• Human Interface Device (HID): Used for the debugging interface to the Artemis Module.
• Communication Port (COM): Used to provide a serial communication UART between the Artemis and the USB connection (PC).

The Artemis Module provides a Cortex®-M4F with BLE 5.0 running at 48MHz with an available 96MHz turbo mode and power as low as 6uA per MHz (less than 5mW). The SparkFun Artemis Module is fully FCC/IC/CE certified with 1M flash and 384k RAM you’ll have plenty of room for your code. You can program and use the Artemis module just like you would an Uno or any other Arduino. Additional functionality stems from the ability of the Artemis Devkit to run RTOS such as the Arm Mbed OS, or the AmbiqSDK.

Features:

1. Drag and Drop Programming
2. SWD Interface
3. JTAG Programming PTH
4. JTAG Programming PTH
5. Two Independent UART Ports
6. Three Peripheral I2C/SPI Buses

Package Includes:

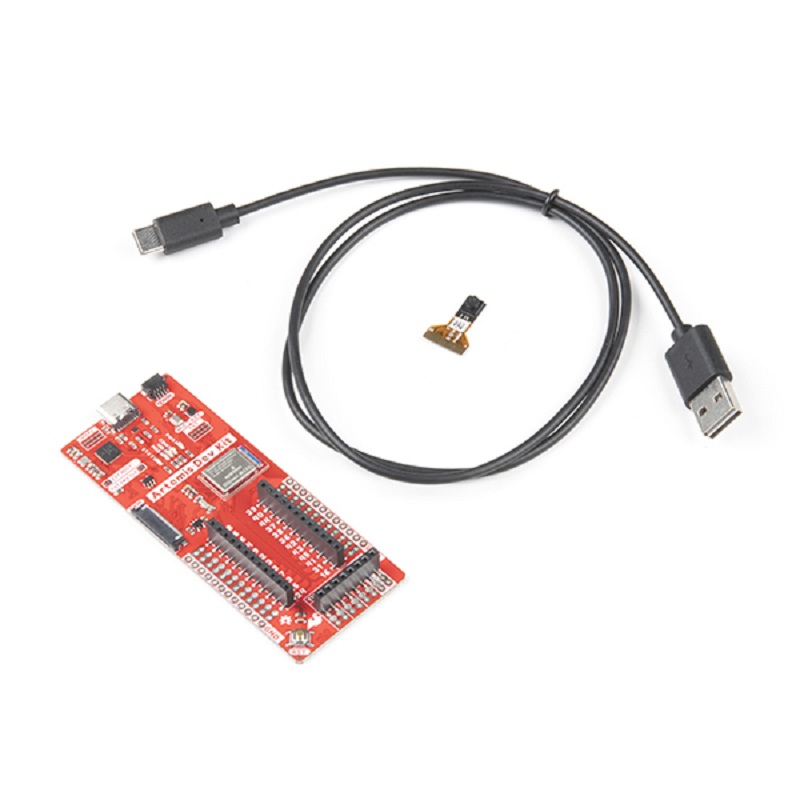

1 x SparkFun Artemis Development Kit with Camera
