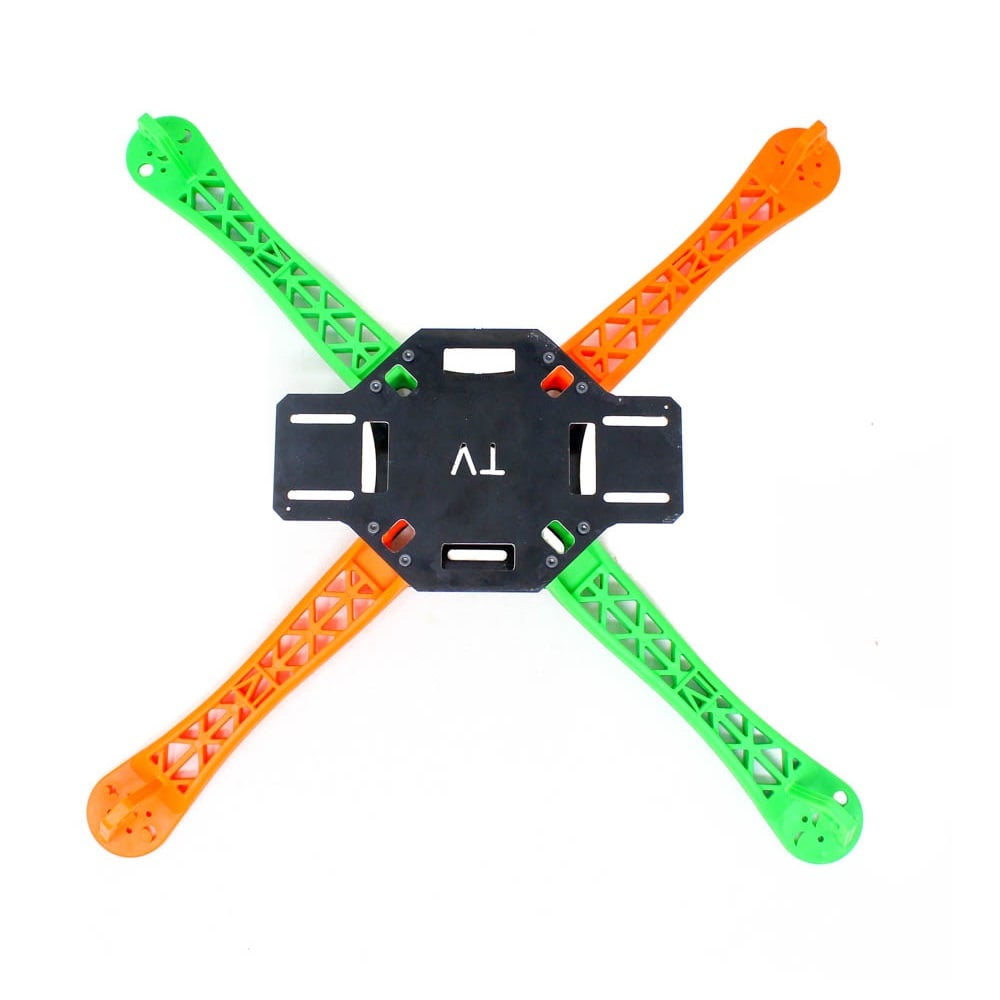

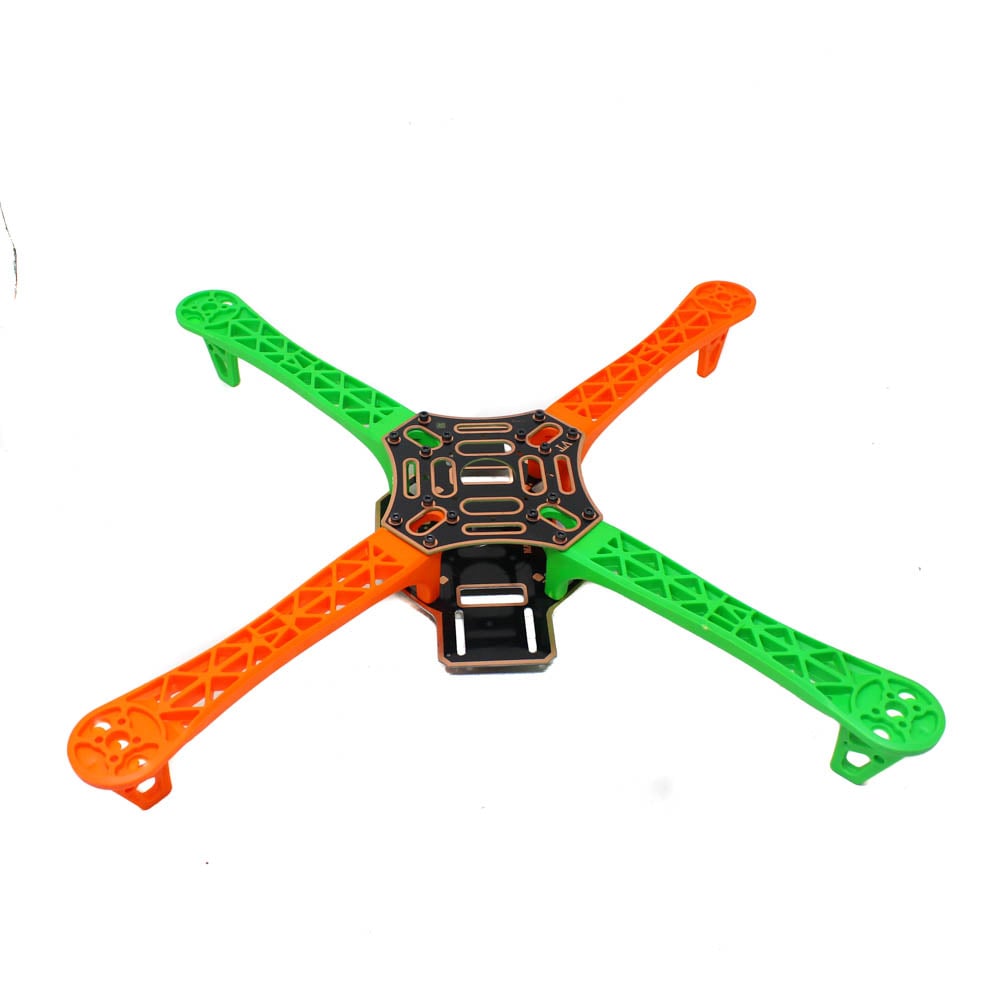

VT400 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB

This F450 Quadcopter Frame PCB Board is a well-thought-out 450mm quad frame built from quality materials. The Board is made of glass fiber. This board provides integrated PCB connections for direct soldering of your ESCs. New design PCB board version fit for standard 50mm controller board such as MK, KK, FF, and MWC.

This eliminates the need for a power distribution board or messy multi-connectors keeping your electronics layout very tidy. It also comes with stronger molded construction so no more board breakage at the hard landing.

It is a ‘MADE IN INDIA’ ‘Tri Colour’ 450mm quadcopter frame built from quality materials. The mainframe is glass fiber while the arms are constructed from ultra-durable polyamide nylon. This version of the F450 features integrated PCB connections for direct soldering of your ESCs. This eliminates the need for a power distribution board or messy multi-connectors keeping your electronics layout very tidy. F450 also comes with stronger molded arms, so no more arm breakage at the motor mounts on a hard landing.

Assembly is a breeze with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required. It utilizes one size of bolt for the entire build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.

Note: The frame arm and base plate fitting hole may not appear to be aligned visually. But, the screw will fit properly if one attempts to tighten it a bit forcefully. (little misalignment even results in tighter fitments)

Features:

1. Built from quality glass fiber and polyamide nylon.
2. Integrated PCB connections for direct soldering of your ESCs
3. Pre-threaded brass sleeves for all of the frame bolts.
4. Colored arms for orientation to keep you flying in the right direction.
5. Large mounting tabs on the mainframe bottom plate for easy camera mounting.
6. Easy assembly.

Dimensions of F450 Quadcopter Frame:-

• Width: 450mm
• Height: 55mm
• Weight: 270g (w/out electronics)

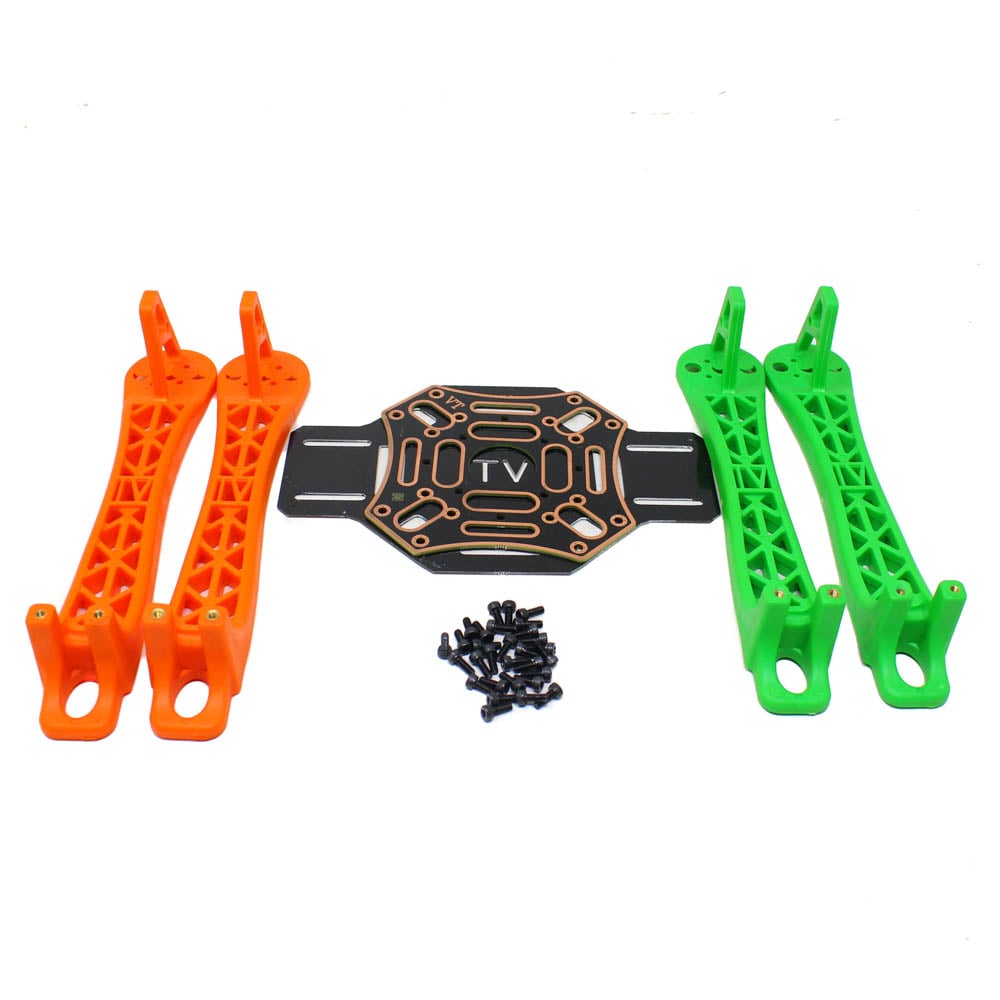

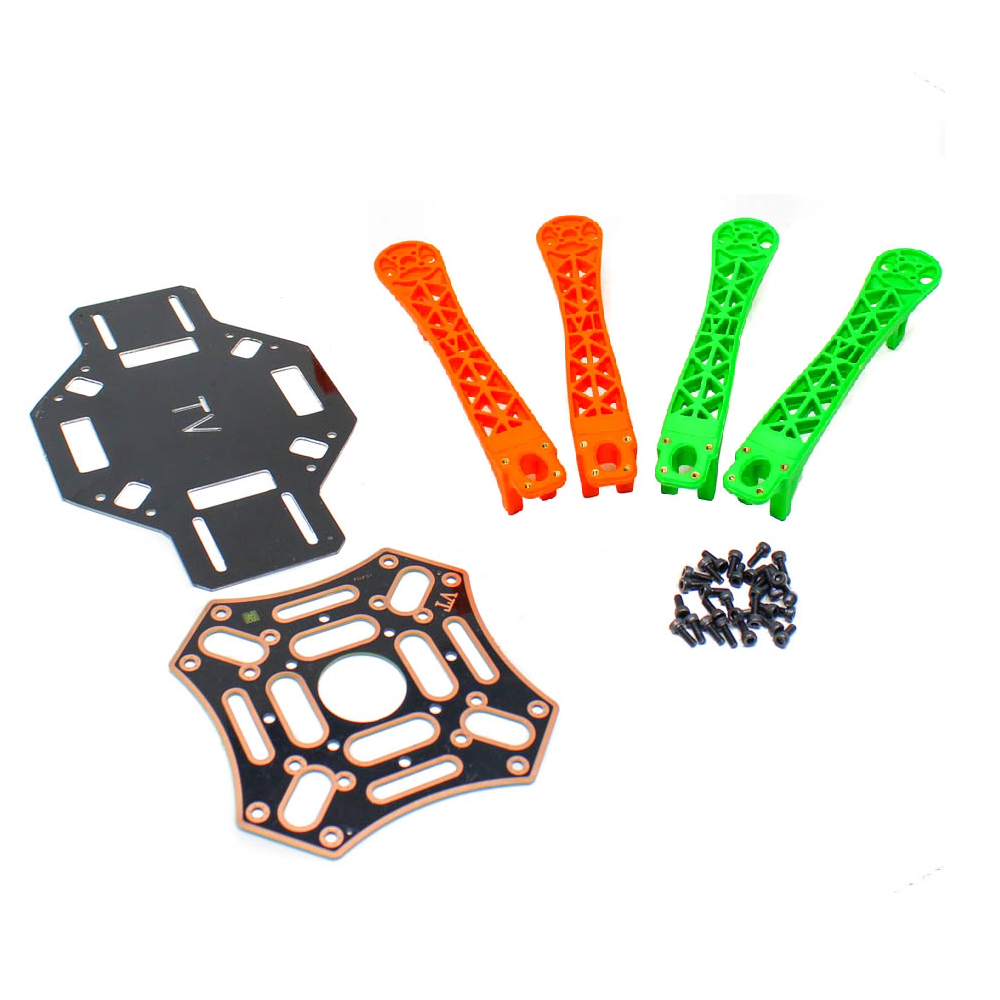

Package Includes:

• 1 x F450 tri-color Made In INDIA Quadcopter Frame
• 1 x PCB Board
• 2 x Orange arms
• 2 x Green Arms
• Set of Screws
