Waveshare 1.3inch OLED (A)

This is a Waveshare 1.3 Inch OLED Display (A) module. It is a very high-contrast display with no backlight.  It is perfect when you need an ultra-small display. This module supports SPI/I2C communication interfaces. It supports various hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32.

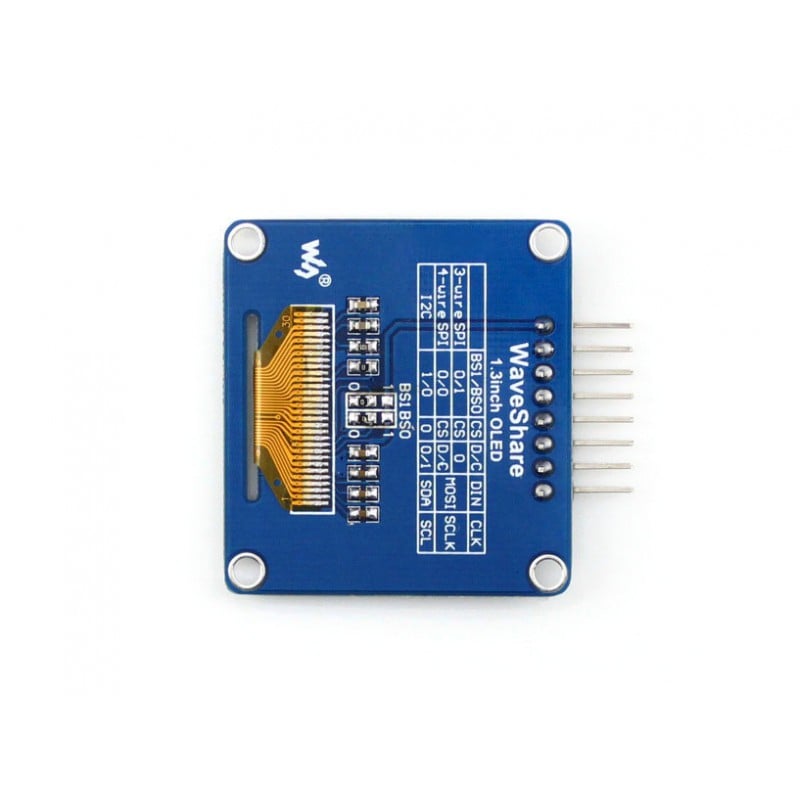

Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. This module provides 3 kinds of driver interfaces; they are 3-wire SPI, 4-wire SPI, and I2C interface.

Useful link:

To do Hardware and Software setup, please follow this tutorial.

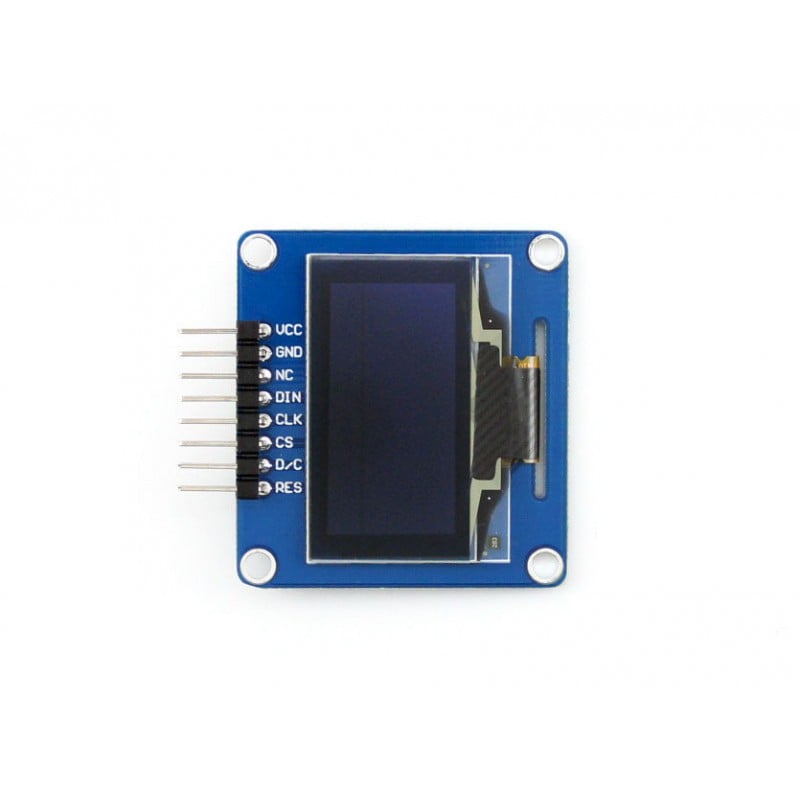

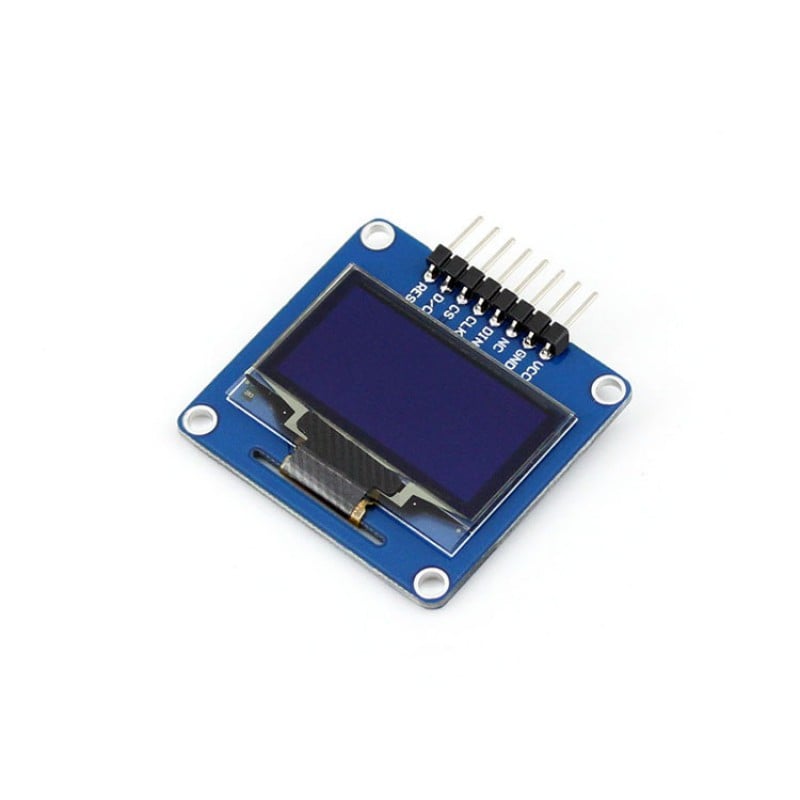

Pin Definition:

1. VCC Power positive (3.3~5V power input)
2. GND Ground
3. NC NC
4. DIN Data input
5. CLK Clock signal input
6. CS Chip selection, low active
7. D/C Command signal, low level for command, high level for data
8. RES Reset signal, low active

Dimension

Features:

1. Better quality
2. The IIC address can be changed, it is convenient to use with different machines.
3. Four square holes are easy to install

Package Includes:

1 x 1.3 Inch OLED Display (A)
