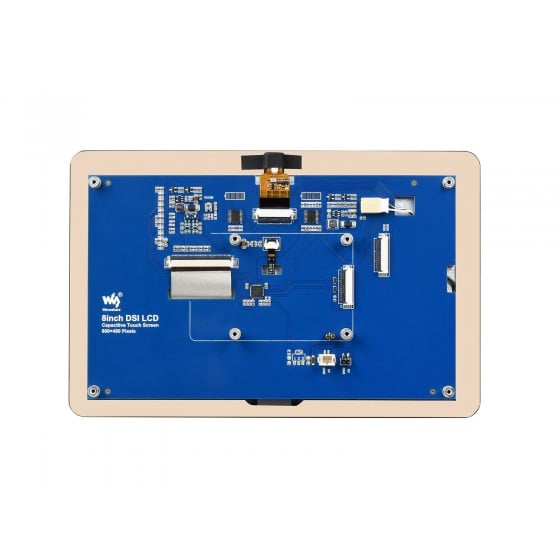

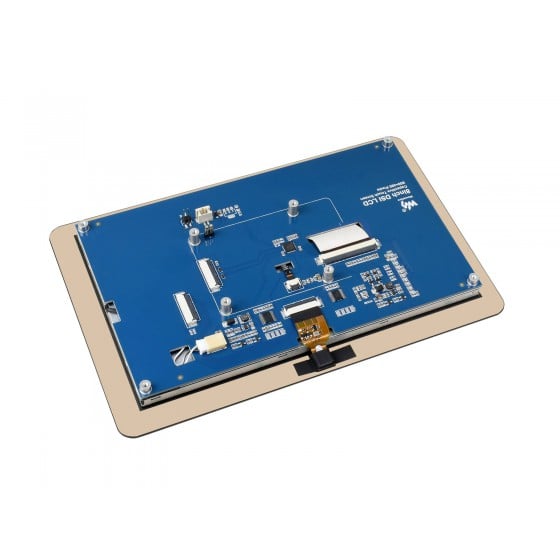

Waveshare 8inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera

The Waveshare’s 8-inch capacitive touch screen with a hardware resolution of 800×480 capacitive touch screen with 5-point touch tempered glass. The LCD integrates an OV5647 camera, 500W pixels, a 72.9-degree diagonal field of view, resolution of 2592×1944. This LCD supports Pi Pi 4B/3B+/3A+/3B/2B/B+/A+, another adapter cable is required for CM3+/4 and drives the LCD directly through Raspberry Pi’s DSI interface with a refresh rate of up to 60Hz. The backlight can be adjusted by software. The LCD drives the camera directly through the CSI interface of Raspberry Pi, the video frame rate supports 1920×1080p@30, 1280×720p@60, 640×480p@60, and 640×480p@90.

Features:

1. Size: 8inch
2. Resolutions: 800×480
3. Front Camera: 5Mp
4. Display port: DSI
5. Camera Port: CSI
6. Touch Type: Capacitive
7. Touchpoints: 5 Points
8. Touch panels: Toughened Glass
9. Power Consumption: Low
10. LCD FFC cable anti-interference design, more stable for industrial application
11. VCOM voltage adjustment for optimizing display effect
12. Power supply via pogo pins, eliminating messy wiring
13. Two types of 5V output headers, for connecting cooling fan or other low-power devices
14. With OV5647 5MP camera, 72.9° diagonal FOV, 2592×1944 resolution
15. Large front panel design, make it easy to match user-defined cases or to be integrated into sorts of devices
16. Adopts SMD nuts for holding and fixing the board, a more compact structure

Packages Includes:

1 x Waveshare 8inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800×480, DSI
