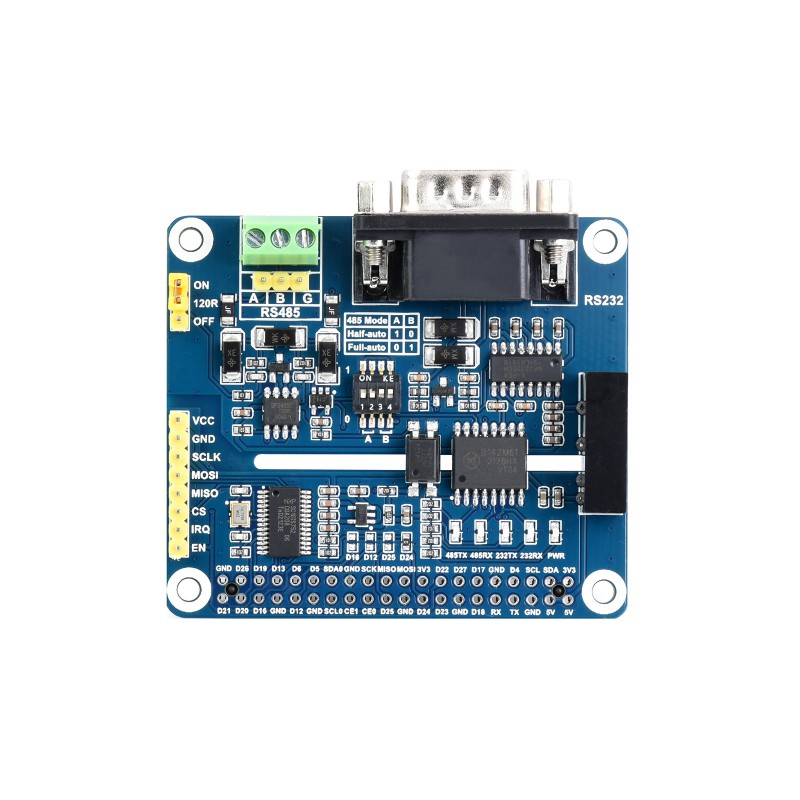

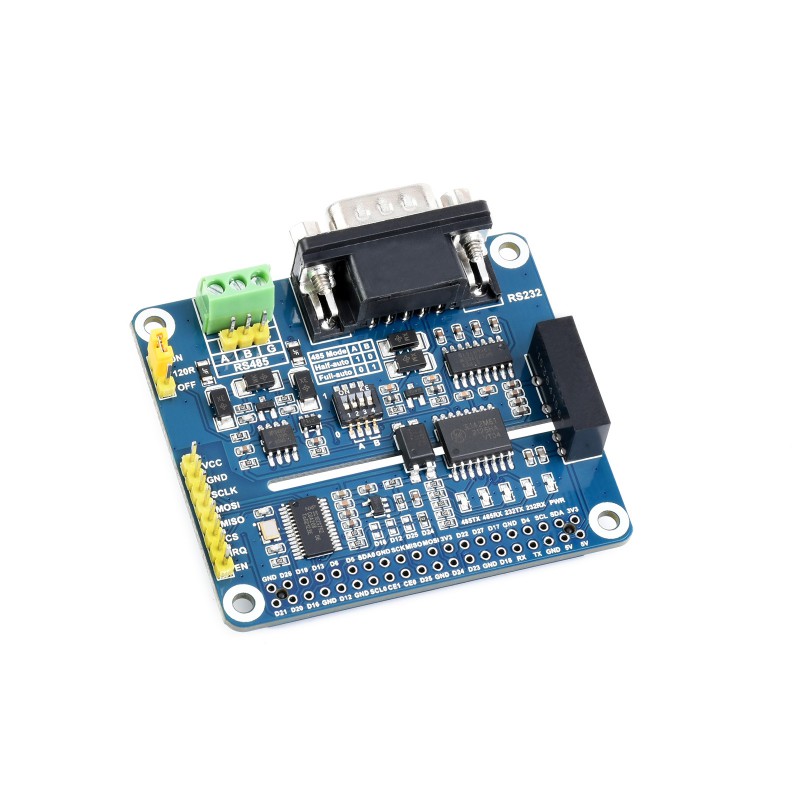

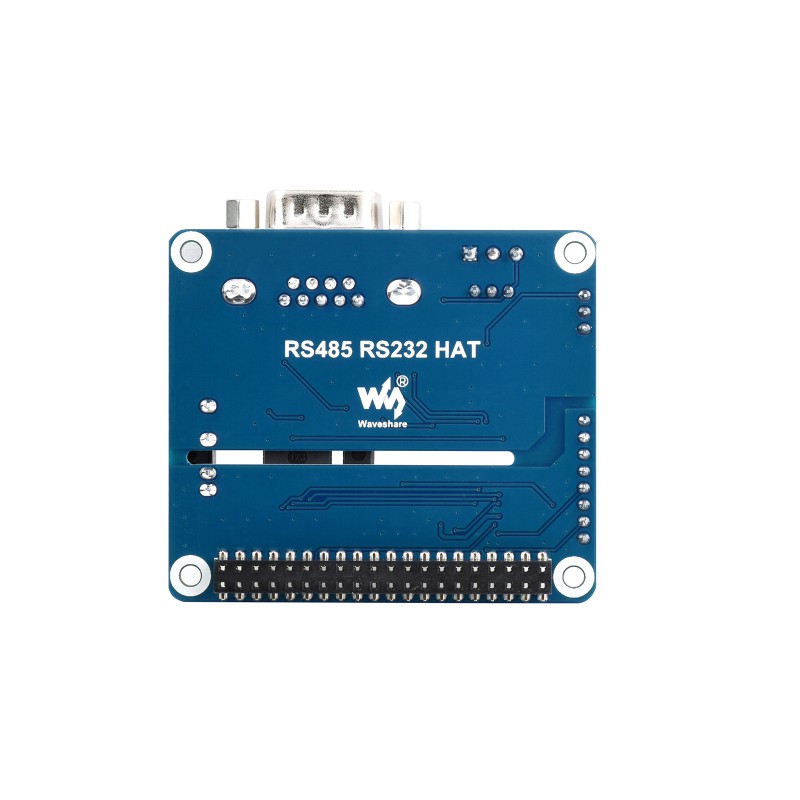

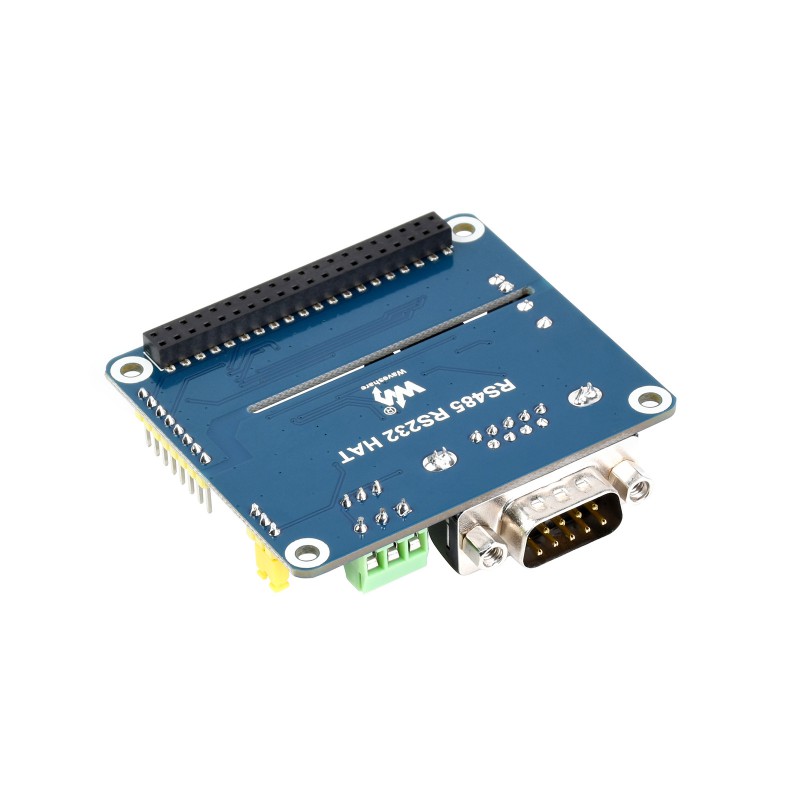

Waveshare Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control

RS485 RS232 HAT is an isolated RS485 and RS232 expansion board specially designed by Waveshare for Raspberry Pi. It adopts SC16IS752+SP3485, SP3232 scheme, built-in power isolation, ADI magnetic coupling isolation and TVS and other protection circuits.

Features:

1. Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards
2. Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps
3. RS485 supports manual or automatic sending and receiving of data, which can be set by DIP switch
4. RS485 onboard resettable fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance
5. Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity.
6. Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status
7. Lead out the SPI control interface for easy access to main control boards such as Arduino
8. Provide complete supporting information manuals (C and python sample programs and user manuals, etc.)

Specifications:

1. Serial port expansion chip: SC16IS752
2. Operating Voltage: 5V
3. RS485 transceiver： SP3485
4. RS232 transceiver： SP3232
5. Communication Interface： SPI
6. Data Rate: Up to 921600bps
7. Communication Interface: SPI
8. UART Expansion Chip: SC16IS752
9. RS485 transceiver: SP3485
10. Communication rate： 300~921600 bps
11. Operating Voltage： 3.3/5V
12. Dimension： 65mm×56.5mm
13. Via diameter： 3.0mm

Packages Includes:

1 x Waveshare Isolated RS485 RS232 Expansion HAT for Raspberry Pi, SPI Control
