Wio RP2040 mini Dev Board

Wio RP2040 mini Dev Board is a development board based on the Wio RP2040 module with wireless function, supporting MicroPython programming. It has a dual-core 133MHz RP2040 cits hip, which is a low-power microcontroller with wireless functions. With powerful performance and small size, it is a perfect option for various IoT projects development.

The board has rich interfaces, including 28 GPIO PINs (19 PINs support PIO and PWM), 2 UART, 4 ADC, 2 SPI, 2 I2C. Some pins can be multiplexed, such as GP12 and GP13 with I2C, SPI, UART functions. That’s why 28 GPIO PINs can achieve more I/O Pins and interfaces. Wio RP2040 mini wireless development board supports a USB Type-C interface, which can supply power and download code. In addition to the onboard power LED light, we also added a user-controllable LED (it is connected to the GP13 pin). A RESET button (the screen is printed as “RUN” on the board) and a BOOT button (which can be used to re-upload the firmware).

Getting Started With Wio RP2040 mini Dev Board

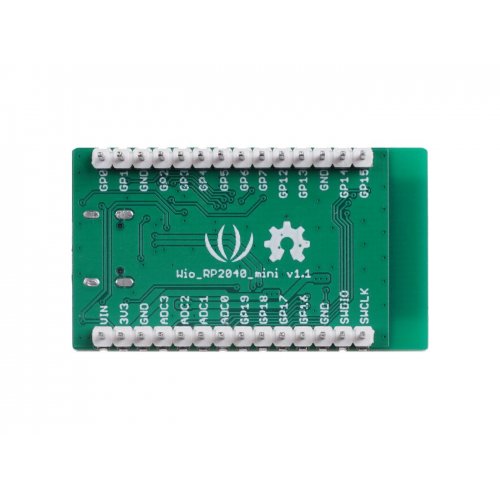

Pinout:

Features:

1. Raspberry Pi Foundation’s RP2040 microcontroller
   • Dual Cortex M0+ processors, up to 133 MHz
   • 264 kB of embedded SRAM in 6 banks
2. 2MB QSPI Flash Memory
3. On-board USB-C Connector for programming
   • USB 1.1 Host/Device functionality
4. 20x multifunctional GPIO Pins
5. 2.4GHz Wireless connectivity
   • Support IEEE802.11 b/g/n
   • Support 2.4 ~ 2.4835 GHz
   • Support Ap & Station mode
6. Buttons
   • Boot
   • Reset(RUN)
7. LEDs
   • Power
   • User-programmable LED(GP13)
8. Power Supply(2 methods)
   • 5V via USB-C port(default)
   • VIN(5V~3.6V) and GND header pins

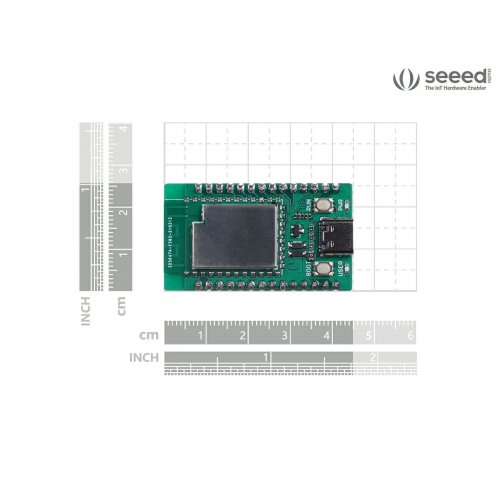

9. Dimensions: 25.8 x 45.5mm
10. Support programming languages
    • MicroPython
    • C/C++

Application:

1. Various Pico projects with wireless functions
2. Wireless control
3. Smart homes
4. Smart toys

Package Includes:

1 x Wio RP2040 mini Dev Board
