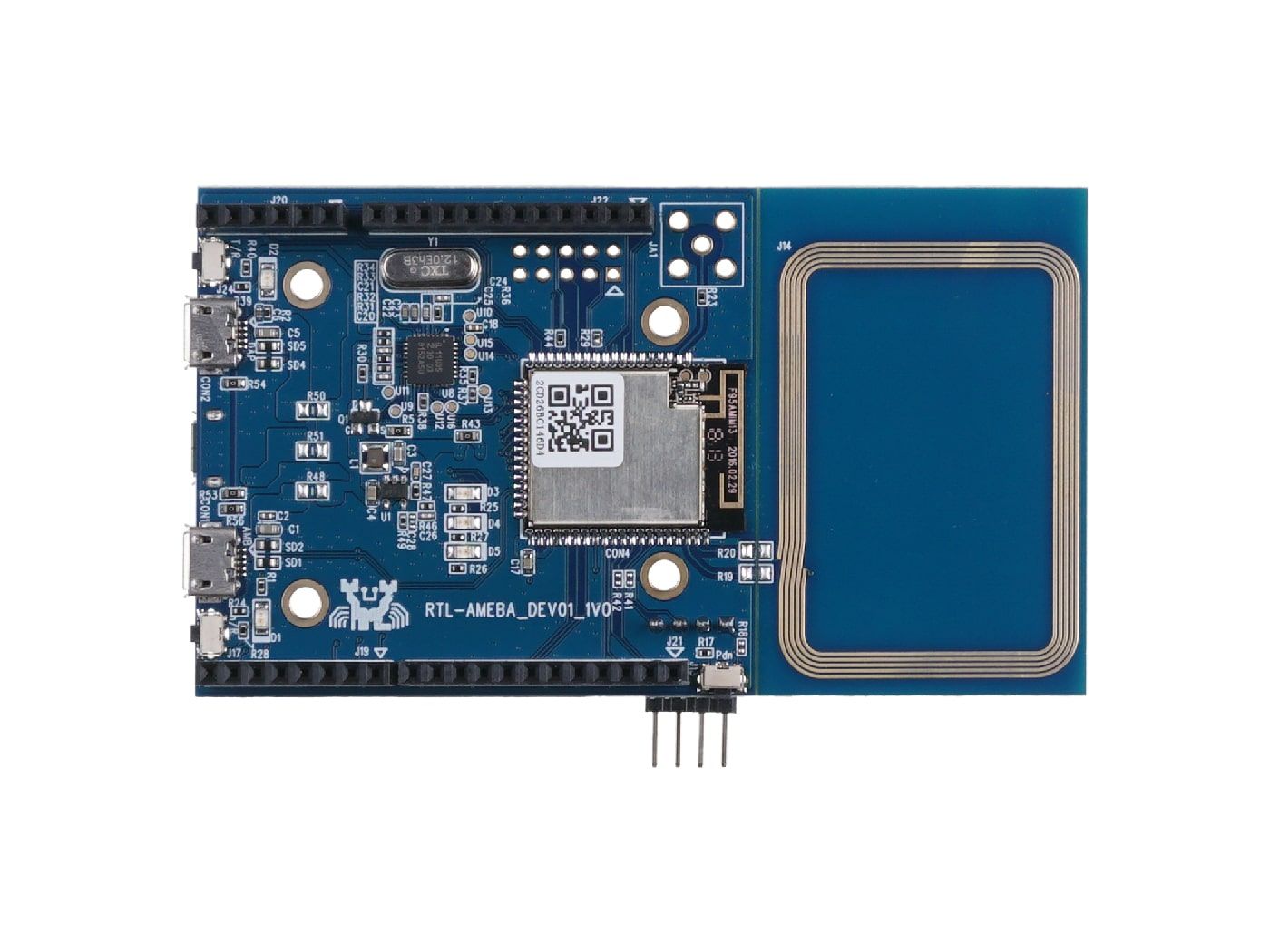

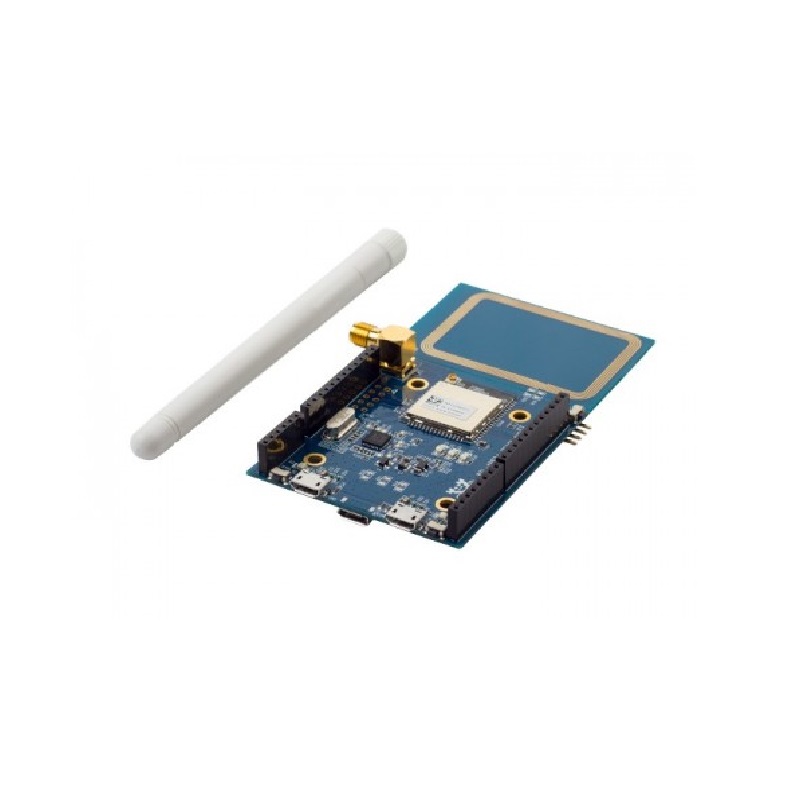

Ameba RTL8195 Arduino Wireless Board

Ameba is an Arduino-compatible development board for the internet of things, besides WiFi connectivity, it also includes an NFC tag, and can support Ethernet via Arduino compatible headers. The brain of the board is Realtek RTL8195AM ARM Cortex M3 MCU that includes WiFi connectivity, hardware SSL, SRAM, and flash. It provides the optimal solution for the maker community and Quadcopter, Solar Energy system, Sensor Environment, automation solutions and etc.

Getting Started with Realtek Ameba RTL8195 Arduino Wireless Board

Features:

1. SDIO Device/SD card controller
2. Hardware SSL engine
3. Maximum 30 GPIOs
4. 2 SPI Interfaces and support both master and slave mode
5. 3 UART Interfaces including 2 HS-UART and one log UART
6. 4 I2C Interfaces and support both master and slave mode
7. 2 I2S/PCM Interfaces and support both master and slave mode
8. NFC Tag with reading/Write Function
9. 4 PWM interfaces
10. 2 ADC interfaces
11. 1 DAC interfaces

Package Includes :

1 x Ameba RTL8195 Arduino Wireless Board
