DFRobot Gravity: 360 Degree Rotary Encoder Module

This looks like a potentiometer, but it’s an encoder switch.

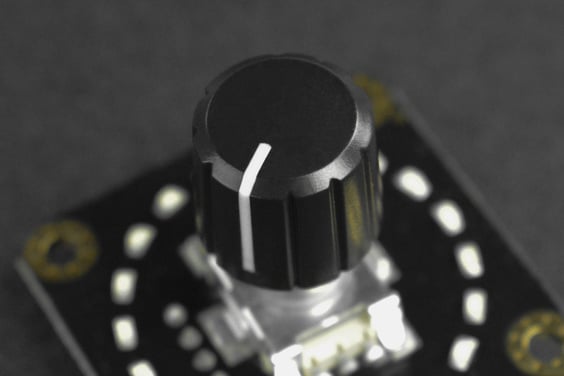

It is a cascadable 360 ° rotary encoder switch with 20 pulses per revolution, and each pulse corresponds to a detent. There are LED lights set for each detent to allow users visually check the real-time status of the encoder.

For ease of use, the module is designed with I2C data output and configurable accuracy within 1~51 for every detent (set in the program). For instance, when it is set to 1, turn on one LED light by rotating 2.5 revolutions; when set to 51, then one LED light can be switched on by rotating one detent.

In order to apply to more scenarios, the encoder is equipped with a cascade function that enables to control of multiple output devices by occupying only one I2C interface, such as, simultaneously controlling light brightness, color, volume, speed, etc.

Applications:

Application Field

• Automotive electronics
• Multimedia speaker
• Instruments and Apparatuses
• Smart home

Application Case

• Volume adjustment
• Fire regulation
• Speed regulation
• Light adjustment

Features:

1. Pluggable cascade
2. I2C Data output, forward to increase, reverse to decrease
3. Onboard LED detent indicator
4. Allow setting 4 different I2C addresses by address switch

Specifications:

1. Operating Voltage: 3.3V~5V
2. Total Rotating Angle: 360°
3. Pulses Per Revolution: 20
4. Interface: two Gravity connectors; I2C
5. Cascadable Device Number: 4
6. Rotation Lifespan: 30000±200 Cycles
7. Contact Resistance: ≤100mΩ
8. Insulation Impedance: 100MΩ above
9. Oscillation: ＜10ms press
10. Operating Temperature: -30℃~+80℃
11. Accuracy: 1~51
12. Minimum Settable Value: 1(Light up one LED when rotating 2.5 turns)
13. Maximum Settable Value: 51(Light up one LED when rotating 1 detent)
14. Storage: 0~1023
15. Dimension: 37*37mm/1.46*1.46”

Package Includes:

1 x Gravity: Rotary Encoder Module

1 x Gravity I2C/UART Sensor Connector
