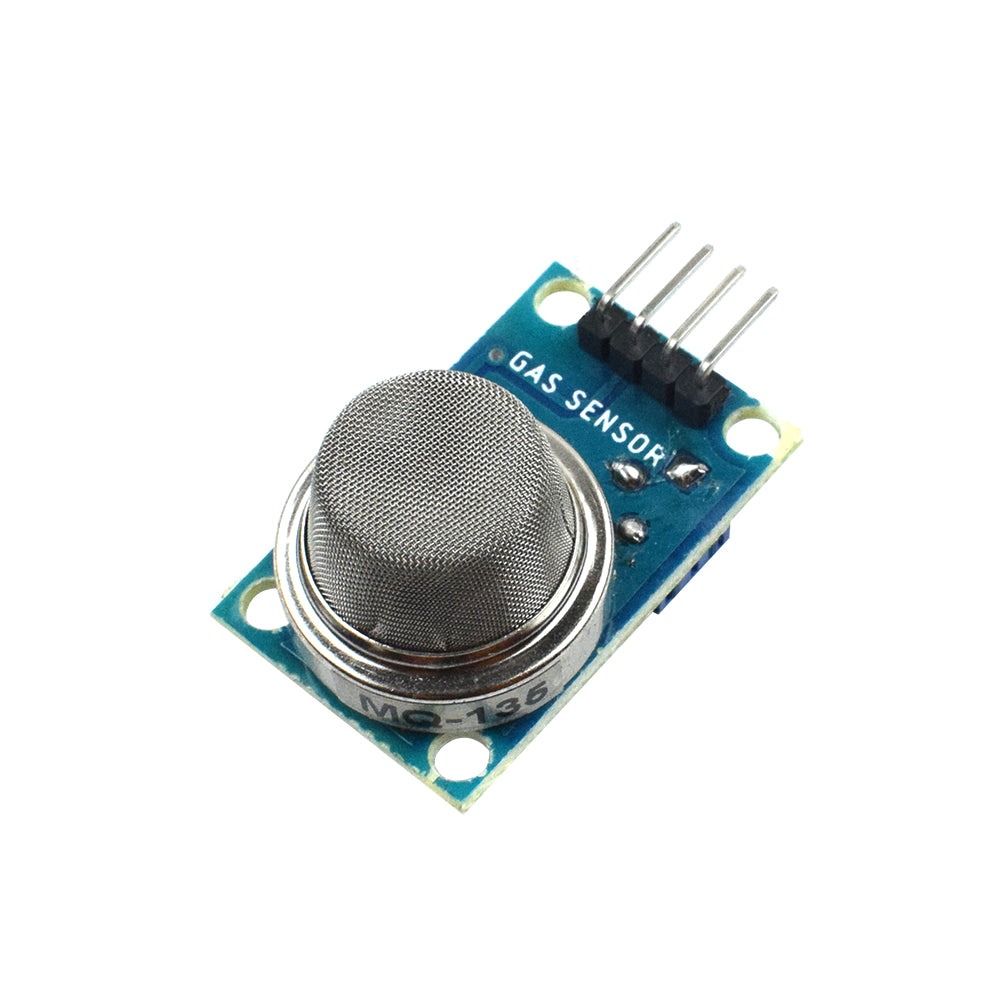

MQ-135 Gas Sensor Module

SKU: RZ24336360 Category: Sensors

₹ 170.20

Out of Stock

Buy MQ-135 Gas Sensor Module online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 166.80
11 – 30	3%	₹ 165.09
31 – 50	4%	₹ 163.39
51 – 100	5%	₹ 161.69

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Sensors

Subcategory Sensors (General)

SKU RZ24336360

MQ135 gas sensor module for air quality with digital and analog output. The sensitive material of the MQ135 gas sensor is SnO2, which has a lower conductivity in clean air. When the target combustible gas is present, the conductivity of the sensors increases as the concentration of the gas increases. The MQ135 gas sensor is very sensitive to ammonia and benzene vapors, as well as smoke and other harmful gases. It is affordable and suitable for various applications. Used for family, ambient harmful gas detection, use for ammonia, aromatics, sulfur, benzene vapor and other harmful gases, gas detection

Features:

Fast response and recovery
Adjustable sensitivity
Stable, long life and low cost
Both digital and analog output
Output voltage boosts along with the concentration of the CO gases increases.

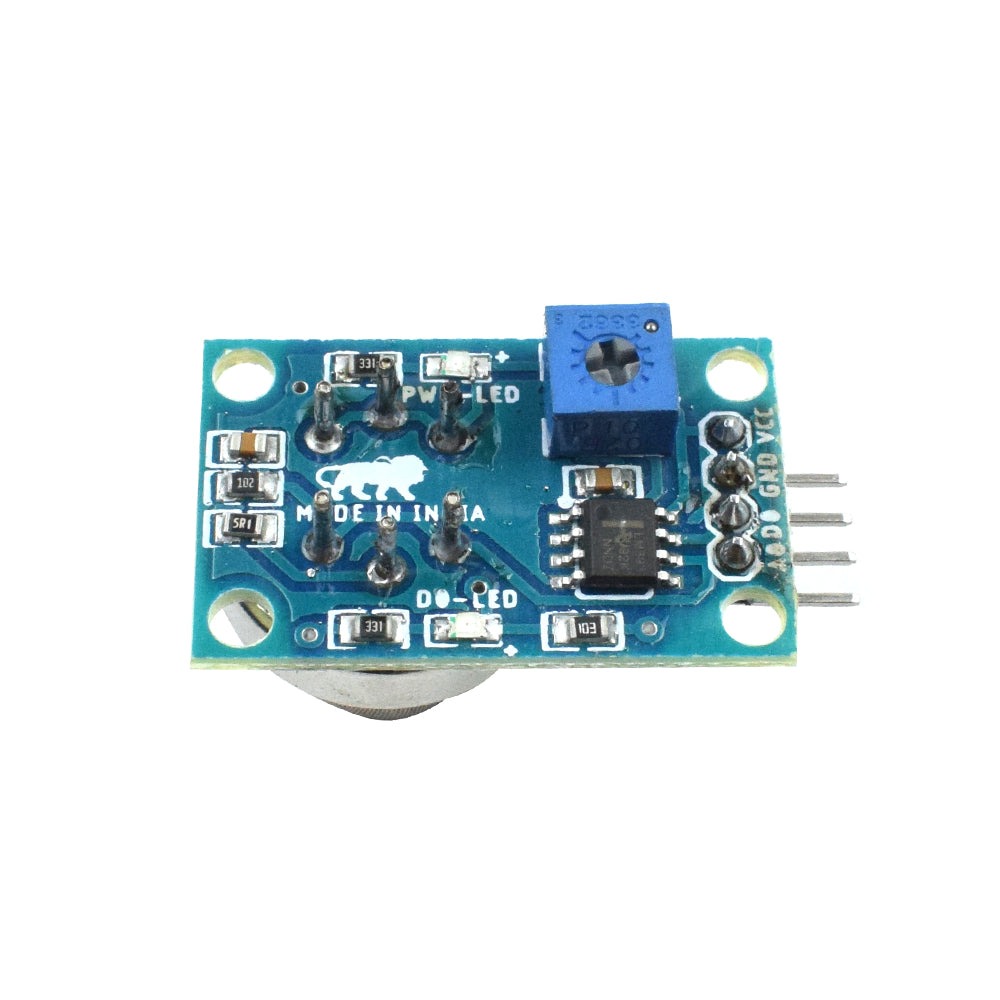

AO for analog output, DO for digital output, GND for ground, VCC for 5V voltage input.
Its made in India
It has four holes for mounting purpose and the diameter of holes are 3.5mm

Specifications

Model	MQ-135
Type	Gas Sensor Module
Input voltage	5V DC
Range	10-1000ppm
Current	150mA
Make	India
Dimensions	37x20x20mm
Temperature	-10°C to +50 ° C
Country of Origin	China
