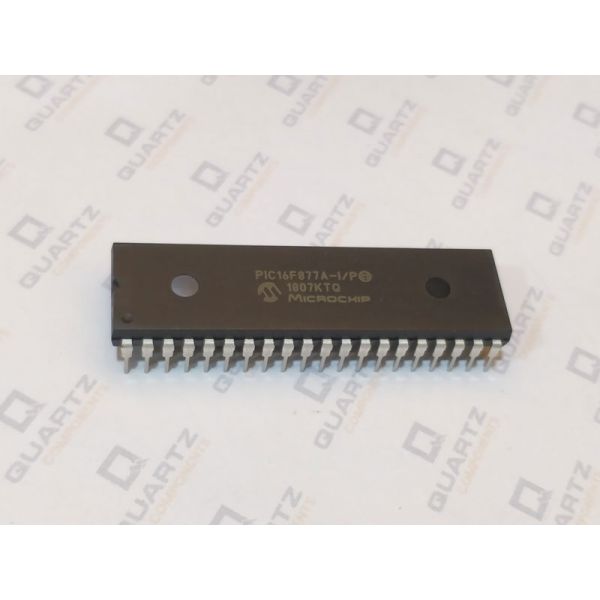

PIC16F877A 8-bit PIC Microcontroller

PIC16F877A is the most commonly used entry-level 8-bit PIC Microcontroller. It is a 40-pin 8-bit Microcontroller with 14kB of program memory. It does not have an internal oscillator but can work up to 20MHz with external oscillators. The controller has 8 ADC channels with 10-bit resolution and also supports PWM on 2 pins. It has two 8-bit timers and one 16-bit timer and supports communication protocols like UART, SPI, and IIC. You can also check other PIC microcontroller Components.

PIC16F877A Features & Specifications

• CPU: 8-bit PIC
• Architecture: 8
• Program Memory Size (Kbytes): 14
• RAM (bytes): 368
• EEPROM/HEF: 256/HEF
• CPU Speed (MHz): 20
• Peripheral Pin select (PPS): No
• Internal Oscillator: No
• Of comparators: 2
• Of Operational Amplifier: 0
• Of ADC channels: 14
• Max ADC Resolution (bits): 10
• ADC with Computation: No
• Number of DAC Converter: 0
• Of 8-bit timers: 2
• Of 16-bit Timers: 1
• Of PWM outputs: 0
• Max PWM resolution: 10
• Of UART module: 1
• Of SPI Module: 1
• Of I2C module: 1
• Of USB Module: 0
• Minimum Operating Voltage (V): 2
• Maximum Operating Voltage (V): 5.5

Programming PIC Microcontroller

To program the PIC microcontroller you will need an IDE (Integrated Development Environment, a compiler, and an IPE (Integrated Programming Environment).

IDE: MPLABX v3.35

IPE: MPLAB IPE v3.35

Compiler: XC8

Microchip has given all these three software for free. They can be downloaded directly from their official page.

Additional Resources:

• Getting started with PIC16F877A
• PIC16F877A Datasheet
• How to Program PIC16F877A
