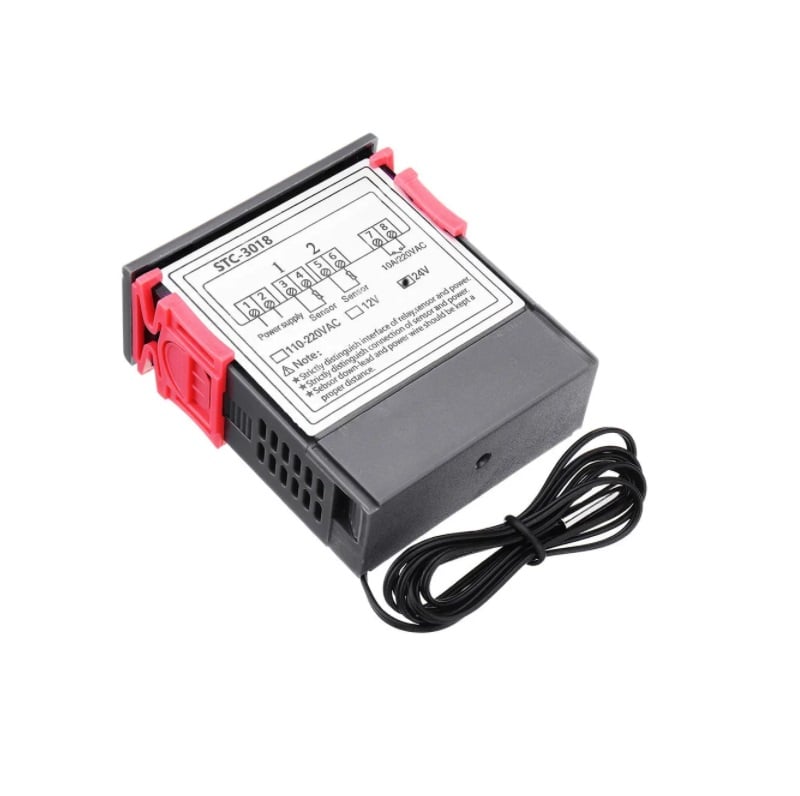

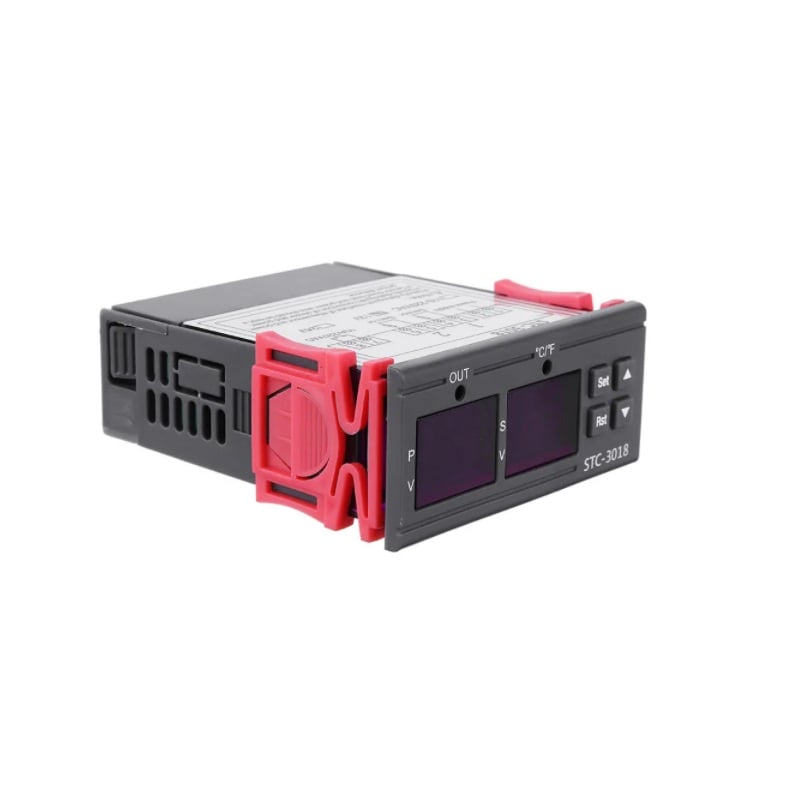

STC-3018 DC12V Dual Display Dual Temperature Adjustable Temperature Controller with 1M Cable

STC- 3018 DC12V Dual Digital Temperature Controller Thermostat is a Hygrometer C / F Thermostat. It has a Power supply input of  12V DC. 5. It has an application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc.

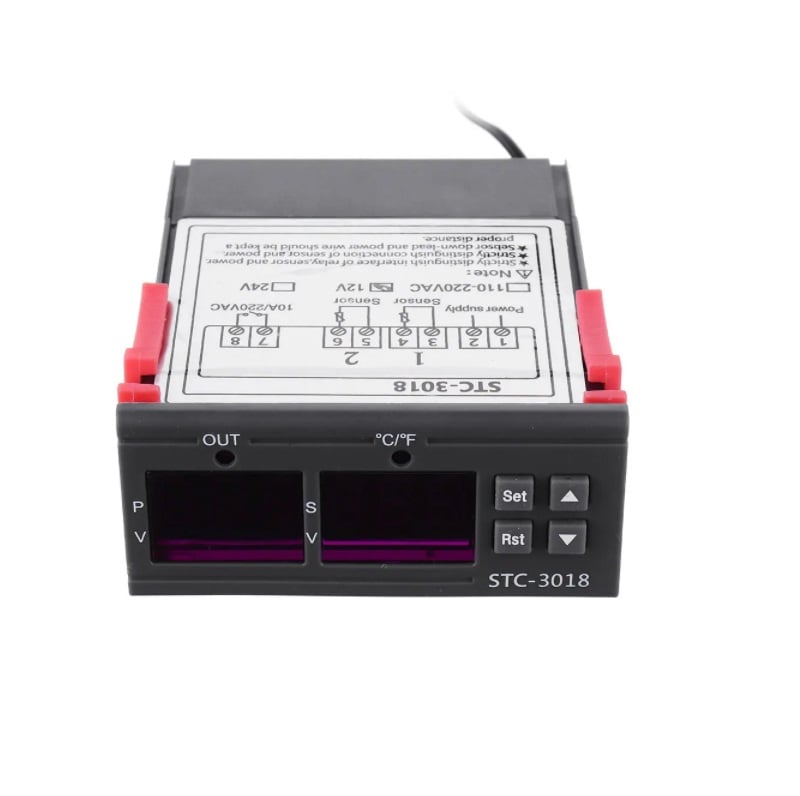

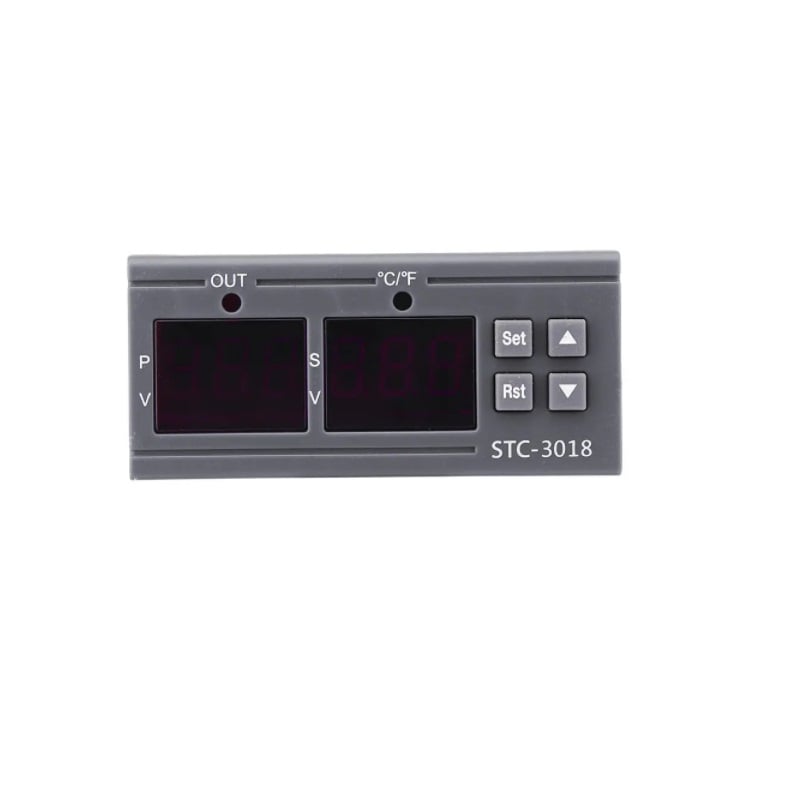

Normal mode: The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature. Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents.

How to set the start or stop temperature:

1. Press the “SET” button once and the screen flashed, Press the “up” and “Down” button to set the temperature.
2. Long press  “SET”button for 5 seconds to enter set Mode:

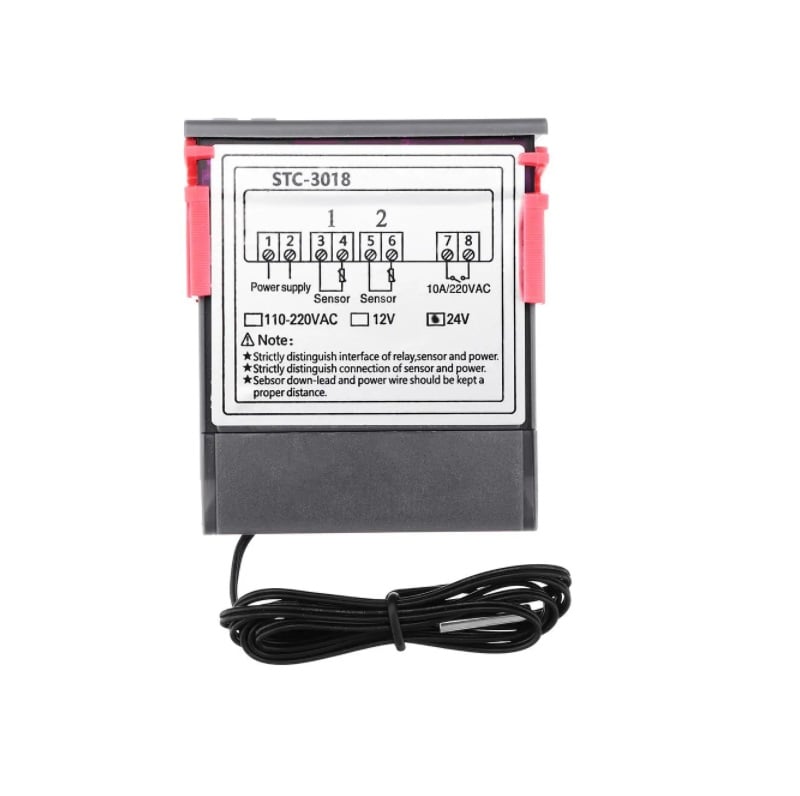

Wiring  Diagram

Note: Product may vary from Images shown in terms of body and cable color according to the availability

---

Features:

1. Heating or cooling control. Red and blue dual led display 2. Control mode of return difference; Temperature display resolution 0.1 3. Multiple alarm mode selection; Switch between ° C and °F 4. Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid

---

Package Includes:

1 x STC- 3018 DC12V Dual Digital Temperature Controller Thermostat
1 x  Waterproof Sensor (Attached)
