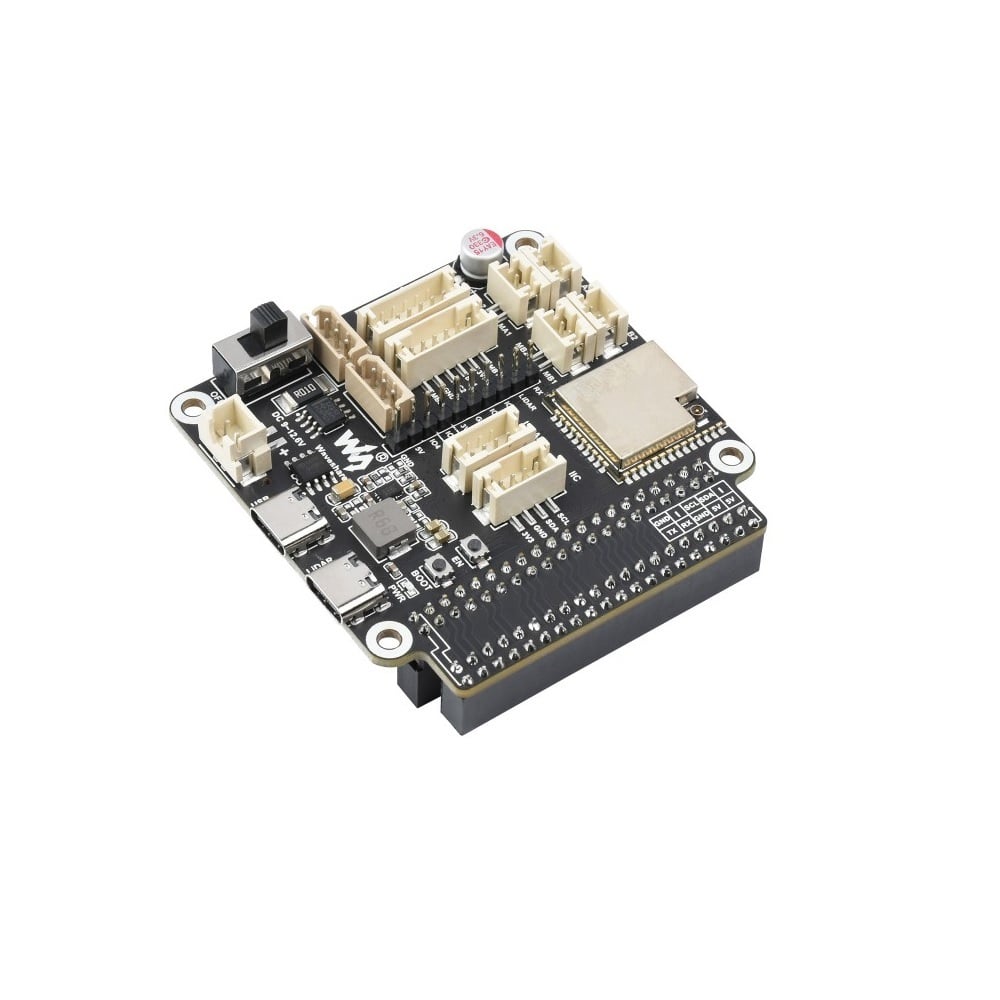

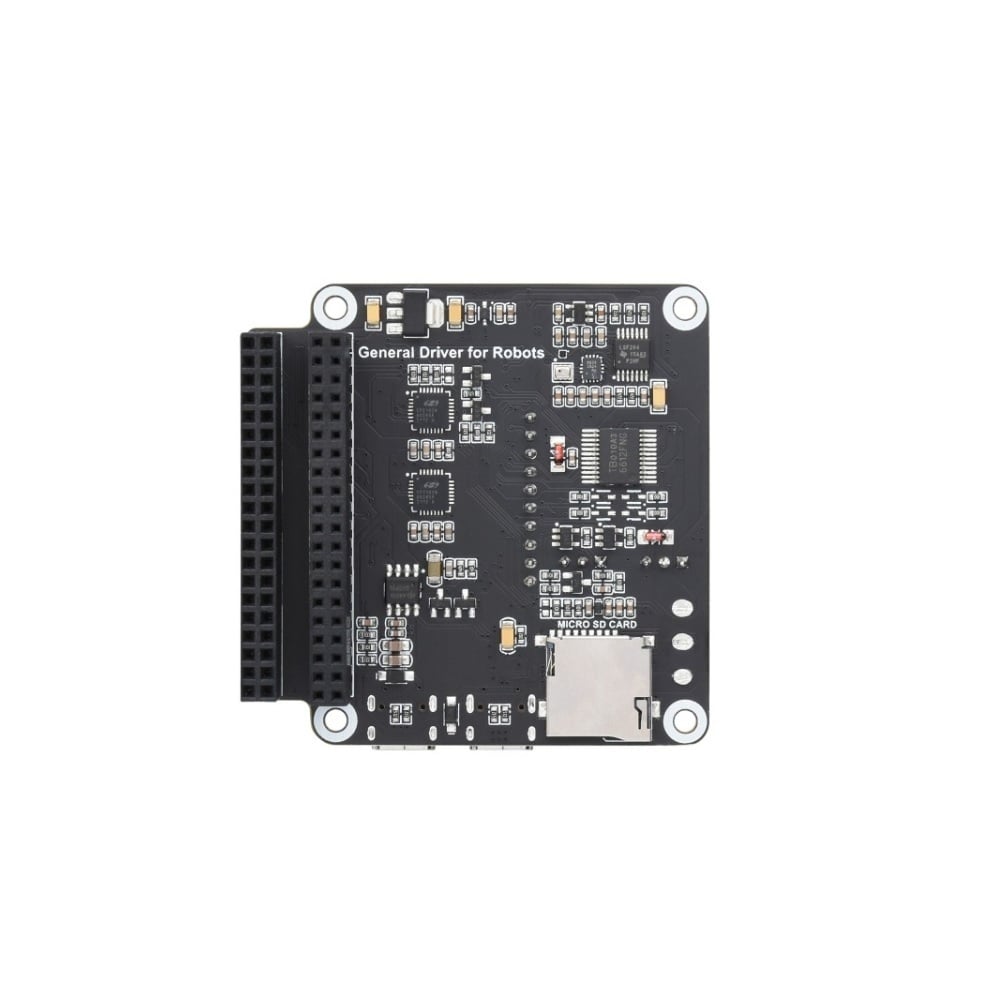

Waveshare General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications
🔍 Zoom

Waveshare General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications

SKU: RZ2435433 Brand: Waveshare Category: Motors & Actuators
₹ 3,276.35
Out of Stock

Buy Waveshare General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications online, Order today to get

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 3,210.82
11 – 30 3% ₹ 3,178.06
31 – 50 4% ₹ 3,145.30
51 – 100 5% ₹ 3,112.53

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Brand Waveshare
Subcategory DC Motor Drivers
SKU RZ2435433

Waveshare General Driver board for Robots, Based on ESP32, multi-functional, supports WIFI, Bluetooth and ESP-NOW communications

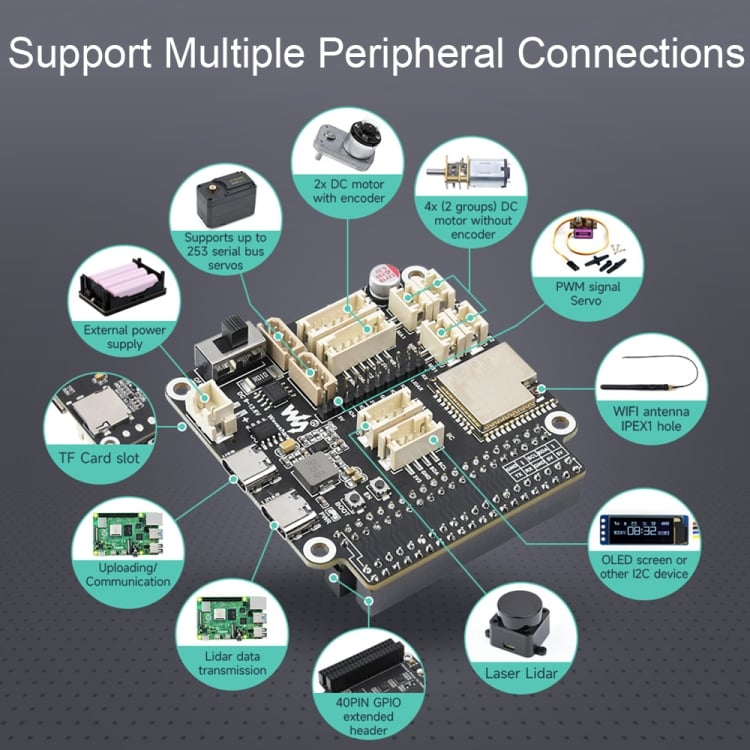

Features:

  1. Based on the ESP32-WROOM-32 module, supports wireless communication such as WIFI, Bluetooth and ESP-NOW
  2. Onboard motor control interfaces for 2x DC motor with encoder or 4x DC motor (2 groups) without encoder
  3. Onboard serial bus servos control interfaces for controlling up to 253 ST3215 serial bus servos and obtaining servos feedback
  4. Onboard 9-axis IMU to obtain attitude and heading information at any time
  5. Supports 7~13V power input, and can be powered directly by 2S or 3S lithium battery module
  6. Automatic download circuit for easy uploading programs
  7. Support input voltage/current monitoring
  8. Onboard TF card slot
  9. Onboard Laser Lidar interface and integrated UART to USB function
  10. I2C interface for connecting peripherals such as OLED, IMU, and other I2C devices
  11. Adapting Multi-functional extended header for additional functions, such as controlling servos or relays
  12. Onboard 40PIN GPIO header for connecting and powering the host computer (Raspberry Pi/Jetson Nano, etc), communicating via serial port or I2C
  13. Provides open-source demos and detailed tutorials for beginners, easy to get started

Package Includes:

1 x Waveshare General Driver board for Robots

1 x Screws and Stand-off Set





welcome

welcome

You May Also Like

View all →

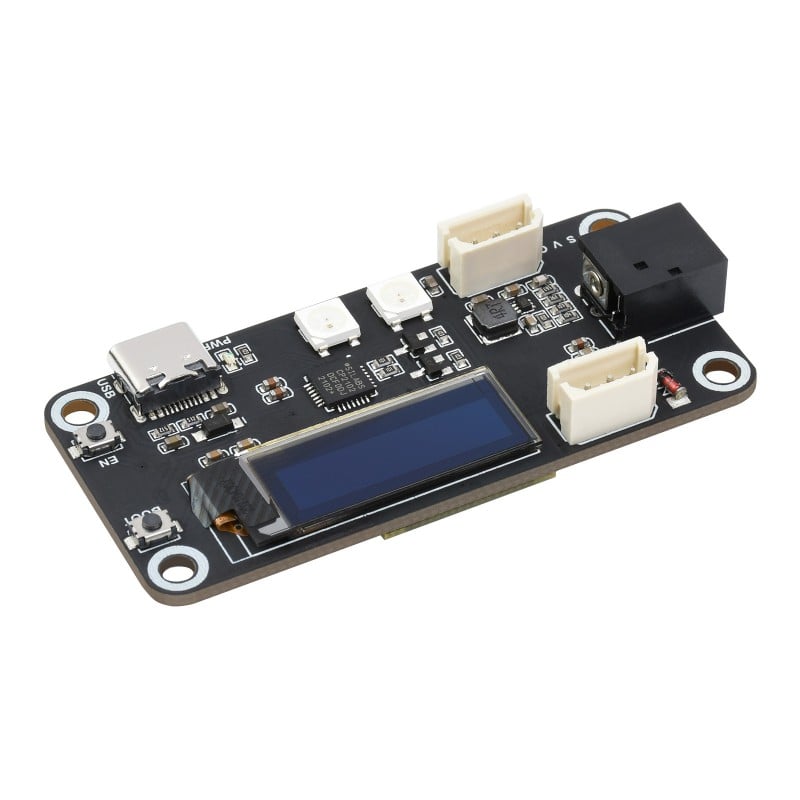

Waveshare ESP32 Servo Driver Expansion Board, Built-In Wi-Fi and Bluetooth
