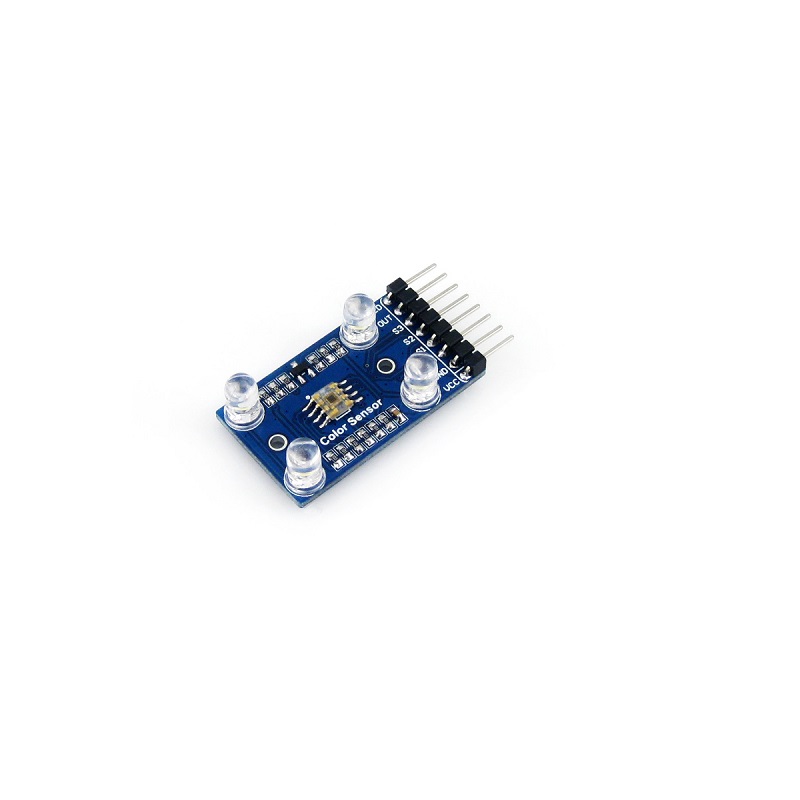

Waveshare TCS3200 Color Sensor

The TCS3200 sensor is a color sensor. This TCS3200 Color Recognition Sensor is a high-quality light sensor allowing you to sense any color through a combination of Red, Green, and Blue. Its output is a square wave with frequency directly proportional to incident light intensity. This module can be directly interfaced with Microcontrollers, Arduino Boards, Raspberry Pi, etc.

  Connections

VCC ↔ 2.7V ~ 5.5V

GND ↔ power supply ground

LED ↔ MCU.IO (controlling the 4 white LEDs)

OUT ↔ MCU.IO (RGB color output frequency)

S0/S1 ↔ MCU.IO (Output frequency scaling selection inputs)

S2/S3 ↔ MCU.IO (Photodiode type selection inputs)

Application:

1. Sorting by color
2. Ambient light sensing and calibration
3. Test strip reading
4. Color matching

If you want to explore some more Color Sensors, then click on this Link COLOR SENSOR

Features:

1. High-Resolution Conversion of Light Intensity to Frequency
2. Programmable Color and Full-Scale Output Frequency
3. Power Down Feature
4. Stable Temperature Coefficient

Package Includes:

1 x Waveshare TCS3200 Color Sensor
