ZMPT101B AC Single Phase Voltage Sensor Module

SKU: RZ24339204 Brand: Arduino Category: Sensors

₹ 126.50

Out of Stock

Buy ZMPT101B AC Single Phase Voltage Sensor Module online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 123.97
11 – 30	3%	₹ 122.71
31 – 50	4%	₹ 121.44
51 – 100	5%	₹ 120.18

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand Arduino

Category Sensors

Subcategory Sensors (General)

SKU RZ24339204

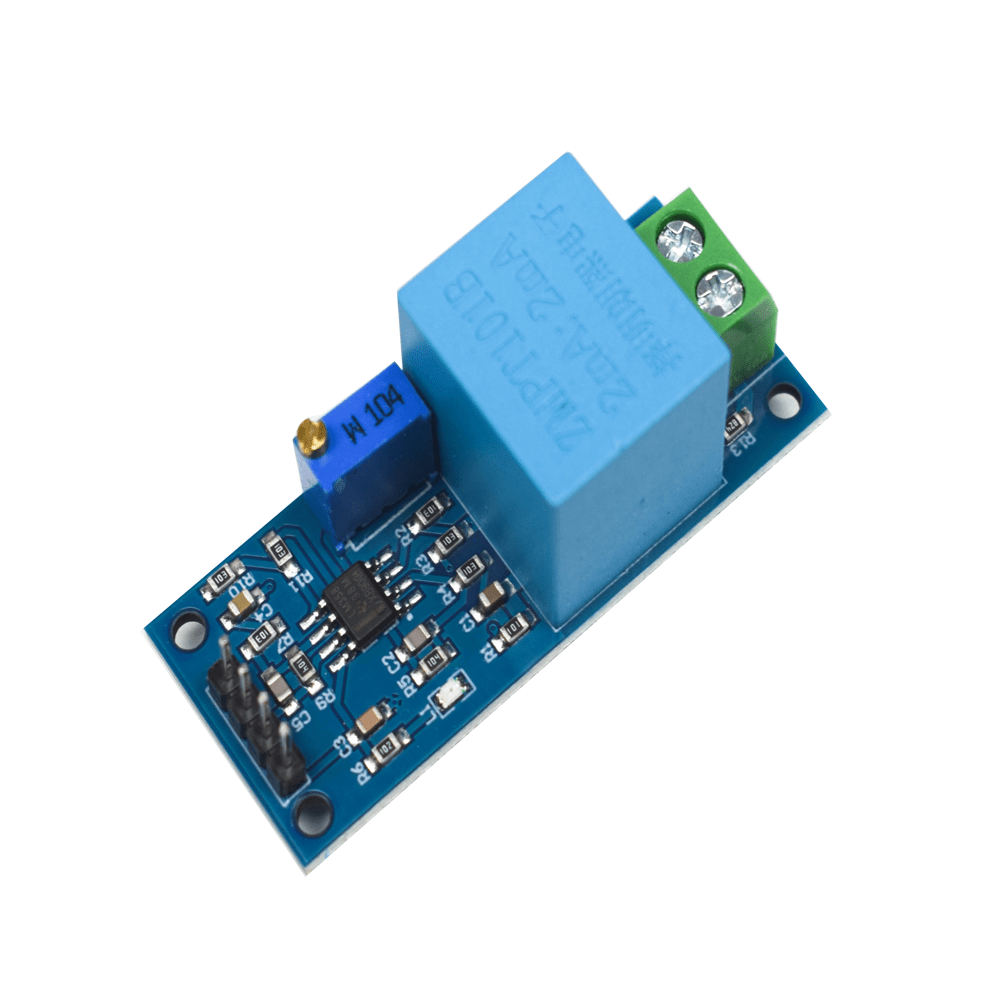

This is an AC Single Phase Voltage Sensor Module. The ZMPT101B AC Voltage Sensor is ideal for DIY projects requiring accurate AC voltage measurement using a voltage transformer. This is an excellent choice for measuring AC voltage using an open-source platform such as Arduino/ESP8266/Raspberry Pi. This module can be measured within 250V AC voltage; the connected analog output can be adjusted.

Pinout

Pin 1 & 2 (AC Source)
Pin 3,4,5,6 (VCC, OUT, GND, GND)

Specifications

Product	ZMPT101B
Type	AC Single Phase Voltage Sensor Module
No. of Pins	06
Measured Voltage	Up to 250
Supply Voltage	5-30V
Operating temperature	40ºC ~ + 70ºC
Dimensions	51mm21mm20mm
Make	Made in India
Country of Origin	China
