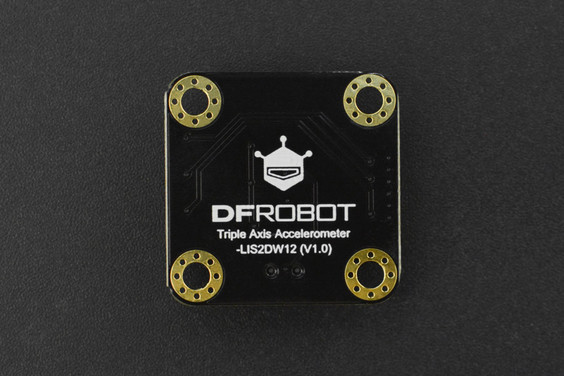

DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor (?2g/?4g/?8g/?16g)

The DFRobot Gravity I2C LIS2DW12 Triple Axis Accelerometer Sensor is an ultra-low-power high-performance three-axis linear accelerometer. It has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz.

The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wake-up for smart power saving, etc. And for your convenience, we provide you with sample programs for the above functions.

Features:

1. User-selectable scale: ±2g/±4g/±8g/±16g
2. 16-bit data output
3. Easy-to-use Gravity interface, no need to solder

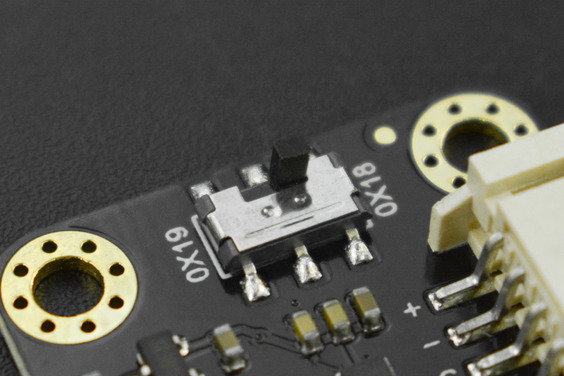

4. Change I2C address by the toggle switch

Specifications:

1. Operating Voltage: 3.3V~5V
2. Operating Current: 8~10uA(low-power & low-noise mode)/0.12mA(high performance mode)
3. Interface: Gravity-I2C
4. I2C Address: 0x19 (default) / 0x18 (optional)
5. User-selectable Scale: ±2g/±4g/±8g/±16g
6. Operating Temperature: -40℃~+85℃
7. Frequency: 1.6Hz~1600Hz
8. Ultra-low Noise: 1.3mgRMS(low power mode)
9. 16-bit Data Output
10. 32-Level FIFO(First-in first-out buffer zone)
11. Sleep to Wake-up Function
12. 10000g High Shock Survivability
13. ECOPACK, RoHS and “Green” Compliant

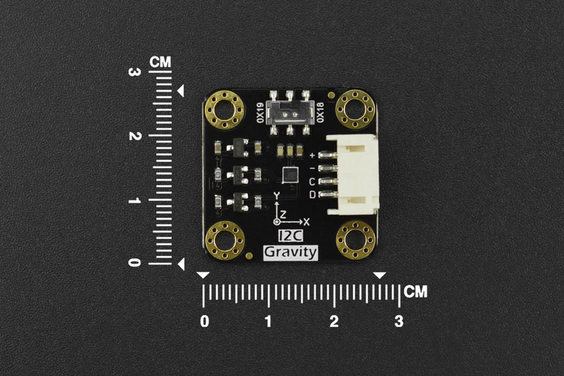

14. Module Size: 27*27mm/1.06*1.06
15. Mounting Hole Size: inner 3.1mm/outer 6mm

Useful Links:

Product wiki

Package Includes:

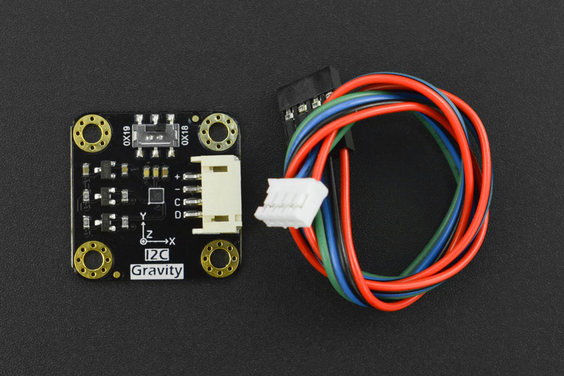

1 x Gravity: I2C LIS2DW12 Triple Axis Accelerometer Sensor

1 x Gravity-4P I2C/UART Sensor Connector
